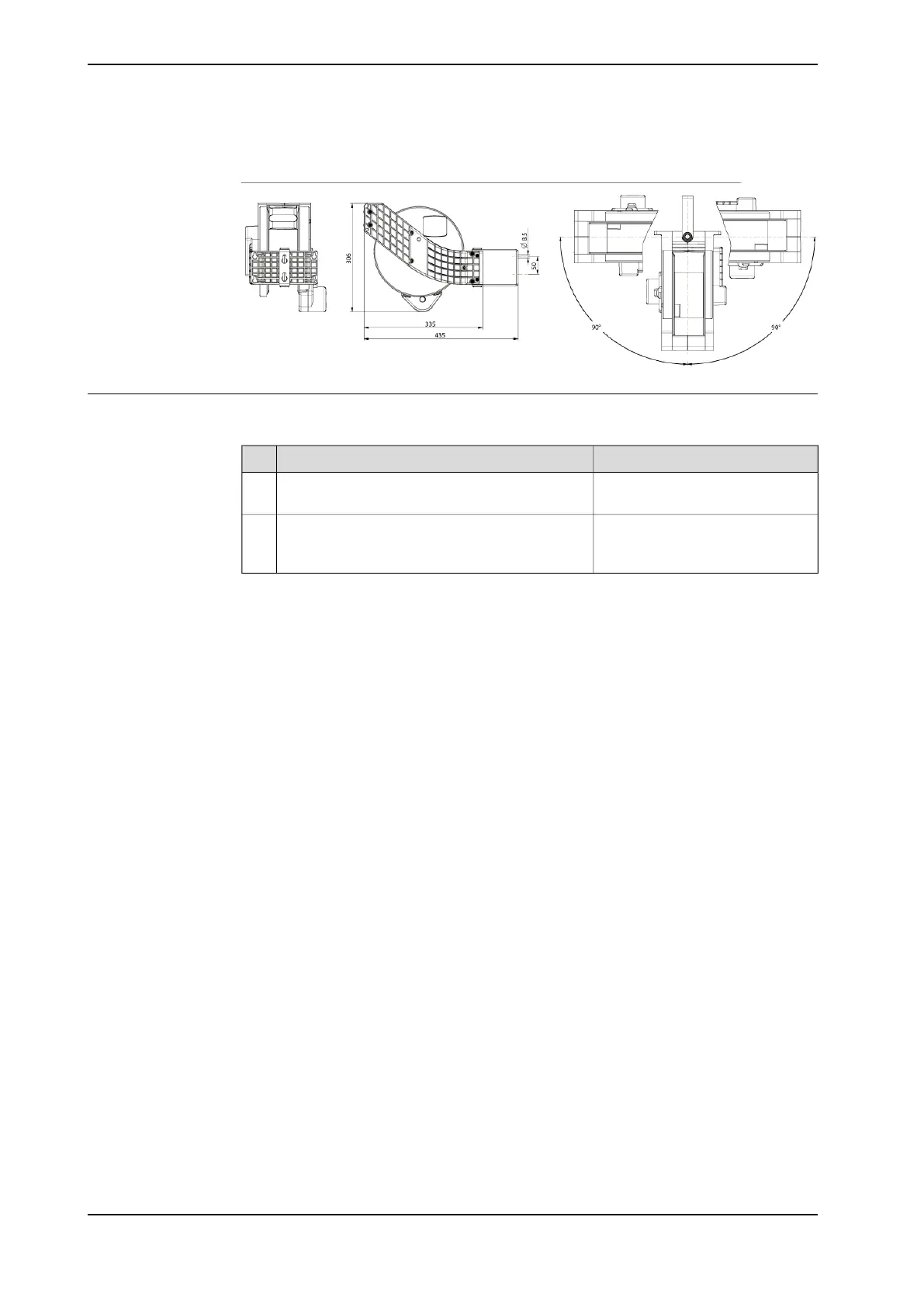

Dimensions, paint version
Installing the bracket
Use this procedure to install the bracket holding the FlexPendant Retractable Cable.
NoteAction
Center distance of the holes: 50
mm
Make holes for the bracket screws.1
Continue with connecting the
cables, see Connecting the cables
on page 23.
Hold the FlexPendant Retractable Cable bracket
in place and secure it with the screws.
2
22 Product manual - FlexPendant Retractable Cable
3HAC048816-001 Revision: B
© Copyright 2015-2016 ABB. All rights reserved.
2 Installation
2.2 Installing the bracket for paint robots
Continued
