2.2 Installing the bracket for paint robots
Introduction
The bracket holding the retractable cable unit should be installed in a location that
is suitable for your robot cell. ABB does not recommend installing it on the robot
controller cabinet.
The size and quality of the attachment screws depend on the installation place.
For information about the bracket for standard robots, see Installing the bracket
for standard robots on page 19.
Note

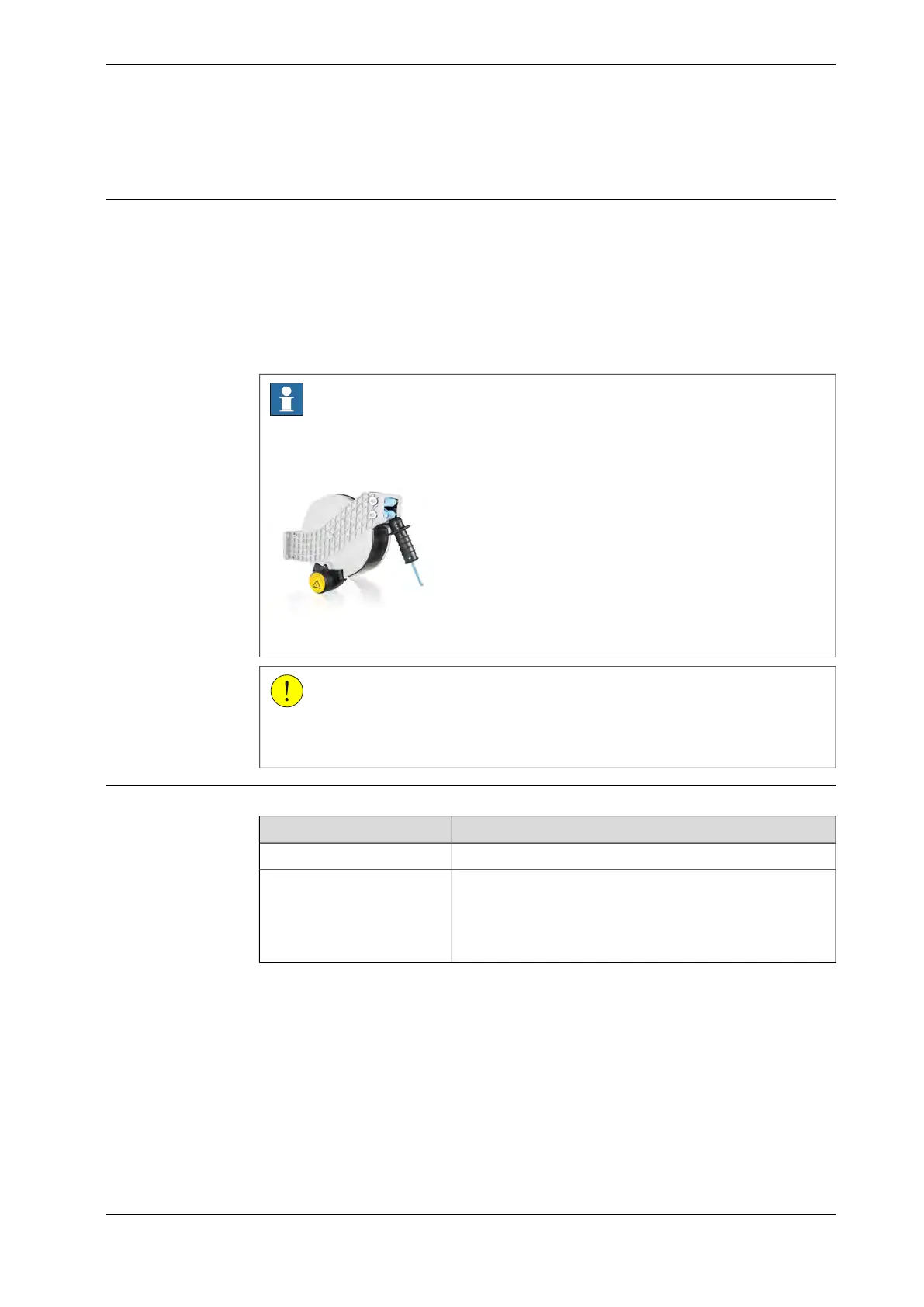

The retractable cable unit must be installed vertically with the cable outlet at the
top and the connection cable to the controller pointing down, see figure.
xx1600000629
CAUTION
The retractable cable unit must be installed outside the paint booth.
The grounding cable must be connected.
Required equipment
NoteEquipment
Retractable cable unit
2 piecesAttachment screws and
washers
The screw holes in the bracket has a diameter of 8 mm. ABB
recommends using M8 socket head cap screws and wide
flat washers. Screws and washers are not included in the
delivery.
Continues on next page
Product manual - FlexPendant Retractable Cable 21
3HAC048816-001 Revision: B
© Copyright 2015-2016 ABB. All rights reserved.
2 Installation
2.2 Installing the bracket for paint robots
