ABB FlexPendant - Replacing the Cable Stopper

4.2 Replacing the cable stopper
Introduction
The cable stopper prevents the cable from retracting too far. The cable stopper
should be replaced if damaged.
The position of the cable stopper can be modified.
xx1600000688
xx1300002382

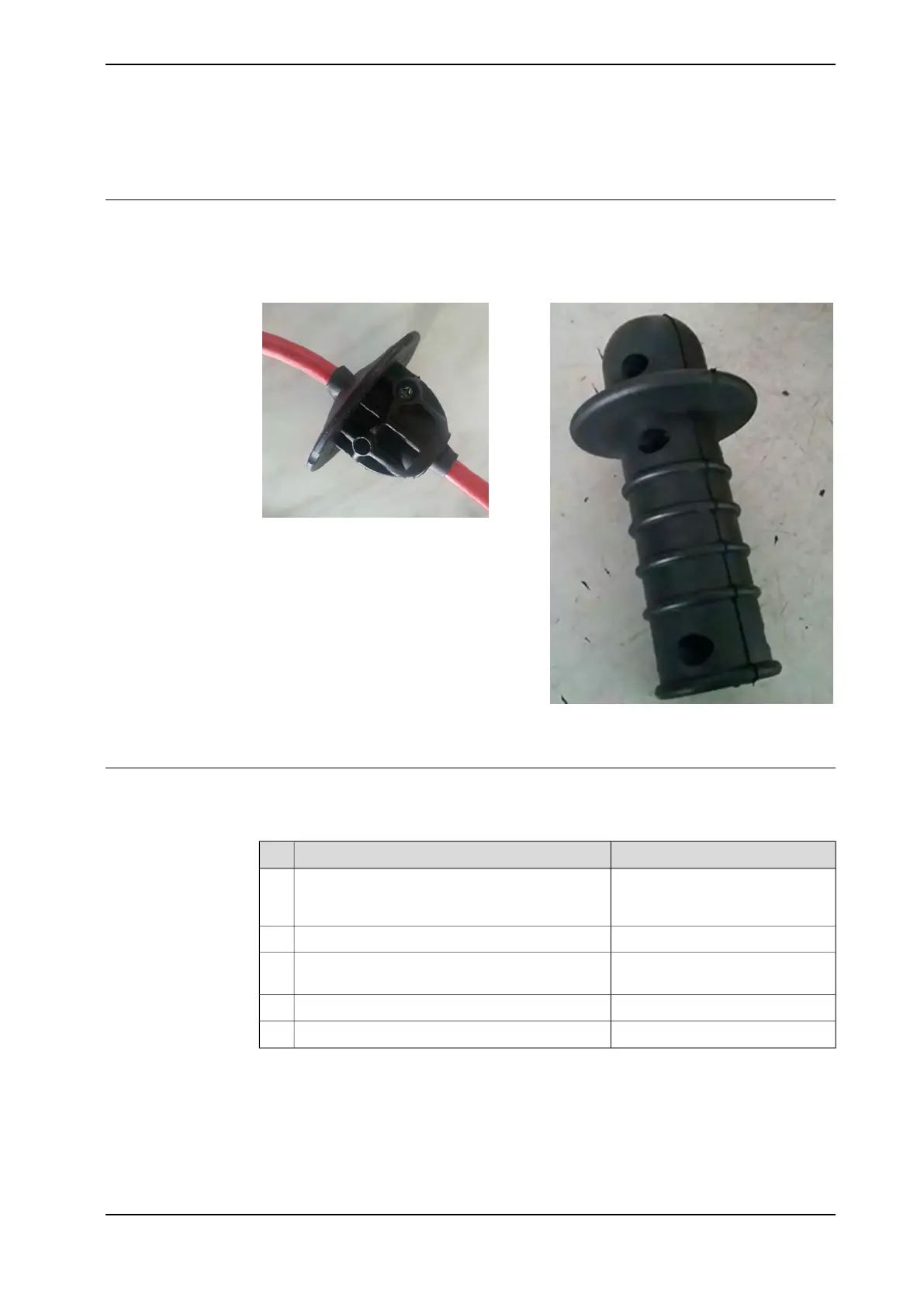

Cable stopper for standard robots
Cable stopper handle for paint robots
Replacing the cable stopper
Use this procedure to replace the cable stopper on the FlexPendant Retractable
Cable.
NoteAction
Retract the cable leaving approximately 50 cm
pulled out, to make the cable stopper easily ac-
cessible.
1
Remove the screws holding the cable stopper.2
Pull the pieces apart and remove the cable stop-
per.
3
Assemble the new cable stopper around the cable.4
Safety the cable stopper with the screws.5
