NoteAction
xx1300002382

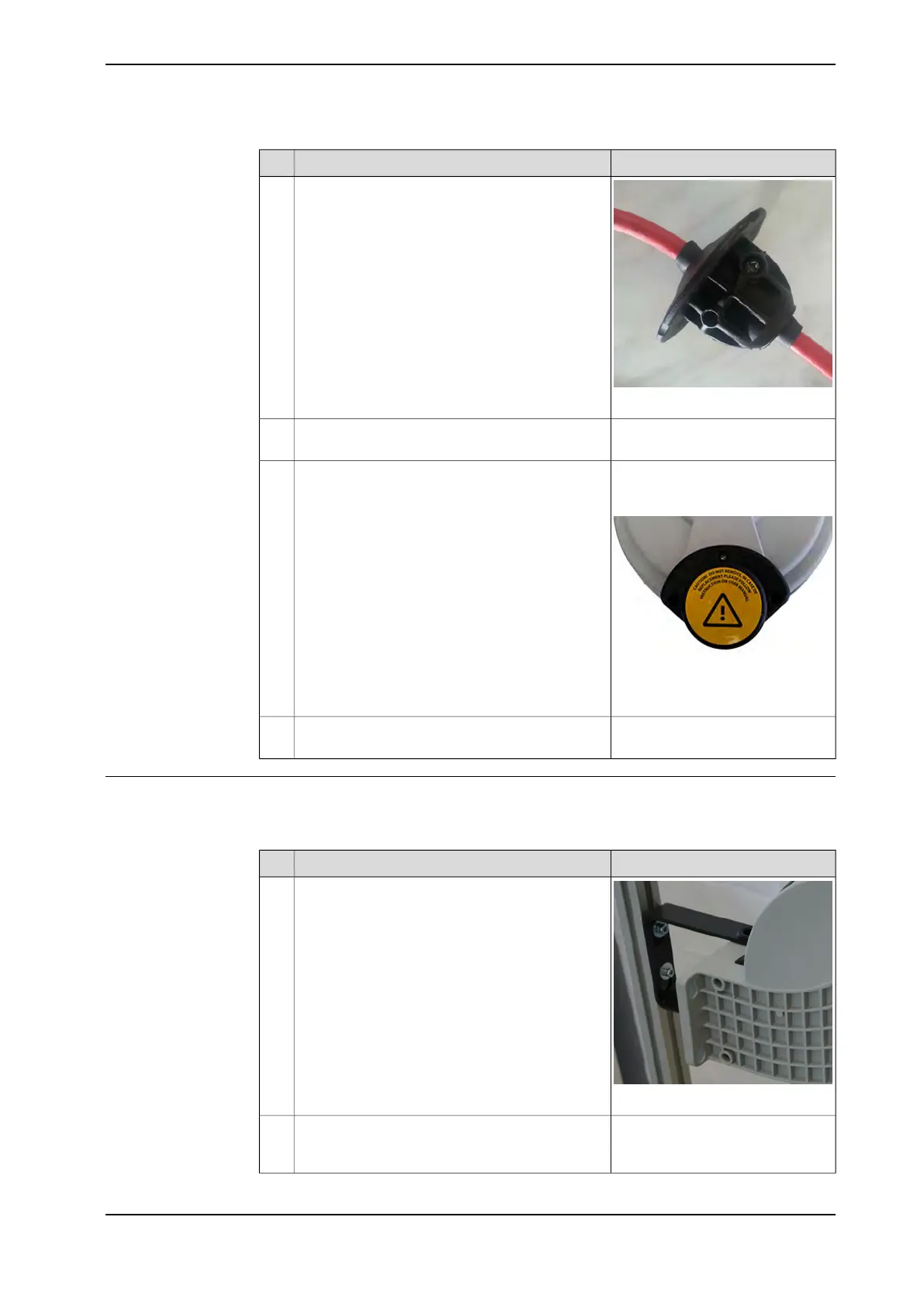

Examine that the cable stopper is in place and
cannot be moved.
5
Examine that no foreign objects or liquids are in-
side the cable reel. If so, remove it.
6
If the brake is too fast, then it
should be replaced, see Replacing
the brake on page 37.
xx1300002383
To test the stop device, retraction spring, and
brake:
1 Pull out at least 2 meters of the retractable
cable to make sure that the stop device is
working, that is, that the cable stays pulled
out. There should be a click-clack sound
while pulling out the cable.
2 Pull out the entire retractable cable and
release it so the cable retracts. Examine
that the entire cable length is retracted
slowly.
3 Pull out cable and release it. Stop the re-
traction to make sure that the stop device
is working.
4 Repeat 4 times.
7
Examine that there is sealing glue on all locking
screws. Do not remove the glue.
8
Inspection for paint robots
Use the following procedure to inspect the complete FlexPendant Retractable
Cable.
NoteAction
xx1600000639
Make sure that the holding screw of the bracket
is tight.
1
Examine the connectors and cabling to make sure
they are securely attached and that the cabling is
not damaged.
2
Continues on next page
Product manual - FlexPendant Retractable Cable 33
3HAC048816-001 Revision: B
© Copyright 2015-2016 ABB. All rights reserved.
3 Maintenance
3.2 Inspecting the complete FlexPendant Retractable Cable
Continued
