ABB HT580636 - Fit Cover Plate

Operation Manual / TPL67-C.. - TPL71-C..
9 Taking out of operation at short notice / 9.3 Fit cover plate
© Copyright 2018 . All rights reserved. HZTL2488_EN Revision E April 2018

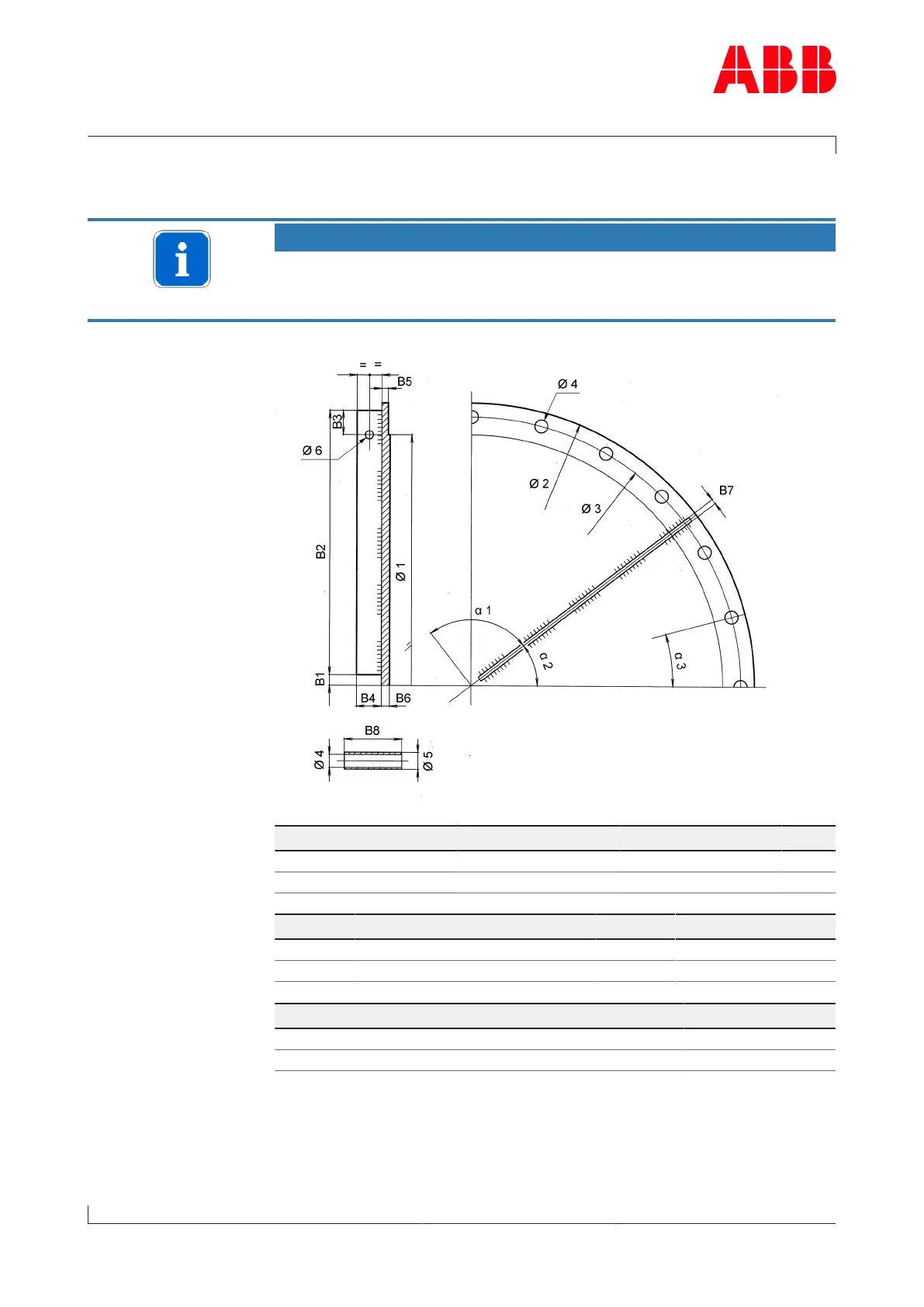

9.3 Fit cover plate
NOTICE
The cover plate (material: General structural steel, in accordance with
DIN EN 10025-2) must be manufactured in-house according to the
drawing.
Cover plate dimensions
[mm]
Product B1 B2 B3 B4 B5 B6 B7 B8
TPL67-C 13 325 30 30 8 10 6 70
TPL71-C 13 385 30 30 8 10 6 84
Product Ø 1 Ø 2 Ø 3 Ø 4 Ø 5 min. Ø 6 min.
TPL67-C 616 694 660 16 22 15
TPL71-C 726 818 779 18 25 15
Product
⍺
1
⍺
2
⍺
3
TPL67-C 4 x 90° 37.5° 24 x 15°
TPL71-C 4 x 90° 37.5° 24 x 15°
Page 111 / 125
