Operation Manual / TPL67-C.. - TPL71-C..
8 Disassembly and assembly / 8.2 Module weights
© Copyright 2018 . All rights reserved. HZTL2488_EN Revision E April 2018

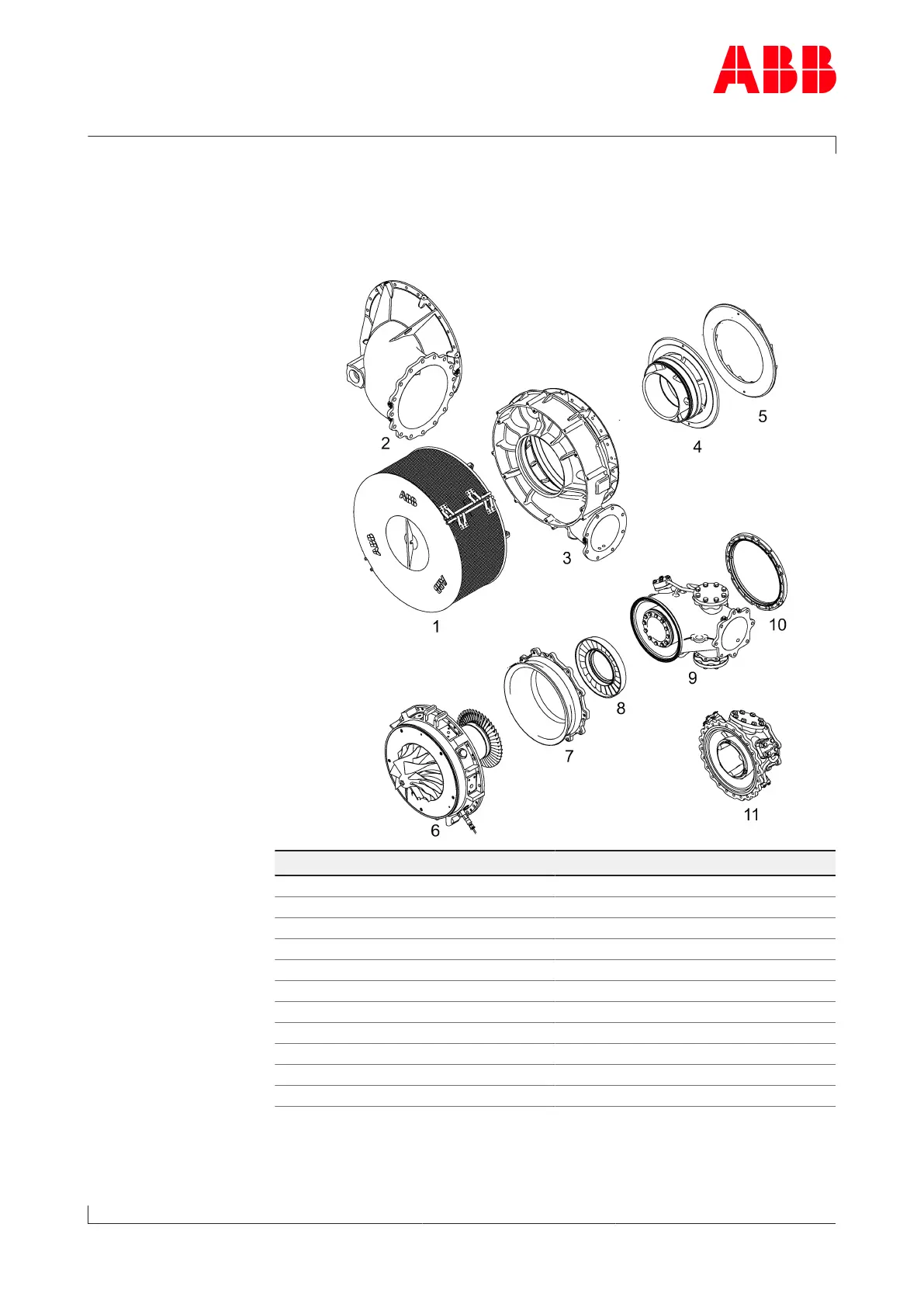

8.2 Module weights
The specified weights of individual parts or assemblies are guides roun-
ded off to the next highest value.
Assemblies
Weights [kg]
Description TPL67-C TPL71-C
1 Filter silencer 130 180
2 Radial air suction branch 50 70
3 Compressor casing 180 260
4 Wall insert 40 65
5 Diffuser 19 35
6 Cartridge group 290 460
7 Turbine diffuser 40 60
8 Nozzle ring 10 13
9 Radial gas inlet casing 110 150
10 Segment 7 12
11 Axial gas inlet casing 65 80
Page 83 / 125
