Operation Manual / TPL67-C.. - TPL71-C..
8 Disassembly and assembly / 8.6 Dismantling and installing the tur-
bine diffuser and nozzle ring
© Copyright 2018 . All rights reserved. HZTL2488_EN Revision E April 2018
8.6 Dismantling and installing the turbine diffuser
and nozzle ring
Releasing the turbine dif-
fuser

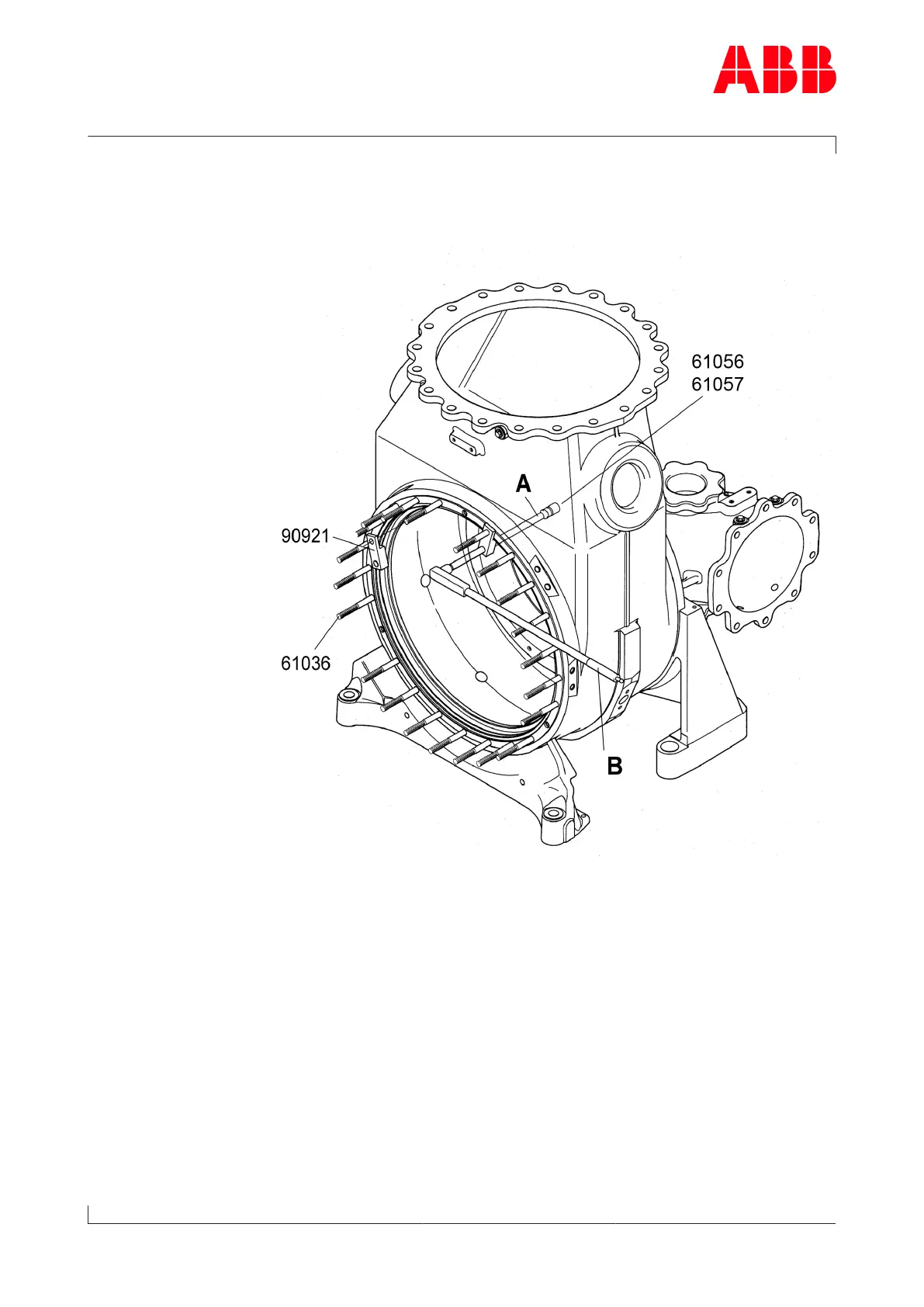

u Put clamp (90921) over stud (61036) until it rests on inner radius of
gas outlet casing.
u Pass extension (A) of torque spanner (B) through hole in clamp and
only loosen screws (61056) one after other.
u Do not yet remove the screws (61056) and Verbus Ripp® washers
(61057).
Page 92 / 125
