Operation Manual / TPL67-C.. - TPL71-C..
8 Disassembly and assembly / 8.5 Removing cartridge group
© Copyright 2018 . All rights reserved. HZTL2488_EN Revision E April 2018

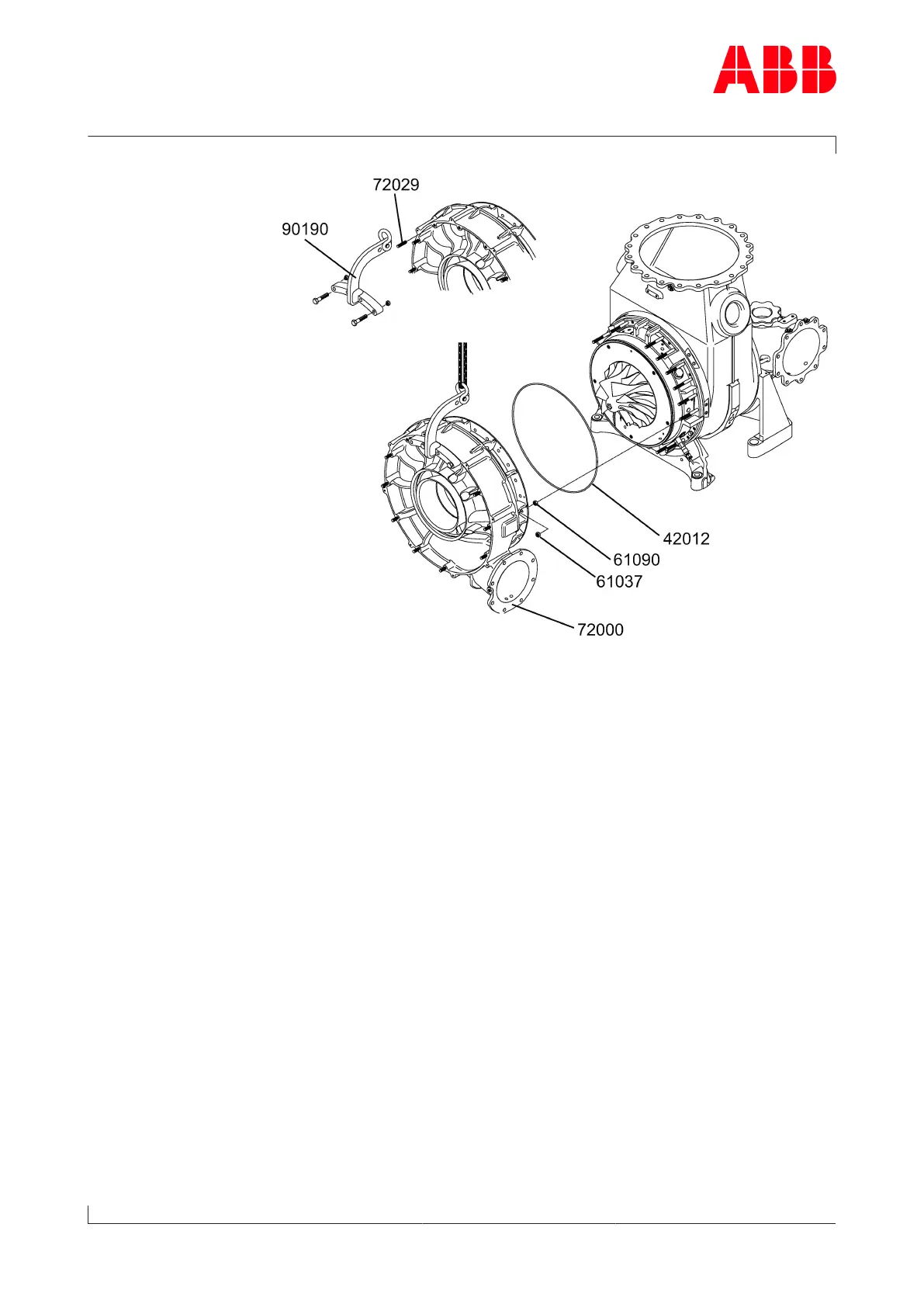

u Remove three studs (72029) at top.
u Attach lifting device (90190) to compressor casing (72000), then
fasten and secure it to crane using lifting gear.
u Unscrew and remove nuts (61037).
u Uniformly press off compressor casing (72000) using three press-off
nuts (61090) fitted on bearing casing side.
u Slightly lift and pull out compressor casing (72000).
u Remove the O-ring (42012).
