Installing the compressor casing

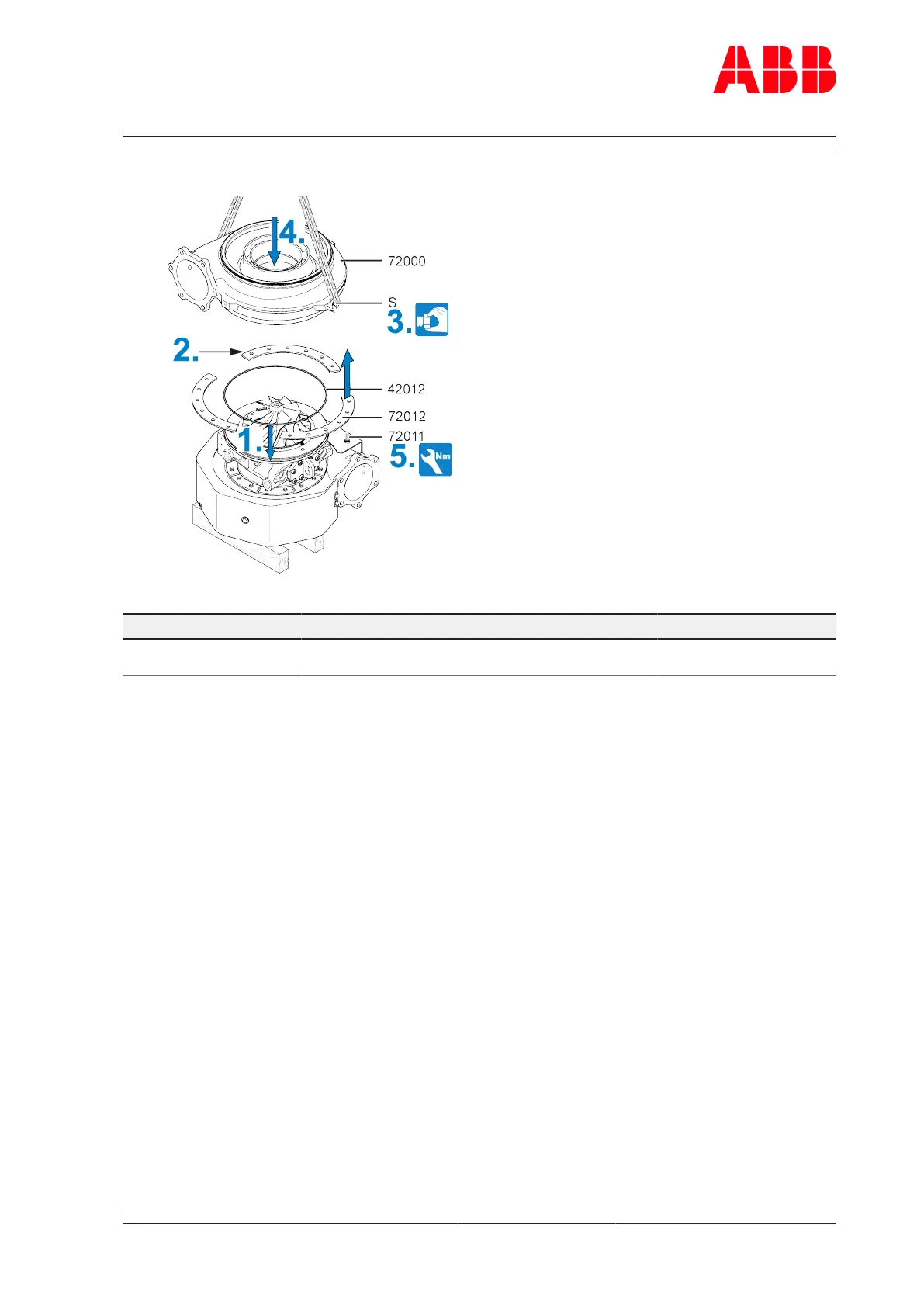

Fig.46: Installing the compressor casing
Part number A130 A135 A140
72011 M8
35Nm
M10
70Nm
M12
105Nm
Table40: Tightening torque (72011)
1. Fit a new, high temperature-resisting O-ring (42012, red or green) (see chapter Required
customer spare part set (97070) →89).
2. Thoroughly clean the fastening strips(72012) before assembly.
3. Attach swivel lifting eyes (01) to the compressor casing (72000) and lifting gear.
4. Install the compressor casing(72000).
5. Install the fastening strips(72012) with screws(72011).
