8.2 Weights of individual parts
The specified weights of the individual parts or assemblies are rounded-up standard values.

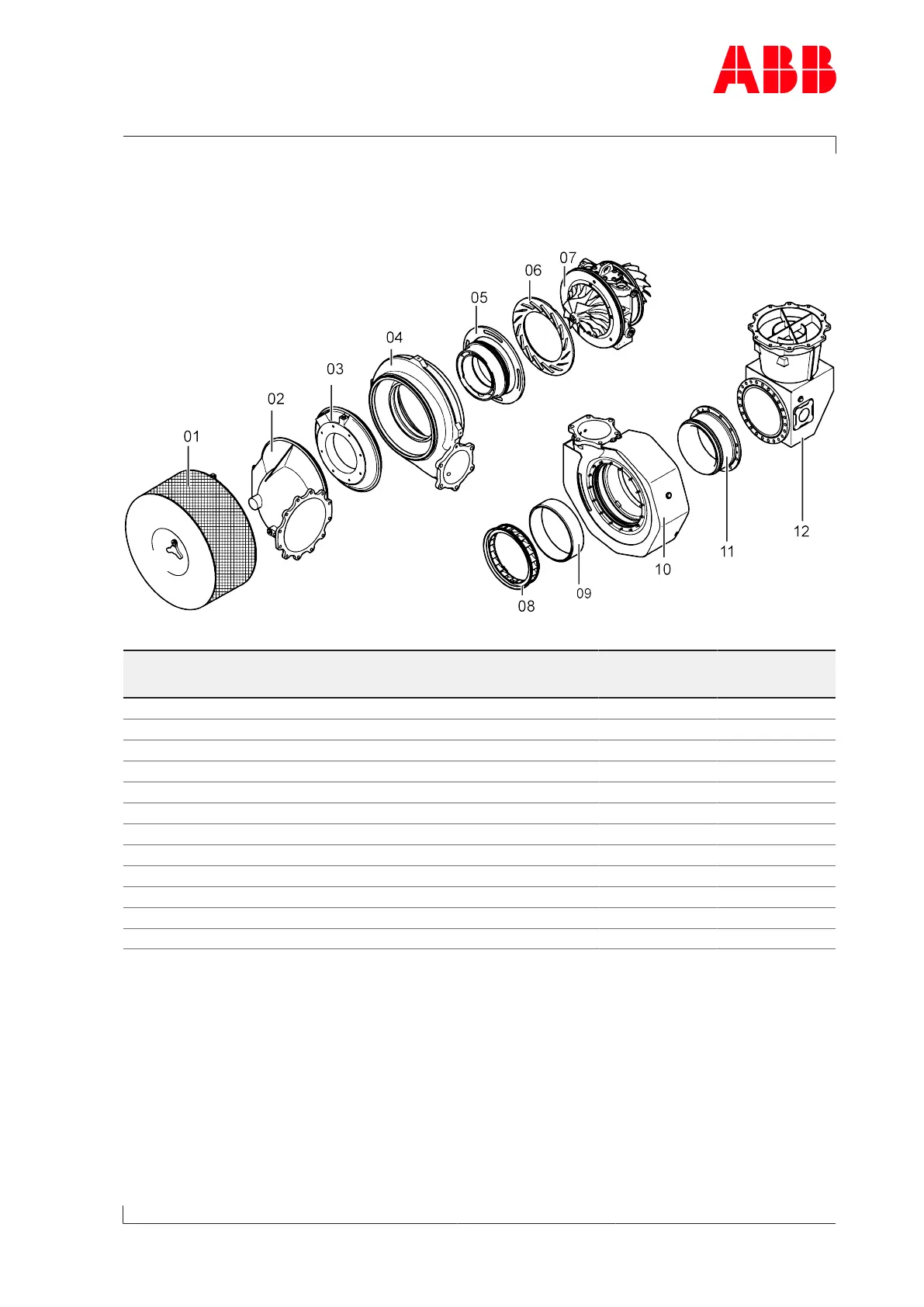

Fig.26: Weights of assemblies
Designation A130
[kg]
A135
[kg]
A140
[kg]
01 Filter silencer 19 30 40
02 Radial air suction branch 6 8 13
03 Axial air suction branch 4 5 6
04 Compressor casing 24 40 60
05 Wall insert 6 8 15
06 Diffuser 3 4 7
07 Cartridge group 40 60 110
08 Nozzle ring 2 2 4
09 Burst ring 2 3 5
10 Turbine casing * 45 65 120
11 Gas outlet flange 7 13 20
12 Gas outlet casing * 30 35 65
Table32: Weights of assemblies
* including burst protection
