3.1.5 Oil orifice in the bearing casing

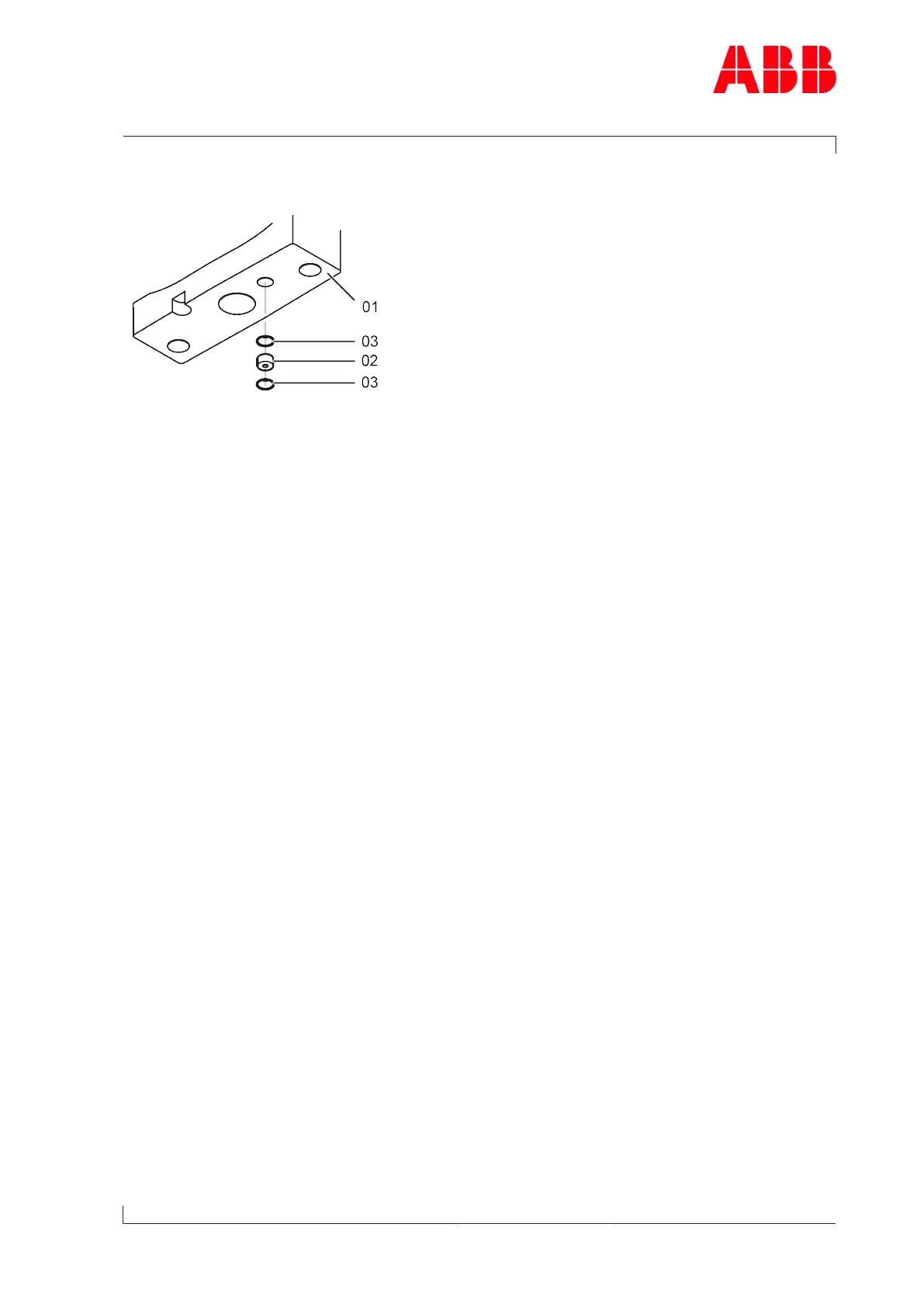

Fig.17: Oil orifice
01 Bearing casing
02 Oil orifice
03 Circlip
With an oil inlet pressure of more than 3 bar of overpressure (with engine under load) up-
stream of the turbocharger, the bearing casings are equipped with an orifice at the oil inlet
as standard.
