9.10 Fitting the diffuser

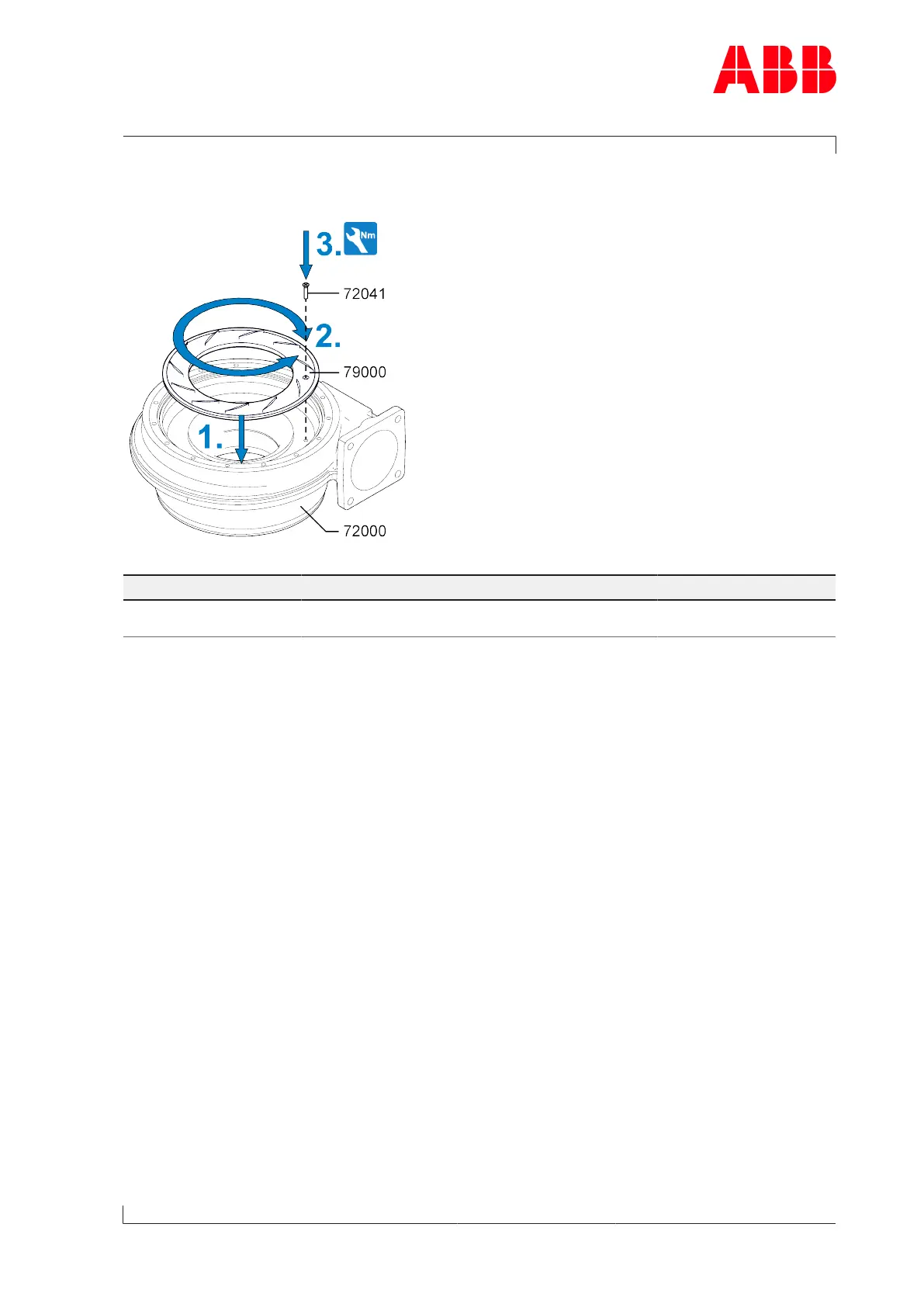

Fig.29: Fitting the diffuser
Part number TPS44 TPS48 TPS52
72041 M5
5Nm
M5
5Nm
M6
10Nm
Table35: Tightening torque (72041)
1. Position the diffuser(79000) in the compressor casing(72000).
2. Rotate the diffuser until its bore is aligned with the bore in the compressor casing.
3. Fit and tighten screw(72041).
