9.12 Installing nozzle ring

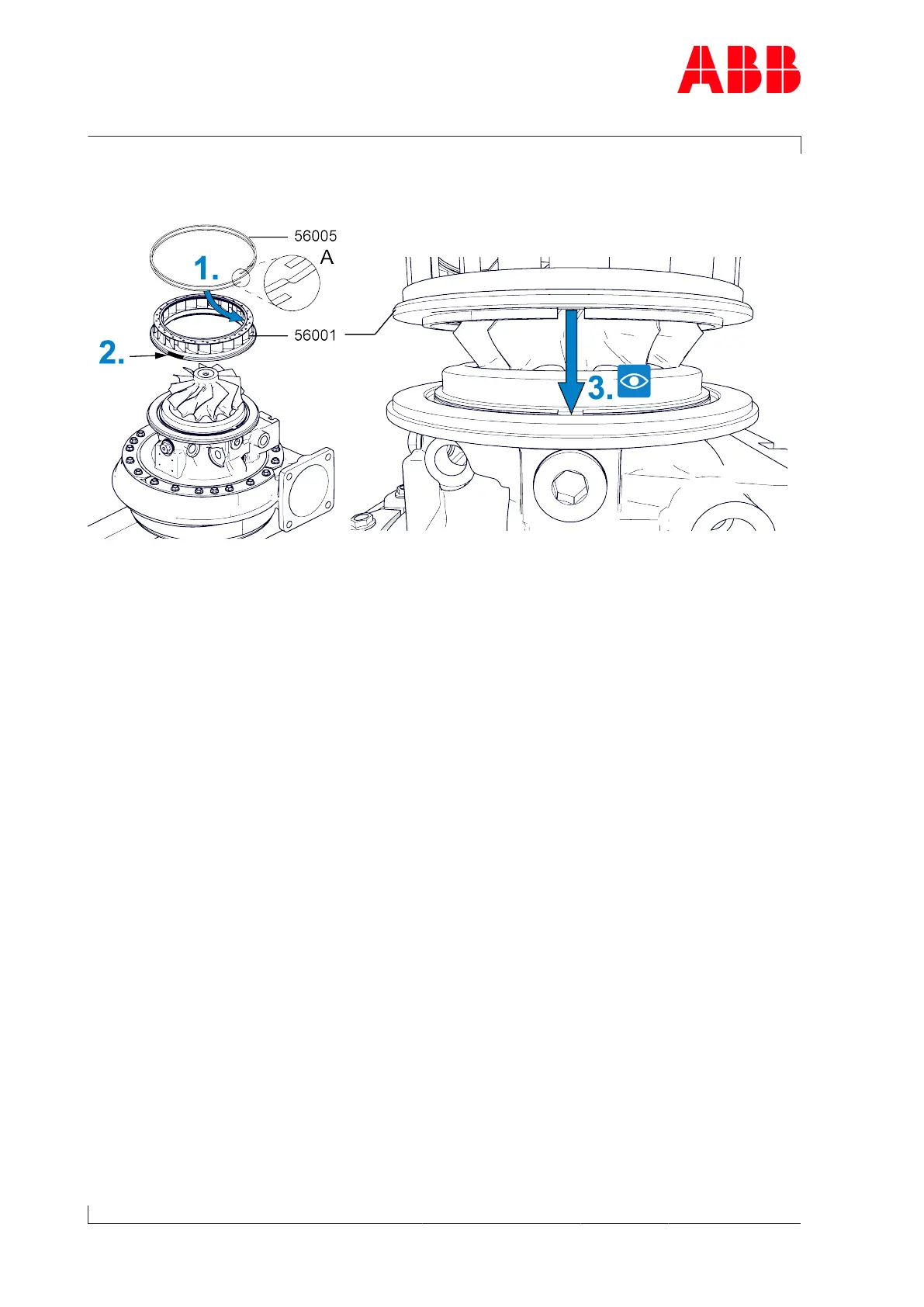

Fig.32: Installing the nozzle ring
1. Fit lamellar sealing ring (56005) in the slot of the nozzle ring. When doing this, pay atten-
tion to correct winding of the lamellar sealing ring (see detail A).
2. Secure the lamellar sealing ring (56005) with adhesive tape.
3. Installing the nozzle ring. Ensure correct position according to illustration.
