Operation Manual / A130-H.. - A140-H..
13 Spare parts / 13.3 Spare part – Illustrations
© Copyright 2021 ABB. All rights reserved.
HZTL4030_EN
Rev.G
July 2021
Part no.
Designation
57003**
Metal ring
57210
Burst ring
Table48

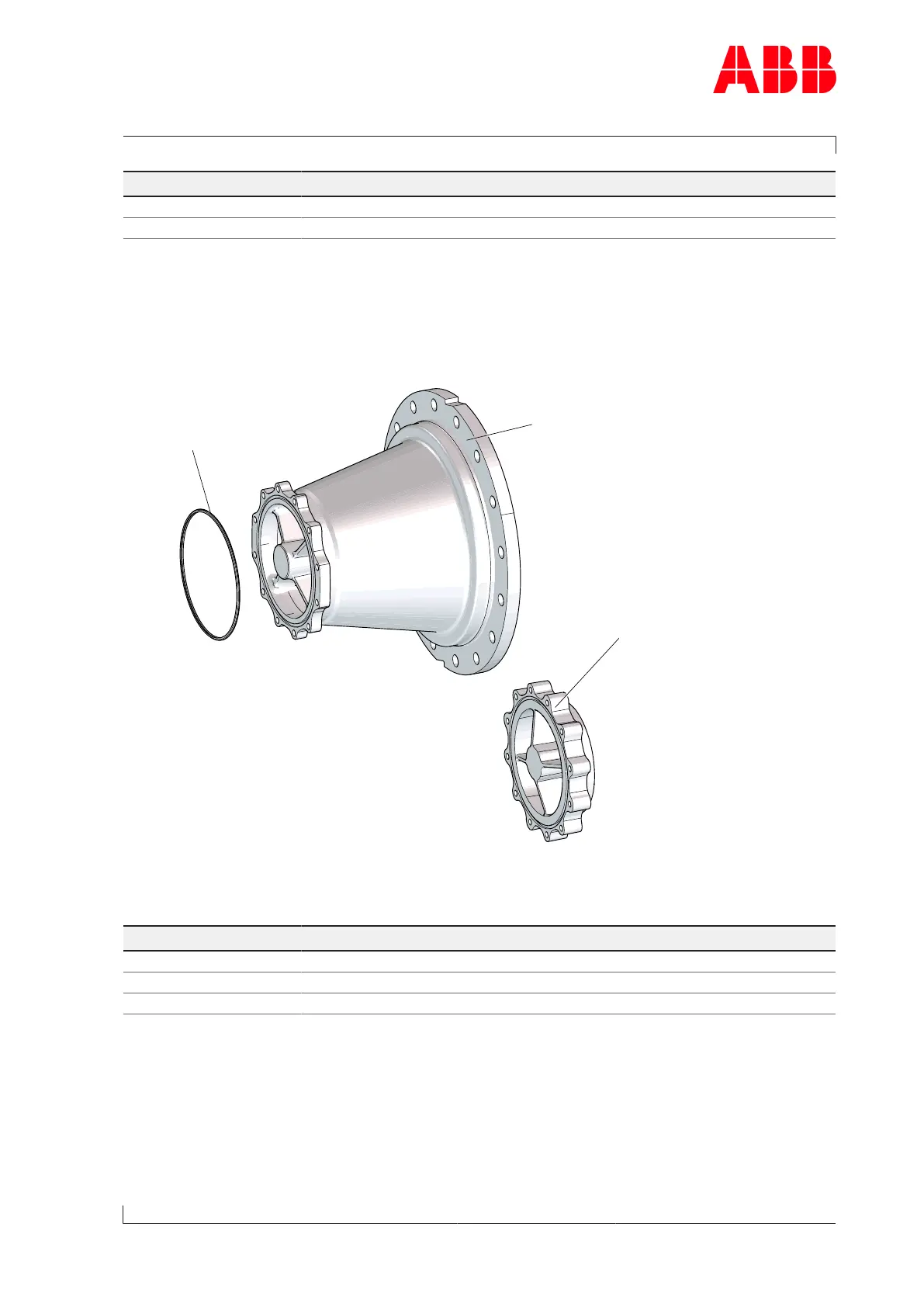

Gas outlet casing, axial
61002*
GH02
61001
61001**
GH02 GHV03
* = Av
ailable within the spare part set only
** = if provided
HZTL443303 Mod. B
Part no.
Designation
61001
Gas-outlet casing
61001**
Gas-outlet casing GHV03
61002*
Gasket
Table49
Page 113 / 122
114
116
