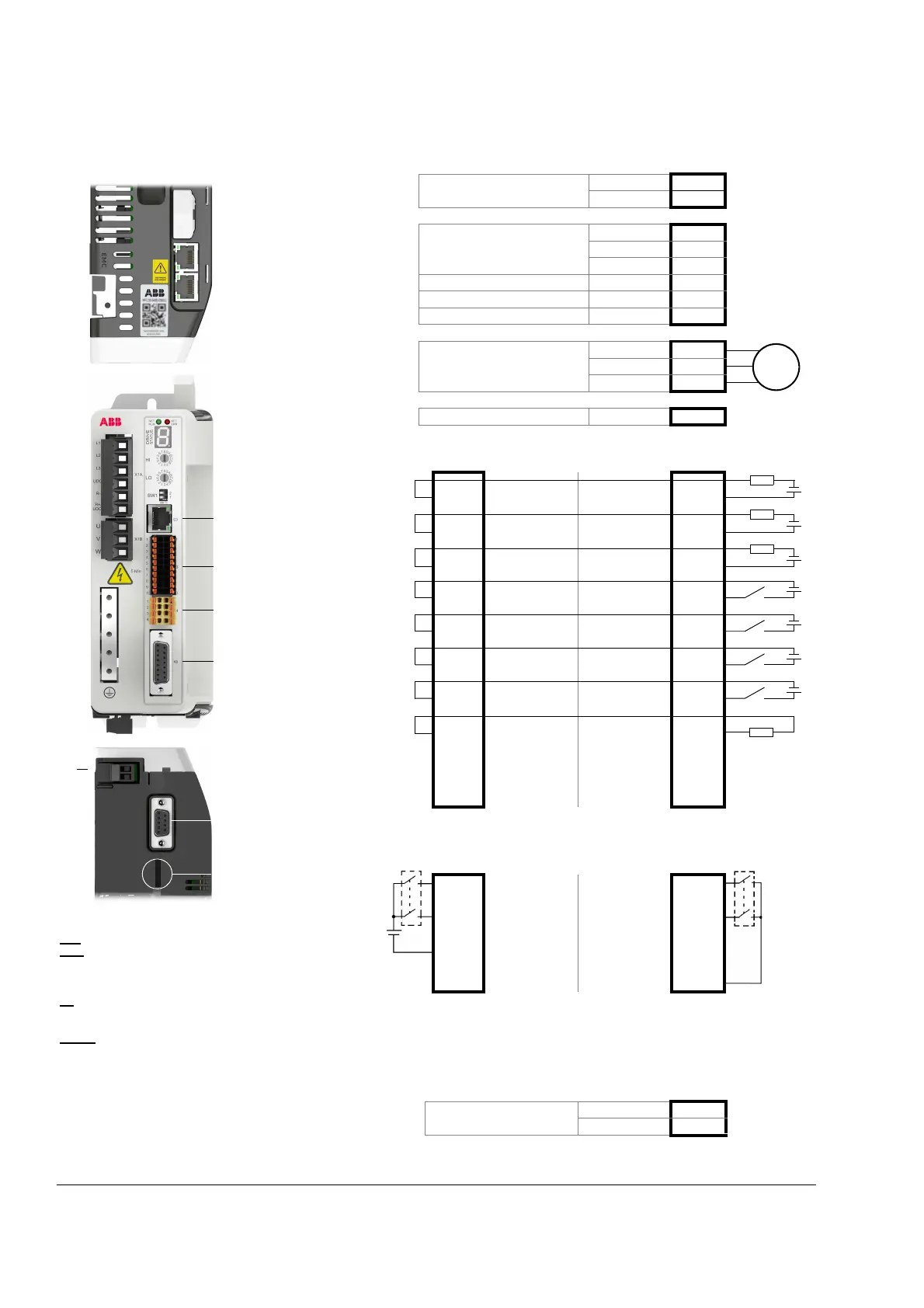

Wire sizes and tightening torques:
X1A: Dinkle EC762V-B3253206P-BK
X1B: Dinkle EC762V-B3253203P-BK
0.2...6.0 mm
2
(30*...10 AWG)
* Minimum size for UL installations is 14 AWG.
Torque: 0.7 N·m (6.2 lbf·in)
X2
: Phoenix Contact MVSTBR 2,5HC/ 2-ST-5,08
0.2...2.5 mm
2
(24...12 AWG)
Torque: 0.6 N·m (5.3 lbf·in)
X3, X4: Weidmüller B2L 3.50/20/180,
Weidmüller B2L 3.50/8/180
0.2...1.0 mm
2
(28...16 AWG)
Note:
The wiring shown is for demonstrative purposes only.
Complete information for all connectors, including X7
and X8, is provided in MicroFlex e190 User’s Manual.
E1/E2
EtherCAT, PROFINET or
IN E2
Ethernet POWERLINK
OUT
E1
X1A
AC input
200...240 V AC ±10%
L1 1
L2
2
L3
3
DC bus- UDC-
4
Brake res.- R-
5
DC bus+ / Brake res.+ R+/UDC+
6
X1B
Motor output
U1
V
2
W
3
E3
Ethernet host (PC)
1
X3 X3
1 DO0- DO0+ 11
2 DO2- DO2+ 12
3 DO1- DO1+ 13
4 DI2- DI2+ 14
5DI3- DI3+15
6 DI1- DI1+ 16
7 DI0- DI0+ 17
8AGND AO0 18
9 AI0- AI0+ 19
10 Shield Shield 20
E2
Connectors
E1
X1A
X1B
E3
X3
X4
X8
X7
X2
X4 X4
1 STO1 STO1 5
2 STO2 STO2 6
3 SGND SGND 7
4 24 V out 24 V out 8
STO1 inputs (Pin 1 and Pin 5) are inner-connected, and
STO2 inputs (Pin 2 and Pin 6) are inner-connected, easy to cascade.
Note: The wiring above is an example only, see STO section of the
User’s Manual for detailed information.
X2
(Optional) External
power input: 24 V, 1 A
0 V 1
+24 V IN 2
M
Feedback voltage selector
Example 1:
STO input using
external 24 V
supply
Example 2:
STO input
using
internal
24 V supply
To Next Page
