10
1TTS900001M0902
3. Packing and Transportation
3.1 General
The MNS R switchboards are delivered either in single cubicles or in shipping units not exceeding 2
meters in lenght, taking also into consideration the type of equipment installed and the available space
for handling the switchgear at the erection site.
If no special instruction are given by the customer, the switchboards are delivered with standard pack-
aging, according to ABB internal instructions, and a suitable method of shipping is selected.
3.2 Packing
The cubicles are protected by suitable packaging during transport and possible intermediate storage.
3.3 Delivery and Unloading Operations
The unloading operation must be carried out by means of cranes or lift trucks. The load must be laid
down on a level surface.
3.3.1 Unloading

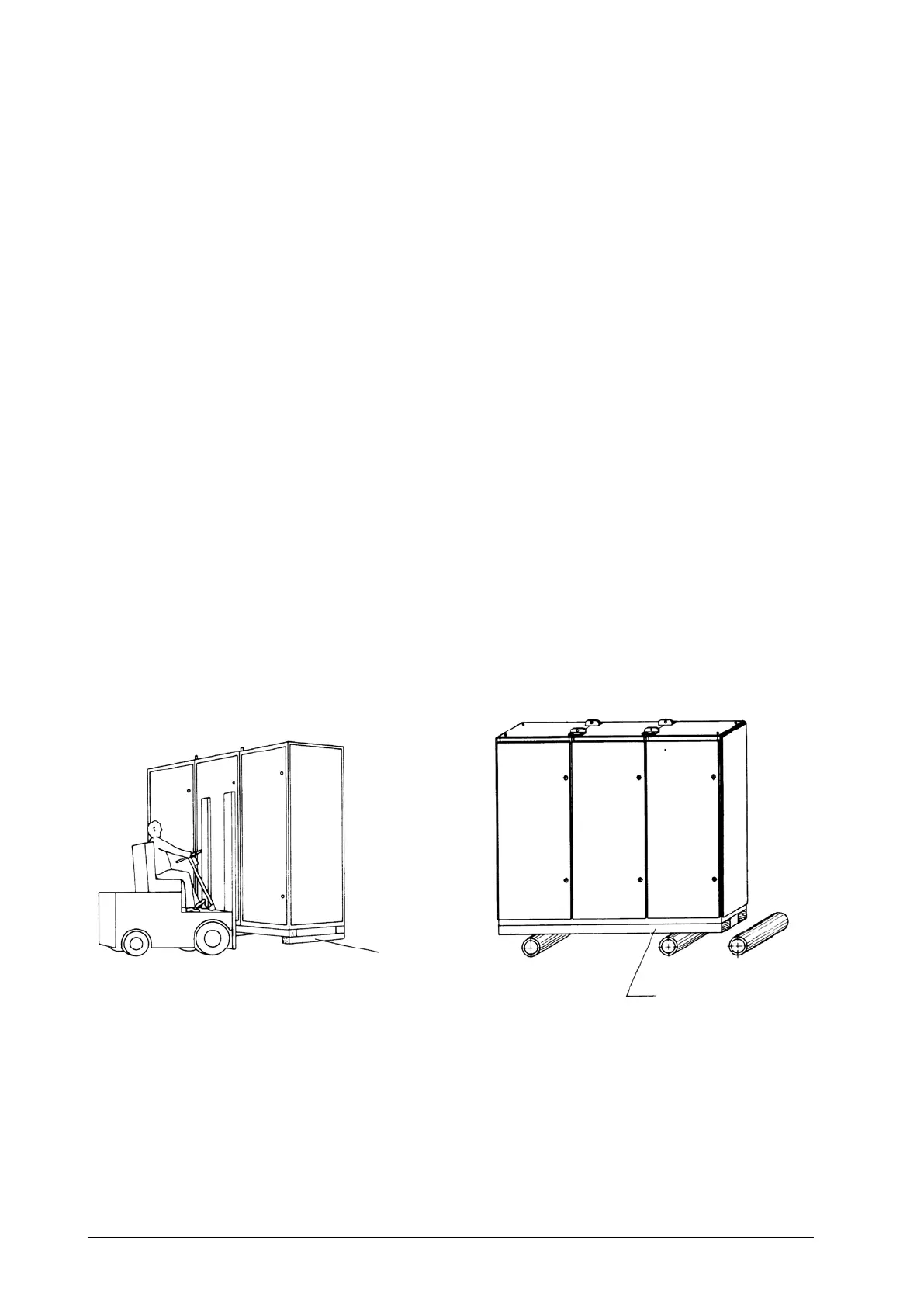

• By means of lift trucks (see Figure).
• By means of lifting and sliding devices (see Figure).
• If necessary, by means of rollers (min. 3 pieces). For roller transport, the wooden crossbeams must
be removed (only for cubicles with transverse sections up to 1200 kg) (see Figure).
• The compartments for switchboard must be transported only in vertical position.
• Tilting and canting must be avoided.
Crossbeam
Transport frame
(wooden beam 10 x 12 cm)
To Next Page
