2.4.6.1 Building rules for manual motor starters with accessories

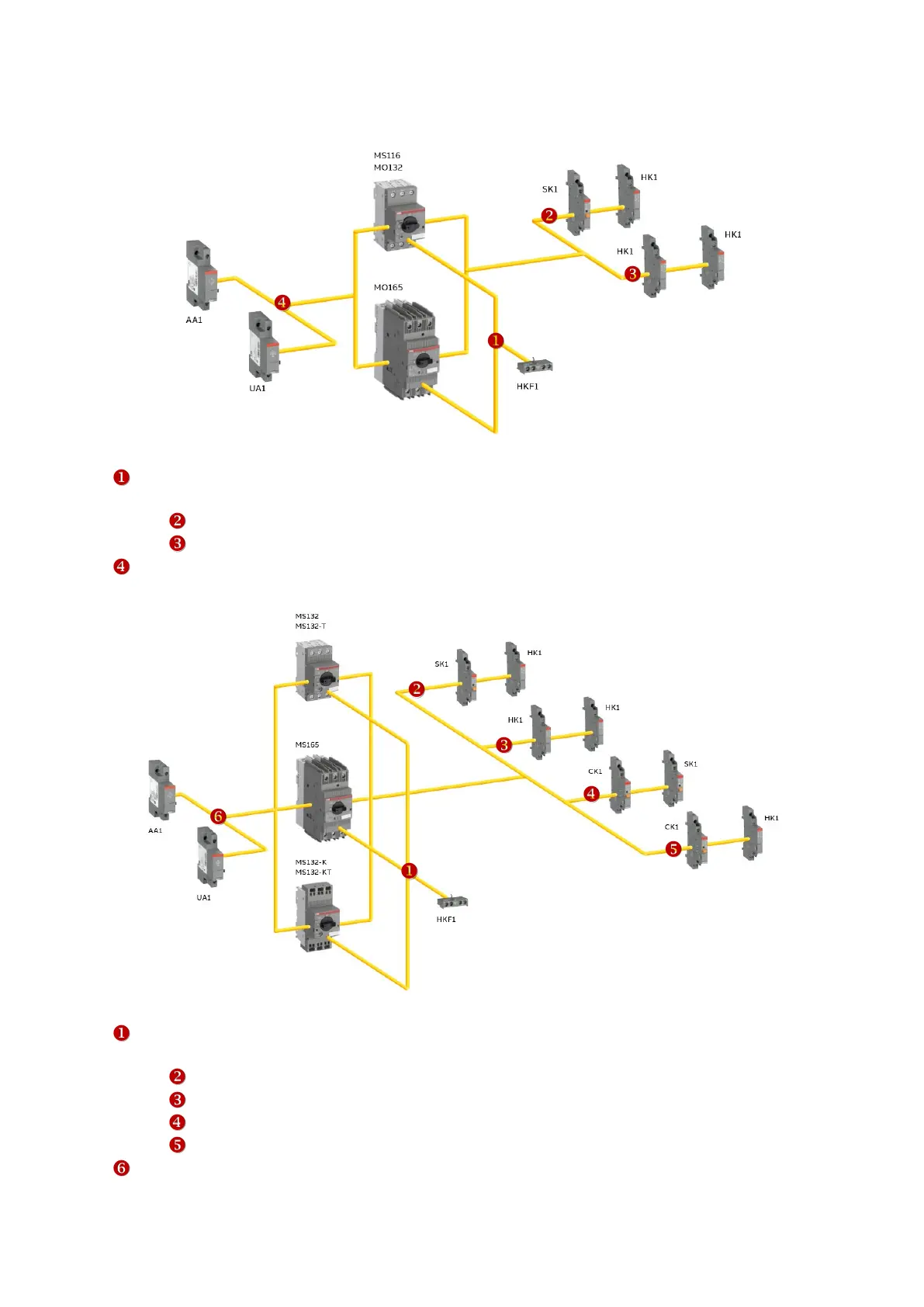

The maximum capacity for MS116, MO132 and MS165
Figure 6: The maximum capacity for MS116, MO132 and MS165
− One front mounting auxiliary contact HKF1,
− Two accessories mounted on the right:
− one SK1 signal contact alarm and one HK1auxiliary contact
− or two HK1 auxiliary contacts
− One AA1 shunt trip or one UA1 undervoltage release on the left side
The maximum capacity for MS132 or MS165
Figure 7: The maximum capacity for MS132 or MS165
− One front mounting auxiliary HKF1 contact,
− Two accessories mounting on the right:
− one SK1 signal contact alarm and one auxiliary HK1contact
− or two auxiliary HK1 contacts
− or one short-circuit CK1 indicator and one SK1 signal contact alarm
− or one CK1 short-circuit indicator and one auxiliary HK1contact
− One AA1 shunt trip or one undervoltage UA1 release on the left side (note: The combination of MS132-K +
UA1 + CK1 is not possible)










