Chapter 3 – Voltage Selection and Mechanical Installation
3-2 Installation and Start-up Guide for NBRA-6xx
Synchronisation of
Multiple Choppers
The FIBER position is used if two (or more) choppers are connected to
the same intermediate circuit and must be synchronised. One chopper
– the first in the chain – acts as the master for the other choppers. The
voltage selection jumper of the master is set to the appropriate voltage,
while the slaves are set to FIBER.

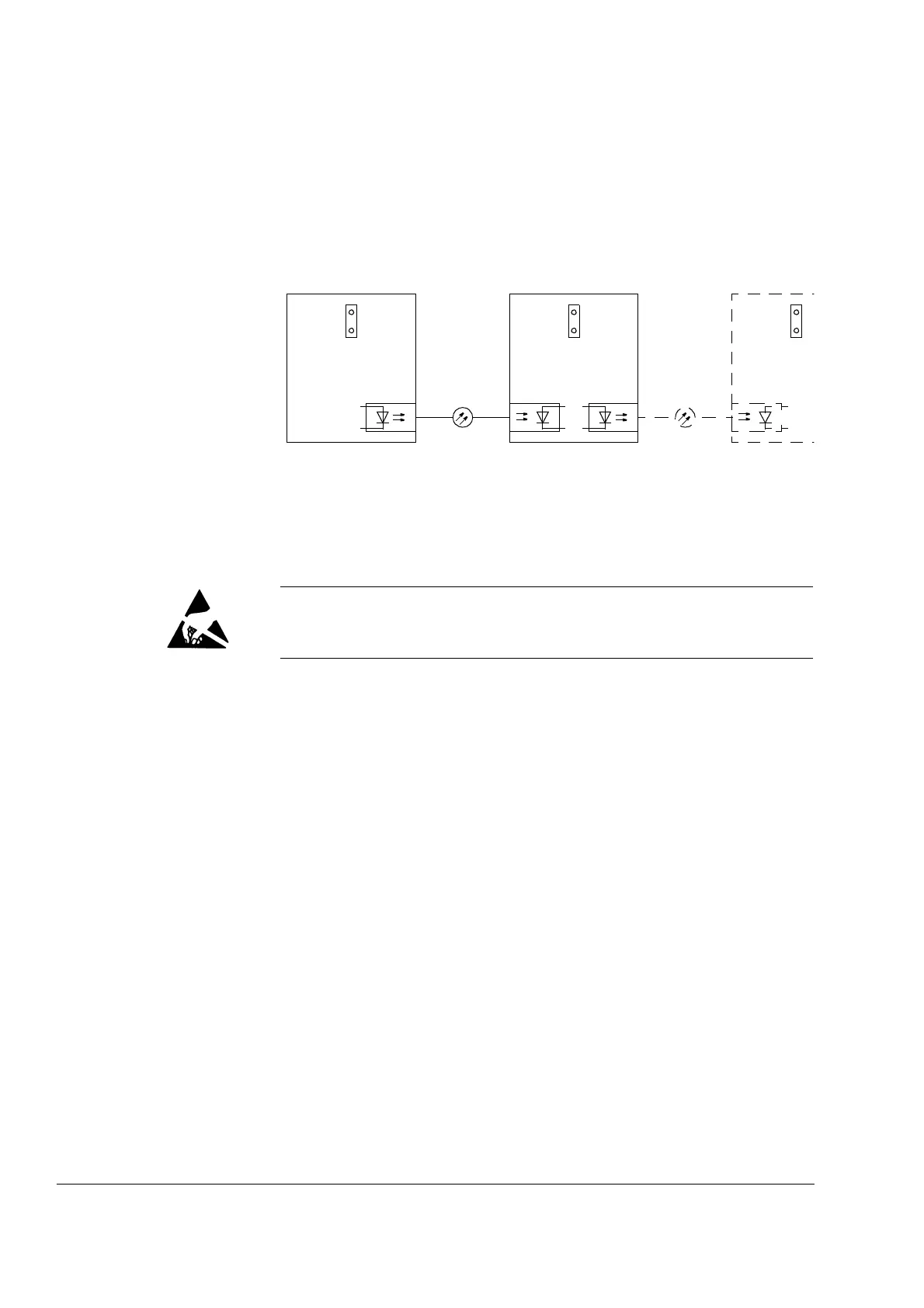

Figure 3-2 Master/Slave connection of multiple choppers.
WARNING! Do not touch the printed circuits. They are extremely
sensitive to electrostatic discharge.
Master
FIBER
Slave
Slave
FIBER
V22V22 V23V23
(VOLTAGE)
