WARNING!
IF AVAILABLE, THE INTERNAL BATTERY HAS TO BE DISCONNECTED
FIRST BECAUSE THE EXTERNAL
BATTERY TERMINALS ARE HAZARDOUS DUE TO THE PARALLEL
BATTERY STRING.
Battery Racks : External battery racks shall be sized to take the voltage drop in the cable into account. To obtain
support and help contact the local office or agent certified by the manufacturer.

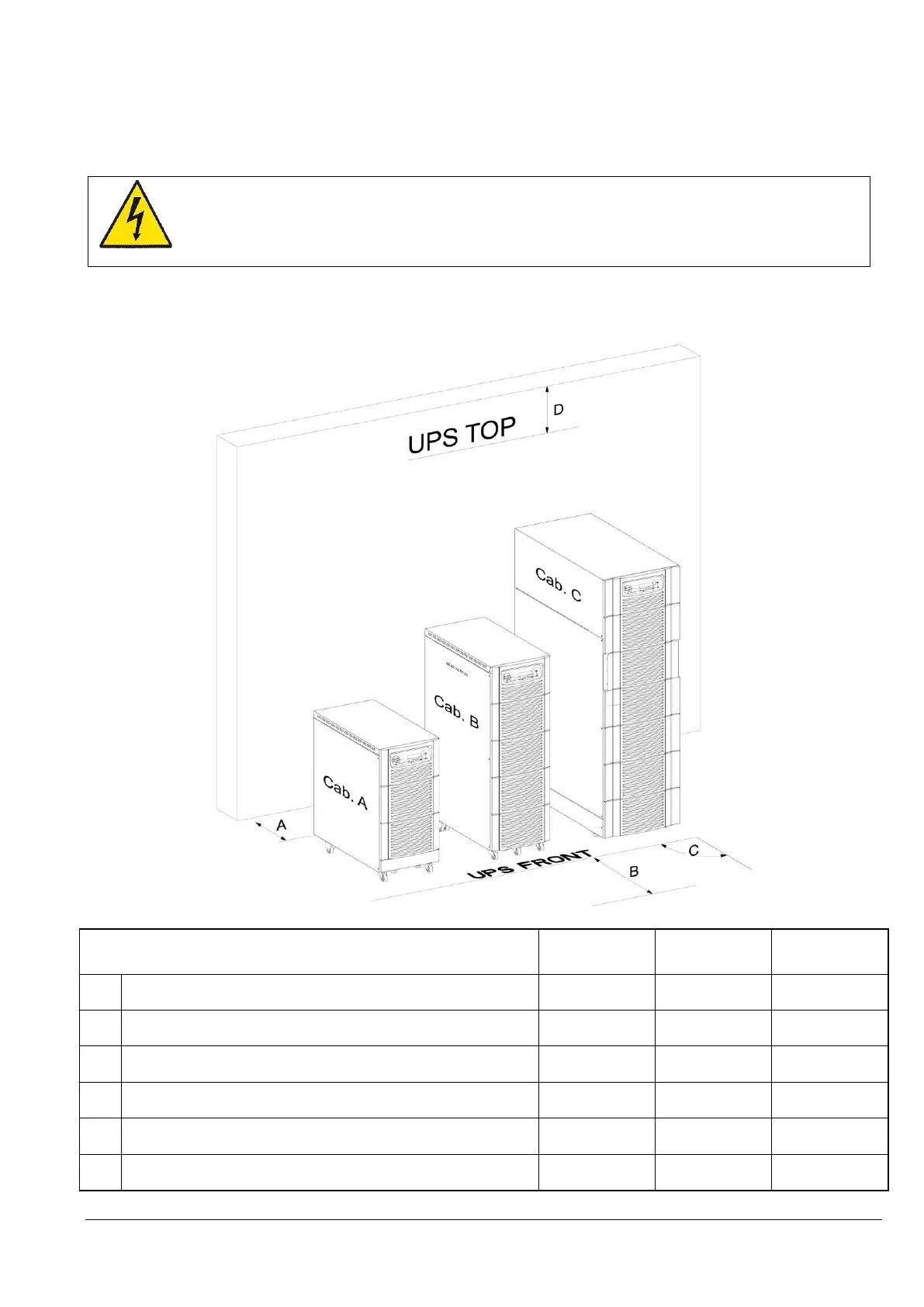

PowerScale Cabinets
Cab. A
Cab. B
Cab. C
A
Back clearance for ventilation (forced air outlet) / access for
wiring in case the unit cannot be pulled forward
200 / 500 mm
200 / 500 mm
200 mm / front
wiring
B
Front clearance for pulling the unit forward (to get rear access
for wiring or side access for battery replacement)
800 mm
800 mm
1000 mm
C
Maximum door opening angle (there is no door)
-
-
-
D
Top Clearance, not needed
0 mm
0 mm
0 mm
Side clearance R for vent. (natural air-exchange) / access for
battery replacement in case the unit cannot be pulled forward
50 / 800 mm
50 / 800 mm
0 / 800 mm
Side clearance L for ventilation (natural air-exchange)
50 mm
50 mm
0 mm
