ABB PowerScale CABINET B - Nameplate and Identification

Section-1
04-3004_S1_OPM_ABB_POWERSCALE_10-50kVA_EN_150113.doc Page 11/20 ABB
Printed in Switzerland – Modifications reserved
By unpacking the equipment from the wooden case remove all screws.

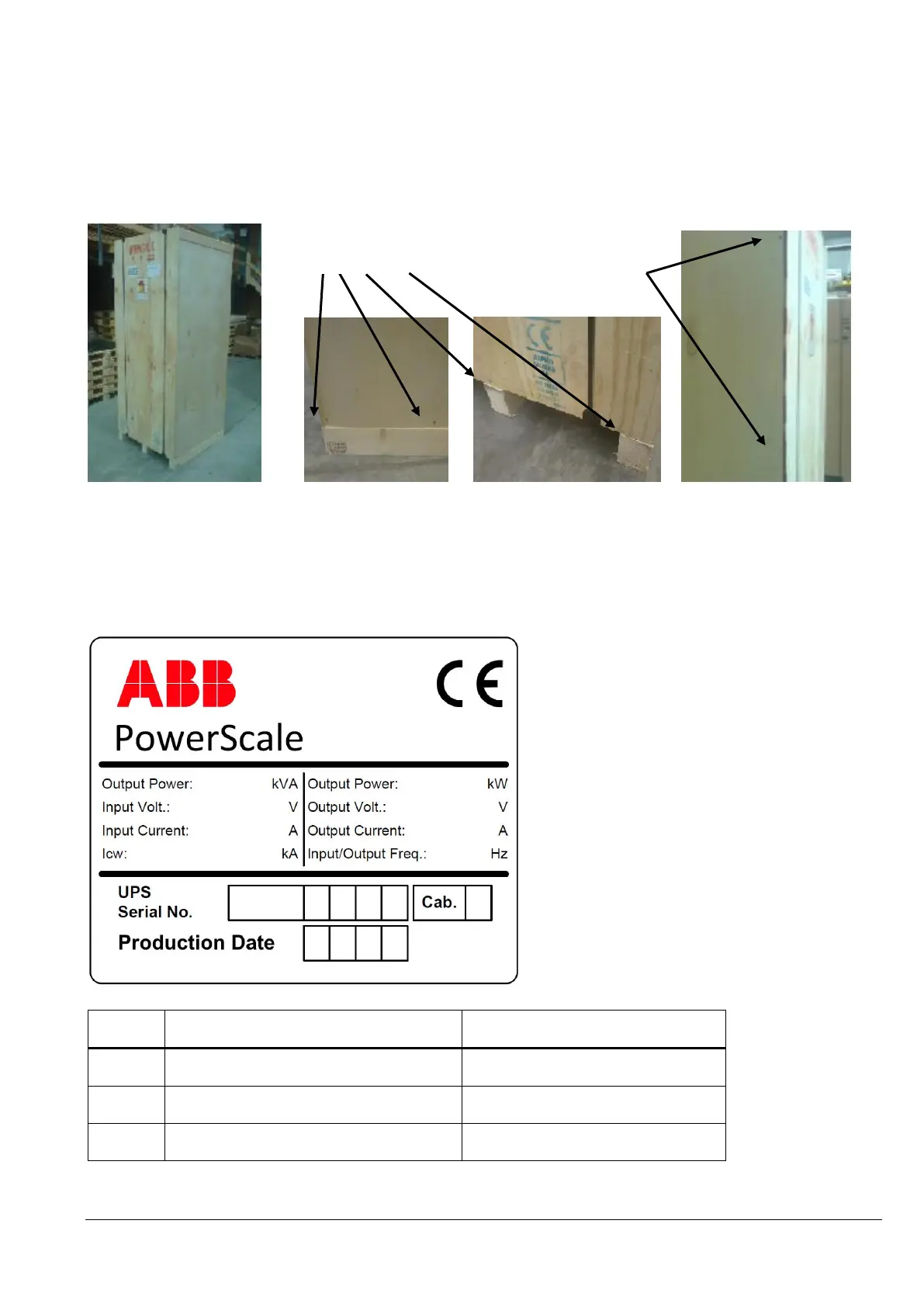

1.3.4 NAMEPLATE AND IDENTIFICATION
The technical specifications of the Equipment are provided on the nameplate of the UPS. Check if it corresponds to
the purchased material mentioned in the delivery note. For cabinets A&B the nameplate will be positioned on the
rear side, for cabinet C at the front behind the cover.
TYPE
PRODUCT DESCRIPTION
DIMENSIONS
PS1
PowerScale 10-20 kVA
Cabinet A (345x720x710mm)
PS2
PowerScale 10-25 kVA
Cabinet B (345x1045x710mm)
PS3
PowerScale 25-50 kVA
Cabinet C (440x1400x910mm)
Bottom screws
Sides screws
