Section-9
04-3004_S9_OPM_ABB_POWERSCALE_10-50 kVA_EN_150113.doc Page 6/6 ABB
Printed in Switzerland – Modifications reserved
The small (125x70 mm) External SNMP adapter comes with following interfaces:
1. RJ-45 connector for 10/100 Base-T(auto switchable)
2. Serial Port for configuration (COM2) or optional ModBus interface.
3. Error/Link LED for UPS status
4. Aux Port
5. DIP Switch
6. Serial Port to the UPS (COM1)
7. DC Supply (9 VDC or 9-36 VDC supply, depending on model);

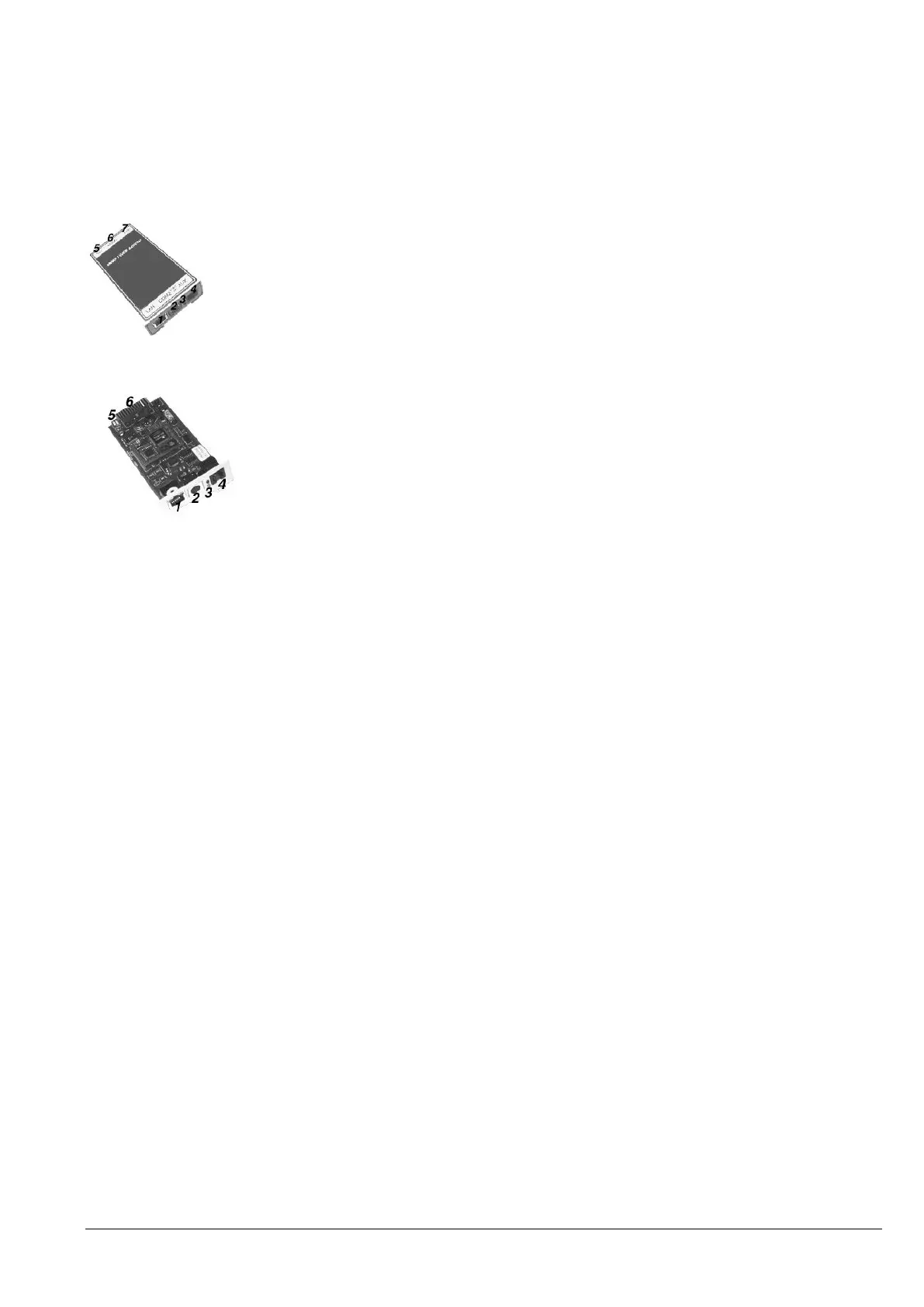

Figure 1.5.1 External SNMP Adapter
The Internal SNMP-Card can be inserted into an appropriate extension slot of the
PowerScale. This adapter communicates via the serial port of the UPS and makes a
direct multiple server shut down possible without additional SNMP management
software.
Figure 1.5.2 Internal SNMP Adapter
For detailed information please see Software Manual provided with the PMC-Software CD ROM.RCCMD - Remote
Console Command module for a multi-server shutdown. This stand-alone software module is designed to receive
and execute a command issued by a remote device. Thanks to RCCMD it is possible to execute a shutdown in an
heterogeneous multiplatform network. The new release RCCMD2 is an application available for all Operating
Systems, analogous to PMC-Software. Our SNMP Interfaces are compatible to RCCMD.
