ABB REF 54 Series Technical Reference Manual, General

1MRS750527-MUM
REF 54_
49
Feeder Terminal
Technical Reference Manual, General

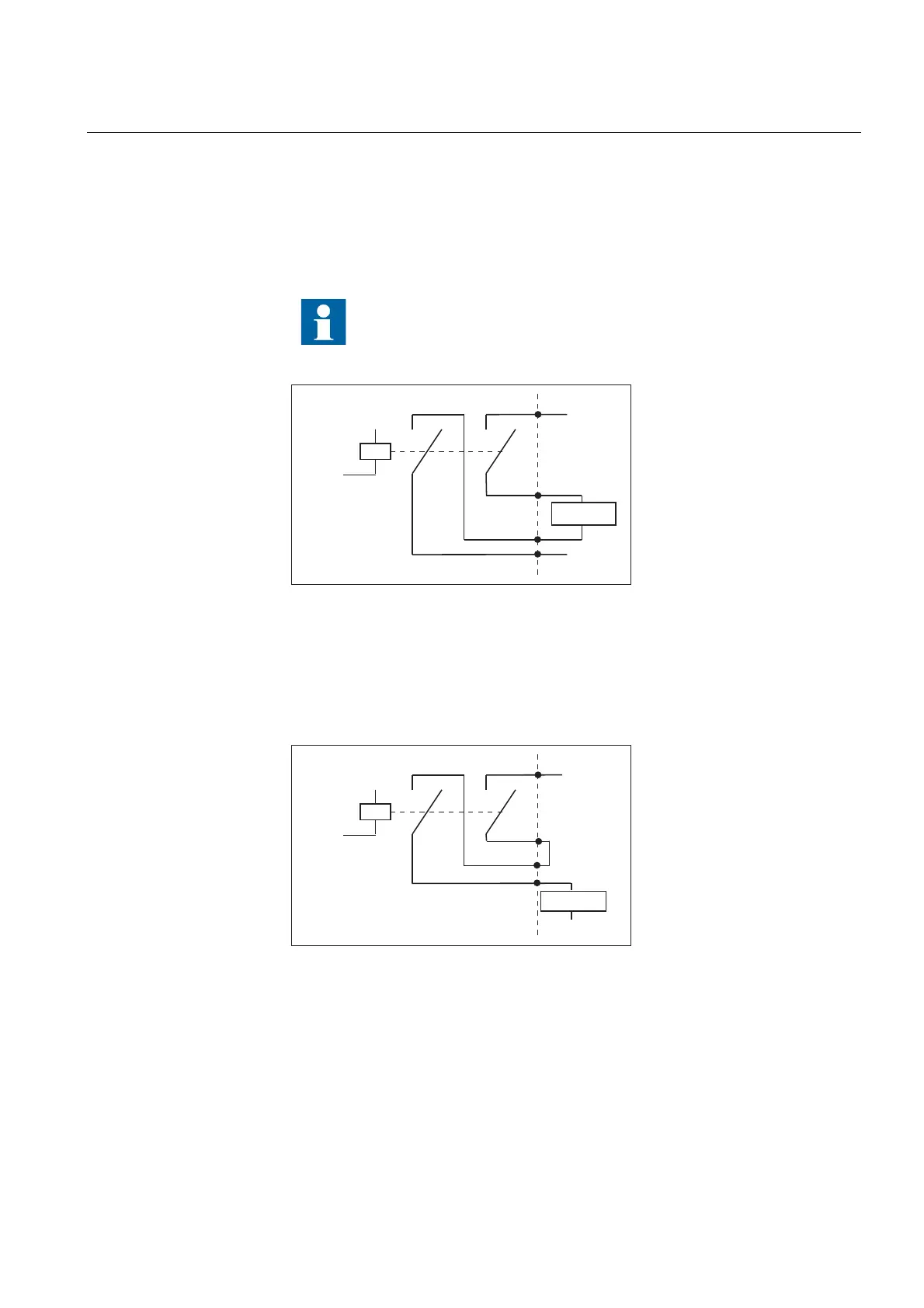

5.1.8.1. High-speed double-pole power outputs (HSPO)
The high-speed power outputs PS1_4_HSPO1... PS1_4_HSPO5 and
PS2_4_HSPO1...PS2_4_HSPO7 can be connected as double-pole outputs where the
object to be controlled, for example a circuit breaker, is electrically connected
between the two relay contacts, see the § below. The high-speed double-pole power
output is recommended to be used for tripping purposes.
cbcoil_b
Fig. 5.1.8.1.-1 High-speed double-pole power outputs (HSPO)
The high-speed power outputs PS1_4_HSPO1... PS1_4_HSPO5 and
PS2_4_HSPO1...PS2_4_HSPO7 can also be connected as single-pole power
outputs where the object to be controlled, for example a circuit breaker, is
electrically connected in series with the two relay contacts, see the figure below.
doubpole_b
Fig. 5.1.8.1.-2 High-speed single-pole power outputs (HSPO)
When TCS is used (see Table 5.1.8-1 on page 48), the outputs are
connected as shown in Fig. 5.1.11.-1 and Fig. 5.1.11.-1 on page 64.
+
-
CB
e.g.
PS1_4_HSPO1...
PS1_4_HSPO5
+
-
CB
e.g.
PS1_4_HSPO1...
PS1_4_HSPO5
