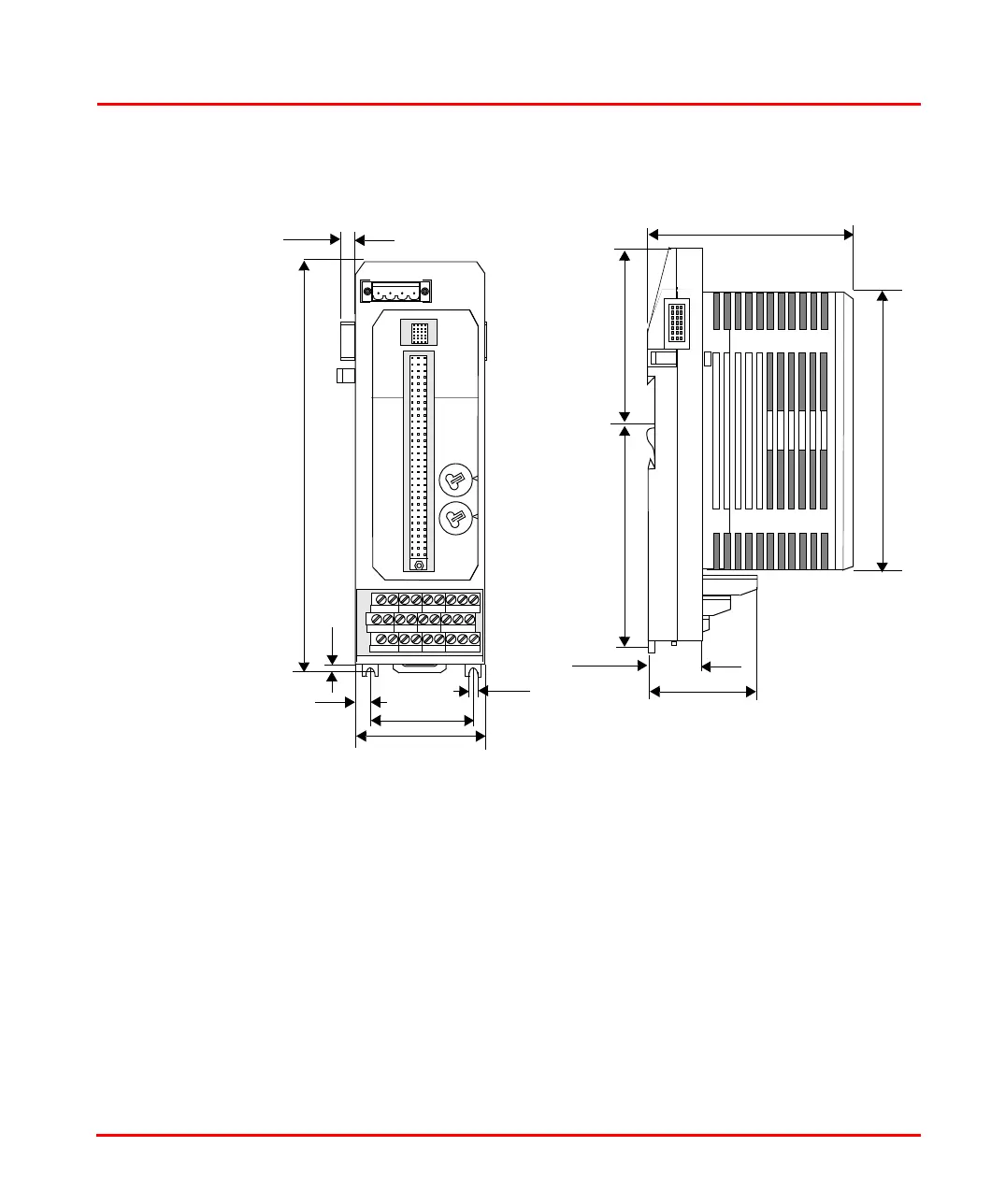

Figure 20. Compact MTU for Intrinsic Safety without and with I/O Module
A
B
C
D
E
F
A
B
C
D
E
F
192 mm
58.5 mm
9 mm
7 mm
31.5 mm
(.27”)
(7.6”)
(2.30”)
(0.35”)
(1.24")
58 mm
(2.28”)
122 mm
(4.8”)
(4.68”)
119 mm
40 mm
(1.57”)
5 mm
(0.2”)
92.5 mm (3.64”)
99.5 mm (3.92”)
Center of
DIN-rail
8 mm
(0.31”)
