ModuleBus Terminator Module TB807
There must be a ModuleBus terminator module at the end of each electrical
ModuleBus.

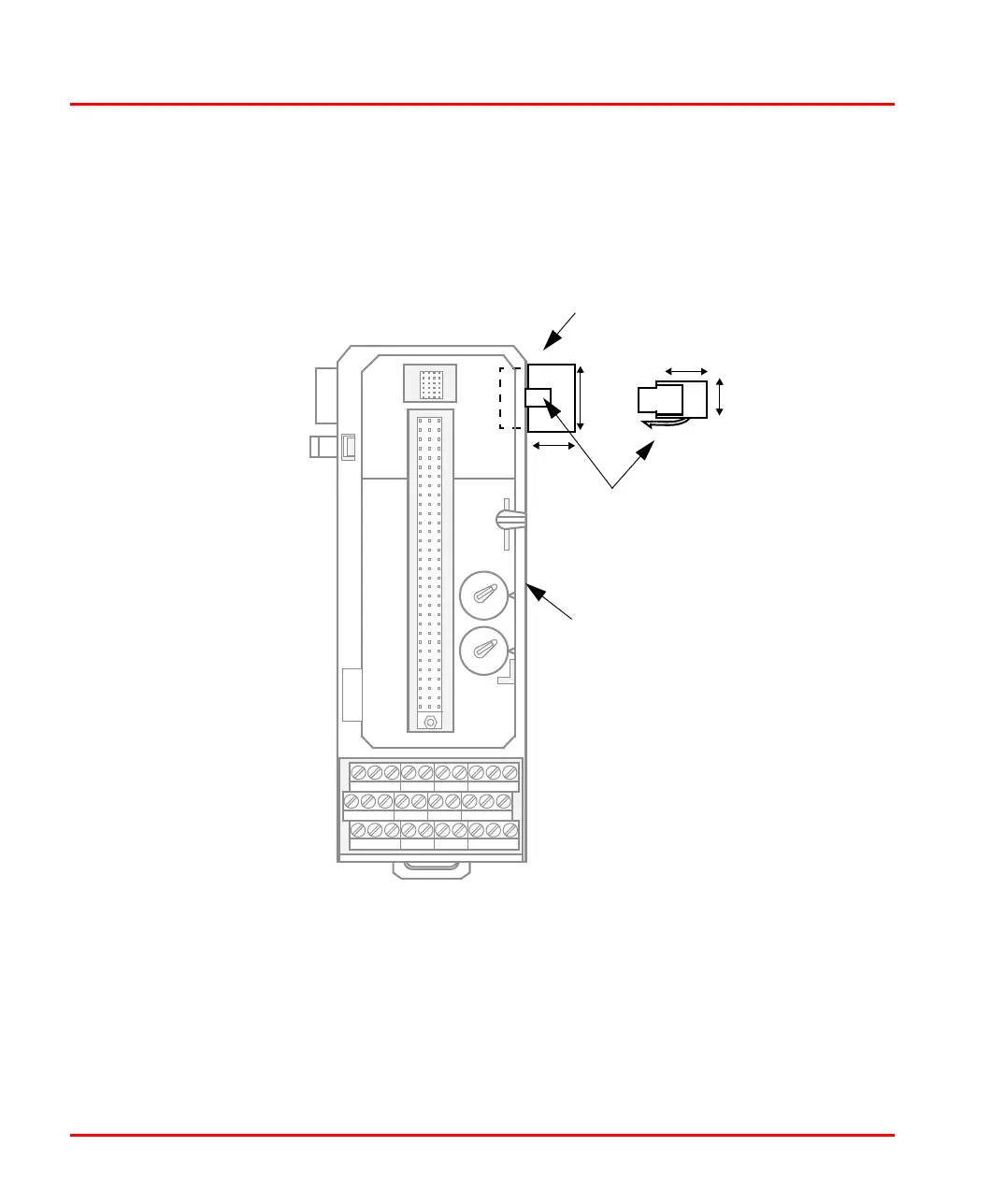

Figure 39. ModuleBus Terminator Module
A
B
C
D
E
F
A
B
C
D
E
F
ModuleBus Terminator
Top View
C1234567C8
B1234567B8
A1234567A8
L1+ L2+
L2-L1-
L2+L1+
TB807
ModuleBus
Connector (X1)
MTU Assembly
13 mm
(0,52”)
(0,52”)
13 mm
(0,52”)
18 mm
(0,71”)
Latch
19 mm
(0,75”)
