Installation procedure

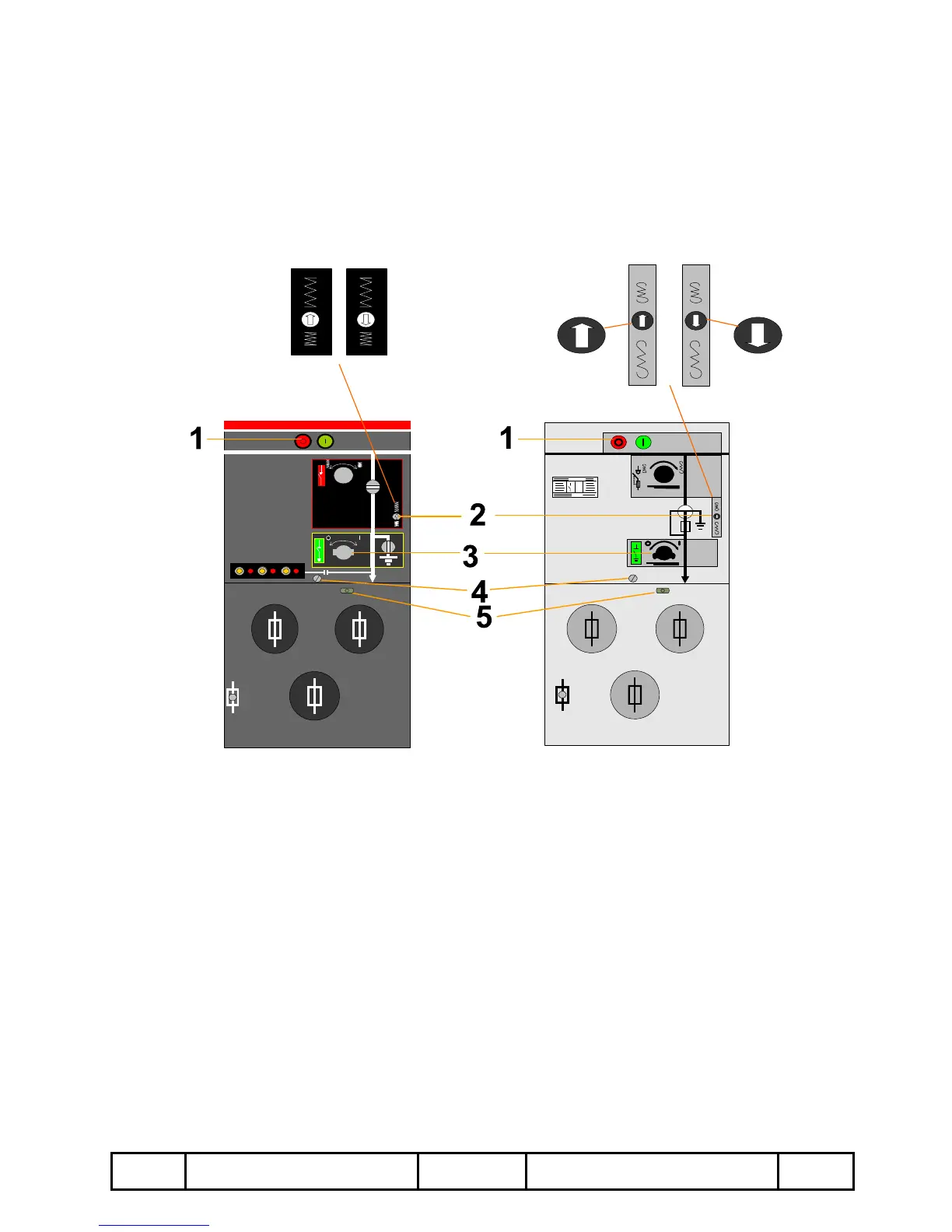

The pictures and drawings are for an F module, but this document is also valid for C and Sl modules
with latched mechanism
Bilder og tegninger er av et F-felt, men dette dokumentet er også gyldig for C- og Sl-felt med forspent
fjær
Operating
springs
not charged
Koblingsfjærer
ikke forspent
Operating
springs
charged
Koblingsfjærer
forspent
Operating
springs
not charged
Operating
springs
charged
Koblingsfjærer
ikke forspent
Koblingsfjærer
forspent
Used until May 2007
Brukt inntil mai 2007
Existing front covers
Dagens frontdeksler
1. Operate the switch-fuse-disconnector to open position
Betjen lastbryteren til utkoblet stilling
2. Verify that the operating springs are not charged
Kontroller at koblingsfjærene ikke er forspente
3. Operate the earthing switch to closed position
Betjen jordslutter til innkoblet posisjon
4. Unscrew the fixing screw and remove the upper front cover
Løsne festeskruen og fjern det øvre frontdekselet
5. Open the lower front cover
Åpne det nedre frontdekselet
ABB
ABB Technology Ltd.
Edition
1.0
Document No.
1VDD200027
Sheet No.
4/15

ABB SafePlus Specifications

General

Rated voltage	Up to 24 kV
Rated current	Up to 1250 A
Insulation medium	SF6 gas
Rated Lightning Impulse Withstand Voltage	125 kV
Standards	IEC 62271-200
Dimensions	Varies by configuration
Weight	Varies by configuration
Short-time withstand current	Up to 25 kA
