ABB SafePlus Installation Instructions

We reserve all rights in this document and in the information contained therein: Reproduction, use or disclosure to third
parties without express authority is strictly forbidden. © ABB Technology Ltd.
6
*

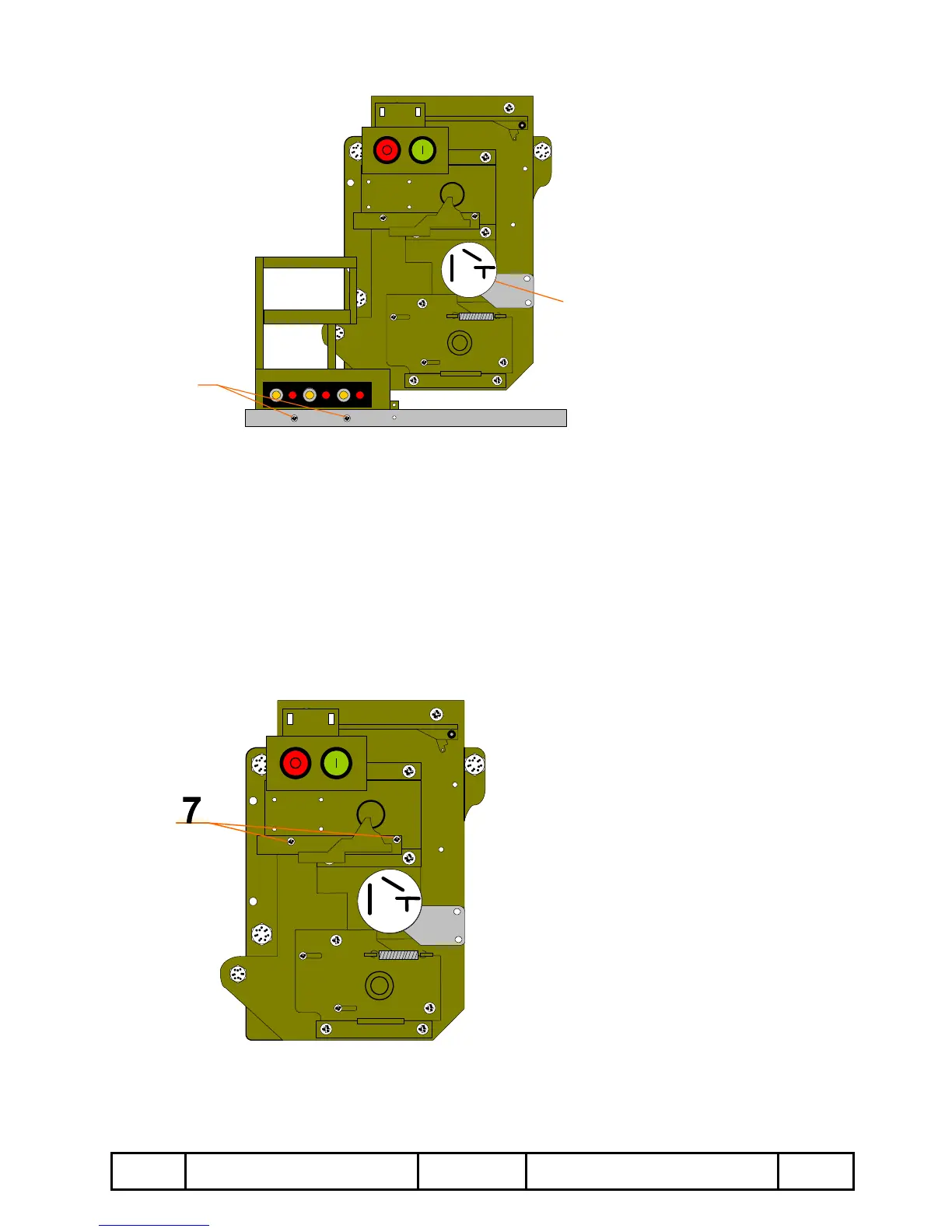

6. Unscrew and remove the bracket for capacitive voltage indication
Skru av braketten for kapasitiv spenningsindikering
*Depending on SafeRing / SafePlus production year, the position
indicator may be different compared to the drawing above. Please
refer to Appendix A, if your position indicator is different
*Avhengig av når SafeRing / SafePlus anlegget er produsert, kan
stillingsindikeringen være forskjellig fra tegningen over. Hvis dette er
tilfelle, vennligst se Appendix A for eldre stillingsindikatorer
7. Unscrew and remove the padlock bracket
Skru av hengelåsbraketten
ABB
ABB Technology Ltd.
Edition
1.0
Document No.
1VDD200027
Sheet No.
5/15

ABB SafePlus Specifications

General

Rated voltage	Up to 24 kV
Rated current	Up to 1250 A
Insulation medium	SF6 gas
Rated Lightning Impulse Withstand Voltage	125 kV
Standards	IEC 62271-200
Dimensions	Varies by configuration
Weight	Varies by configuration
Short-time withstand current	Up to 25 kA
