ABB SafePlus Installation Instructions

We reserve all rights in this document and in the information contained therein: Reproduction, use or disclosure to third
parties without express authority is strictly forbidden. © ABB Technology Ltd.

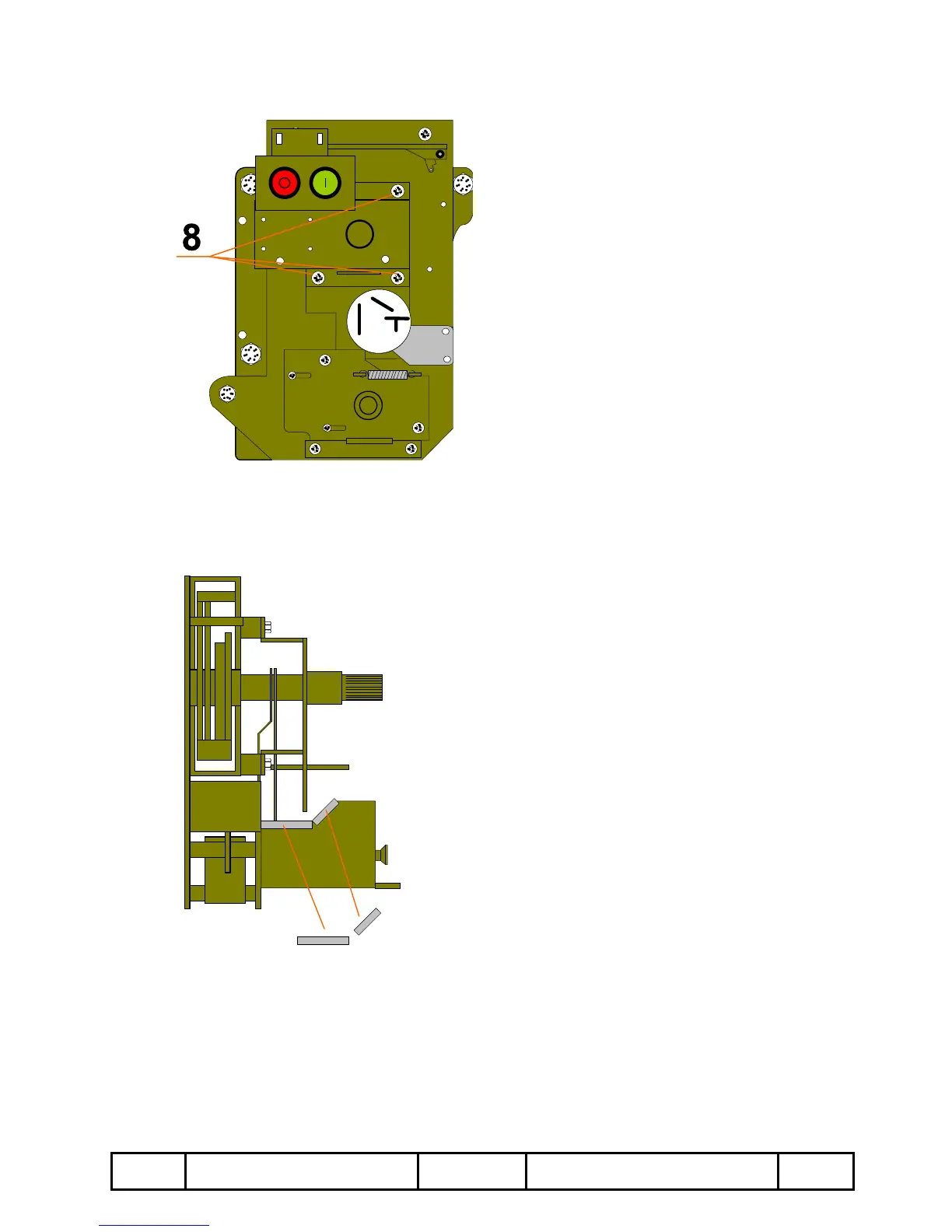

8. Unscrew and remove the bracket for the push buttons
Skru av braketten for trykknapper
9
9. Snap on protection on the edges of the mechanism to avoid
damage of wires
Monter kantbeskyttelse på mekanismen for å unngå skade på
ledninger
ABB
ABB Technology Ltd.
Edition
1.0
Document No.
1VDD200027
Sheet No.
6/15

ABB SafePlus Specifications

General

Rated voltage	Up to 24 kV
Rated current	Up to 1250 A
Insulation medium	SF6 gas
Rated Lightning Impulse Withstand Voltage	125 kV
Standards	IEC 62271-200
Dimensions	Varies by configuration
Weight	Varies by configuration
Short-time withstand current	Up to 25 kA
