42/23-55 EN Rev. 1 SCC-C Sample Gas Cooler Operator’s Manual 19
Replacing Peristaltic Pump Pressure Rollers and Springs, continued

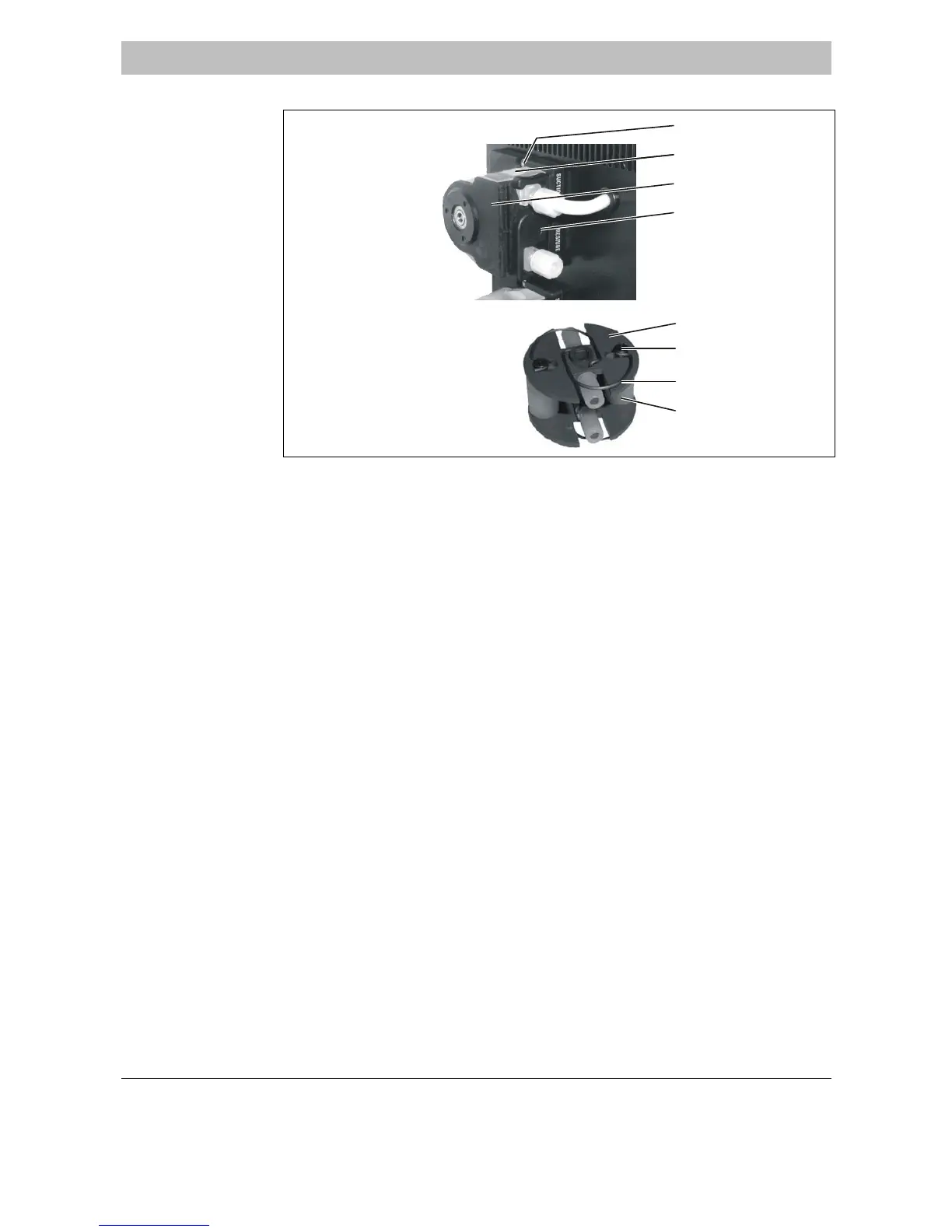

Fig. 6
Peristaltic Pump,
Roller Support
3
4
1
2
5
7
6
8
1 Moving Belt
2 S-Clip
3 Nuts for Securing the Pump Head (x 2)
4 Pump Head
5 Roller Support
6 Pressure Springs (x 4)
7 Roller Axle
8 Pressure Roller (x 2)
