11

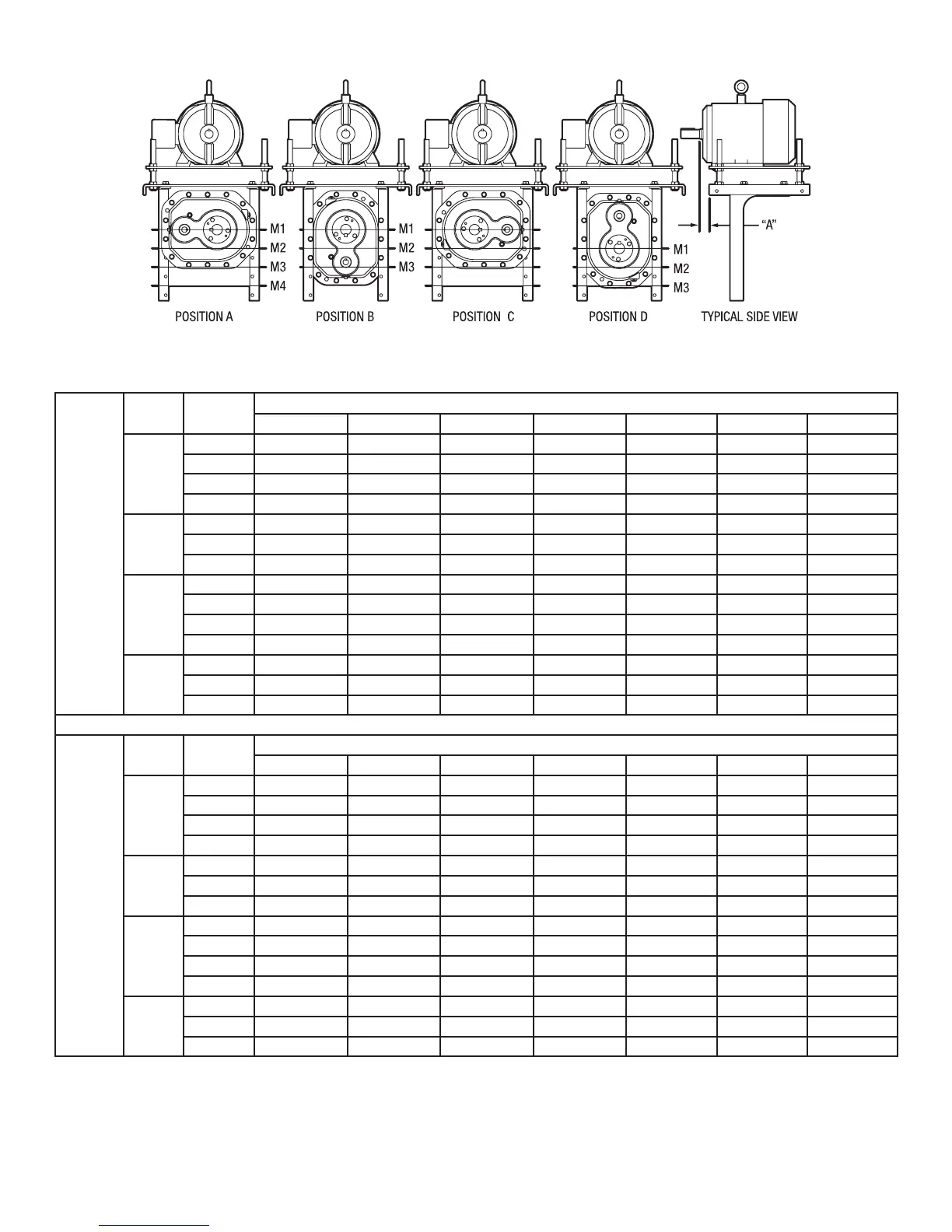

Figure 14 - Motor Mount Positions
Table 9 - V-Drive Center Distances
TA0107L
Reducer
Position Mounting
Motor Frame / Motor Shaft Offset Dimensions “A”
56T / A=.78 140T / A=1.22 180T / A=1.37 210T / A=1.55 250T 280T 320T
A
M1 14.4 – 18.2 14.4 – 18.2 15.4 – 19.2 16.2 – 19.9 ---- ---- ----
M2 16.8 – 20.5 16.8 – 20.5 17.8 – 21.5 18.5 – 22.3 ---- ---- ----
M3 19.1 – 22.9 19.1 – 22.9 20.1 – 23.9 20.8 – 24.6 ---- ---- ----
M4 21.5 – 25.2 21.5 – 25.2 22.5 – 26.2 23.2 – 27.0 ---- ---- ----
B
M1 17.2 – 21.0 17.2 – 21.0 18.2 – 22.0 19.0 – 22.8 ---- ---- ----
M2 19.6 – 23.4 19.6 – 23.4 20.6 – 24.4 21.3 – 25.1 ---- ---- ----
M3 22.0 – 25.8 22.0 – 25.8 23.0 – 26.8 23.7 – 27.5 ---- ---- ----
C
M1 12.6 – 16.4 12.6 – 16.4 13.6 – 17.4 14.3 – 18.1 ---- ---- ----
M2 14.9 – 18.7 14.9 – 18.7 15.9 – 19.7 16.7 – 20.4 ---- ---- ----
M3 17.3 – 21.1 17.3 – 21.1 18.3 – 22.1 19.0 – 22.8 ---- ---- ----
M4 19.6 – 23.4 19.6 – 23.4 20.6 – 24.4 21.4 – 25.2 ---- ---- ----
D
M1 11.8 – 15.6 11.8 – 15.6 12.8 – 16.6 13.5 – 17.3 ---- ---- ----
M2 14.1 – 17.9 14.1 – 17.9 15.1 – 18.9 15.9 – 19.7 ---- ---- ----
M3 16.5 – 20.3 16.5 – 20.3 17.5 – 21.3 18.3 – 22.1 ---- ---- ----
TA1107L
Reducer
Position Mounting.
Motor Frame / Motor Shaft Offset Dimensions “A”
56T / A=.78 140T / A=1.22 180T / A=1.37 210T / A=1.55 250T / A=1.56 280T 320T
A
M1 13.8 – 17.9 13.8 – 17.9 14.7 – 18.9 15.4 – 19.6 16.4-20.6 ---- ----
M2 16.2 – 20.5 16.2 – 20.5 17.2 – 21.4 17.9 – 22.2 18.9-23.2 ---- ----
M3 18.8 – 23.0 18.8 – 23.0 19.7 – 24.0 20.5 – 24.7 21.5-25.7 ---- ----
M4 21.3 – 25.6 21.3 – 25.6 22.3 – 26.6 23.0 – 27.3 24.0-28.3 ---- ----
B
M1 17.7 – 22.0 17.7 – 22.0 18.7 – 23.0 19.5 – 23.8 20.5-24.7 ----
M2 20.3 – 24.6 20.3 – 24.6 21.3 – 25.6 22.1 – 26.4 2 3.1-27.4 ---- ----
M3 22.9 – 27.2 22.9 – 27.2 23.9 – 28.2 24.6 – 29.0 25.6-30.0 ---- ----
C
M1 13.8 – 17.9 13.8 – 17.9 14.7 – 18.9 15.4 – 19.6 16.4-20.6 ----
M2 16.2 – 20.5 16.2 – 20.5 17.2 – 21.4 17.9 – 22.2 18.9-23.2 ---- ----
M3 18.8 – 23.0 18.8 – 23.0 19.7 – 24.0 20.5 – 24.7 21.5-25.7 ---- ----
M4 21.3 – 25.6 21.3 – 25.6 22.3 – 26.6 23.0 – 27.3 24.0-28.3 ---- ----
D
M1 11.3 – 15.7 11.3 – 15.7 12.3 – 16.7 13.1 – 17.4 14.1-18.4 ----
M2 13.9 – 18.2 13.9 – 18.2 14.9 – 19.2 15.7 – 20.0 16.7-21.0 ---- ----
M3 16.5 – 20.8 16.5 – 20.8 17.5 – 21.8 18.3 – 22.6 19.3-23. ---- ----
