11
Disassembly instruction tmaX Xt Xt7
22

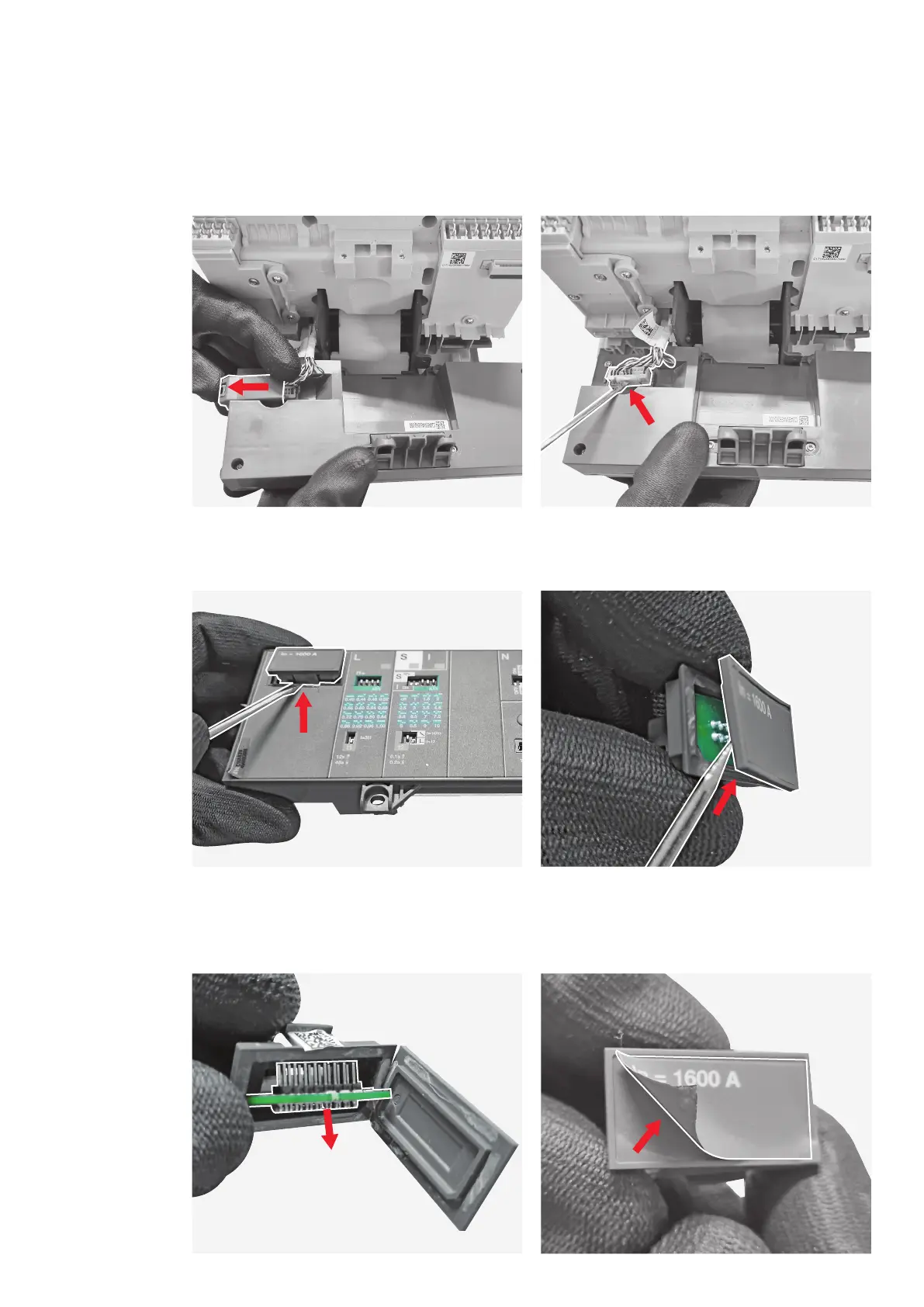

Manually push the cables protection as
indicated by the arrow and remove it.
24
By means of the flat screwdriver remove the
rating plug from the trip unit.
26
Let the rating plug printed circuit board
mounted inside the rating plug let fall by
gravity.
23
By means of the flat screwdriver disconnect
the connector from the trip unit and after
manually complete the removal of the trip unit.
25
By means of the flat screwdriver open the
rating plug.
27
By means of the cutter start removing the label
located on the front of the rating plug case and
manually complete the operation.
