ABB TMAX XT XT7 User Manual

19

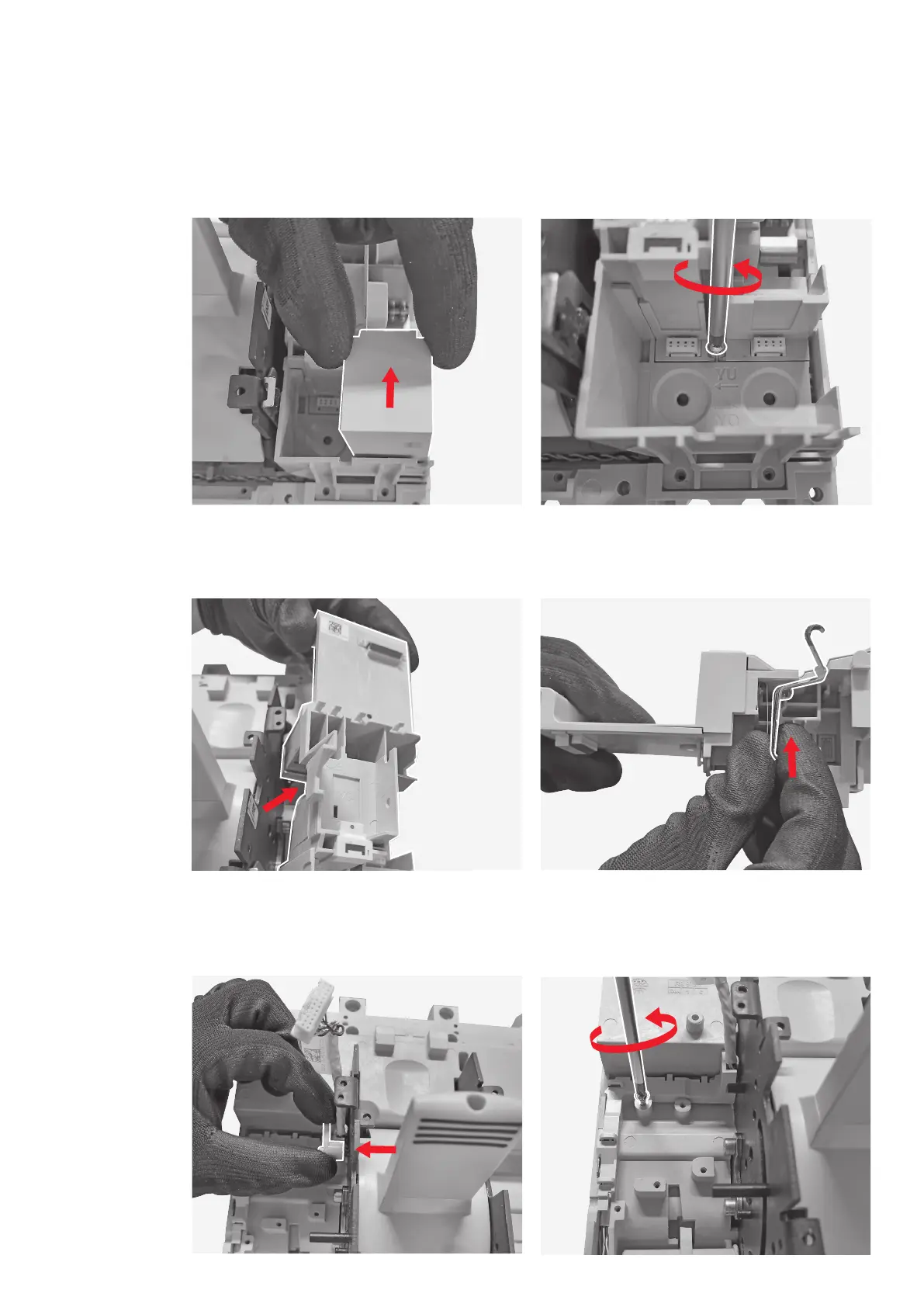

Disassembly instruction tmaX Xt Xt7
60
Manually lift and remove the shunt opening
release plug.
62
Manually complete the removal of the MID.
61
By means of the cross screwdriver unscrew
the screw fixing the MID to the circuit breaker
main structure.
63
Manually remove the auxiliary contacts lever
mounted on the MID.
64
Manually remove the SY lever mounted on the
left side of the operating mechanism.
65
By means of the cross screwdriver unscrew
the screw fixing the wires cover to the circuit
breaker main structure.
