Dismantling and installing the turbine diffuser
and nozzle ring
8.6


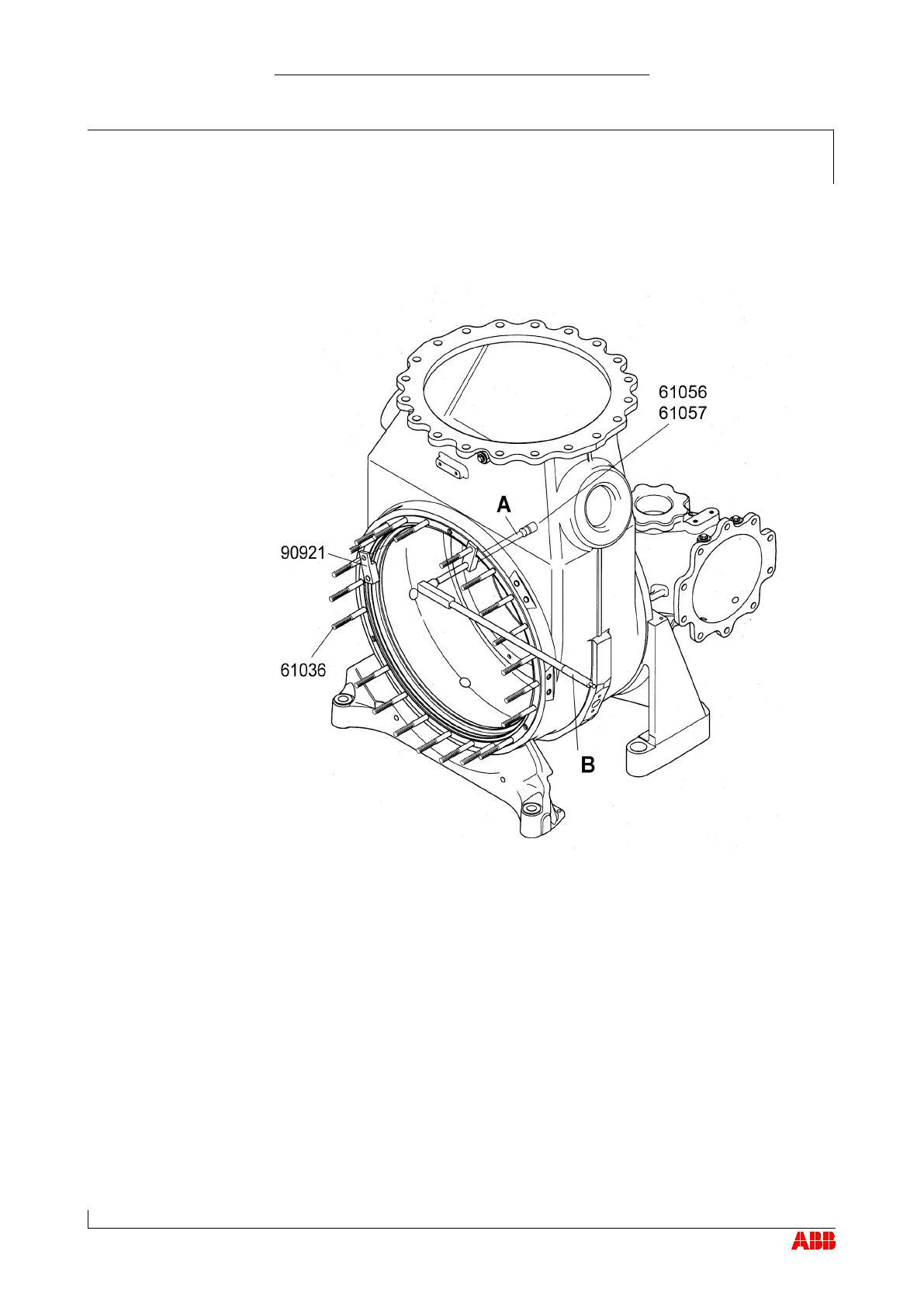

Put clamp (90921) over stud (61036) until it rests on inner radius of
gas outlet casing.
 Pass extension (
A
) of torque spanner (
B
) through hole in clamp and
only loosen screws (61056) one after other.
 Do not yet remove the screws (61056) and Verbus Ripp® washers
(61057).
8.6
Releasing the turbine
diffuser
