Operation Manual / TPL69-A10 / -A30 ... TPL77-A10 / -A30
8 Disassembly and assembly / 8.7 Installing cartridge group
© Copyright 2018 . All rights reserved. HZTL2481_EN Revision C May 2018

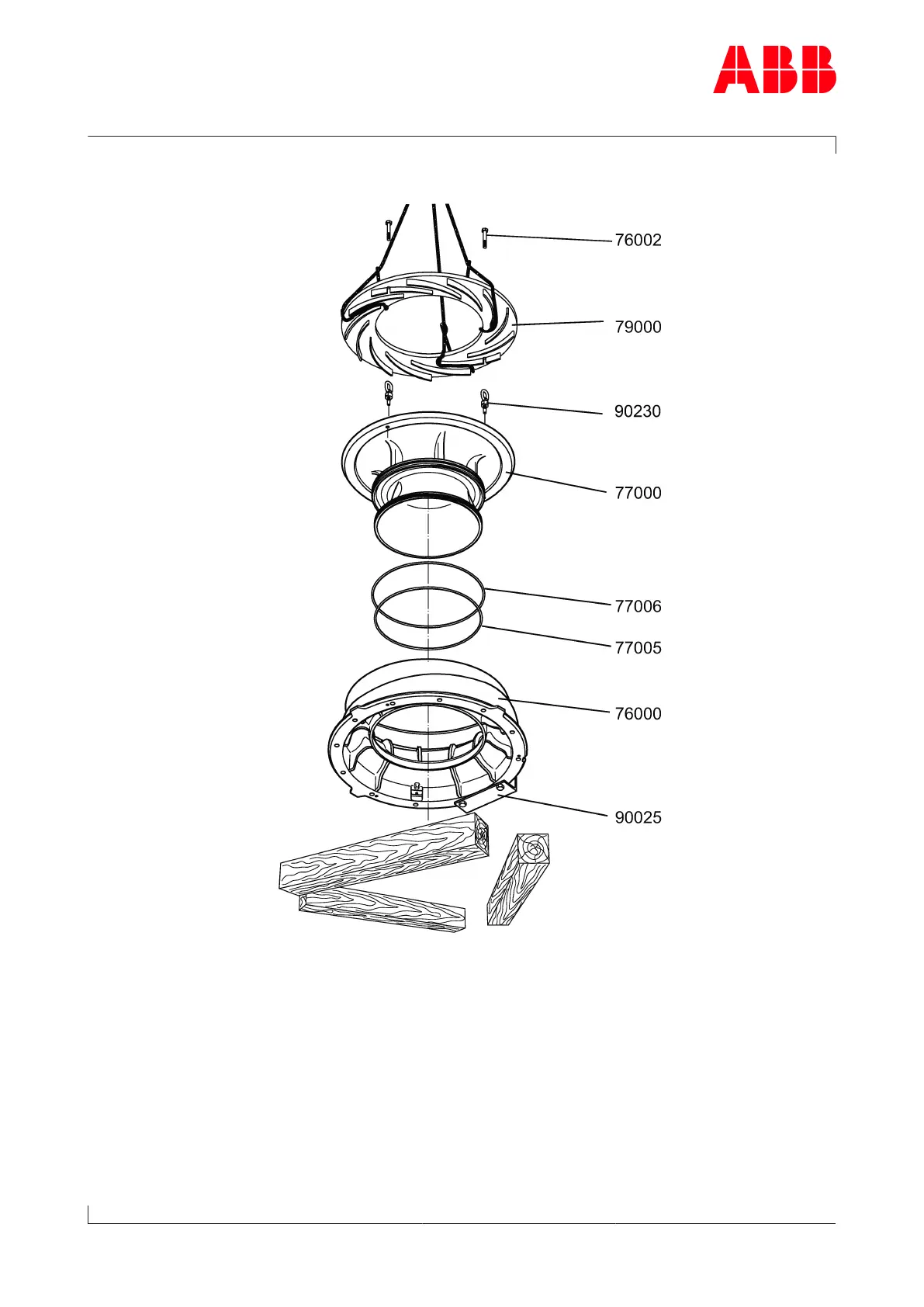

u Fit O-rings (77005 and 77006) to wall insert (77000).
u Fit lifting gear and swivel lifting eyes (90230).
u Align wall insert (77000) with threaded holes in compressor casing in-
ternal part (76000) using spigots on swivel lifting eyes and lower it.
u Loop the lifting gear around the diffuser (79000), align it with the
holes and lower it into position.
u Screw in the screw (76002) as far as it will go and then unscrew it by
¼ turn. The screw must be loose and the diffuser must be movable.
Page 103 / 136
