Operation Manual / TPL69-A10 / -A30 ... TPL77-A10 / -A30
8 Disassembly and assembly / 8.7 Installing cartridge group
© Copyright 2018 . All rights reserved. HZTL2481_EN Revision C May 2018

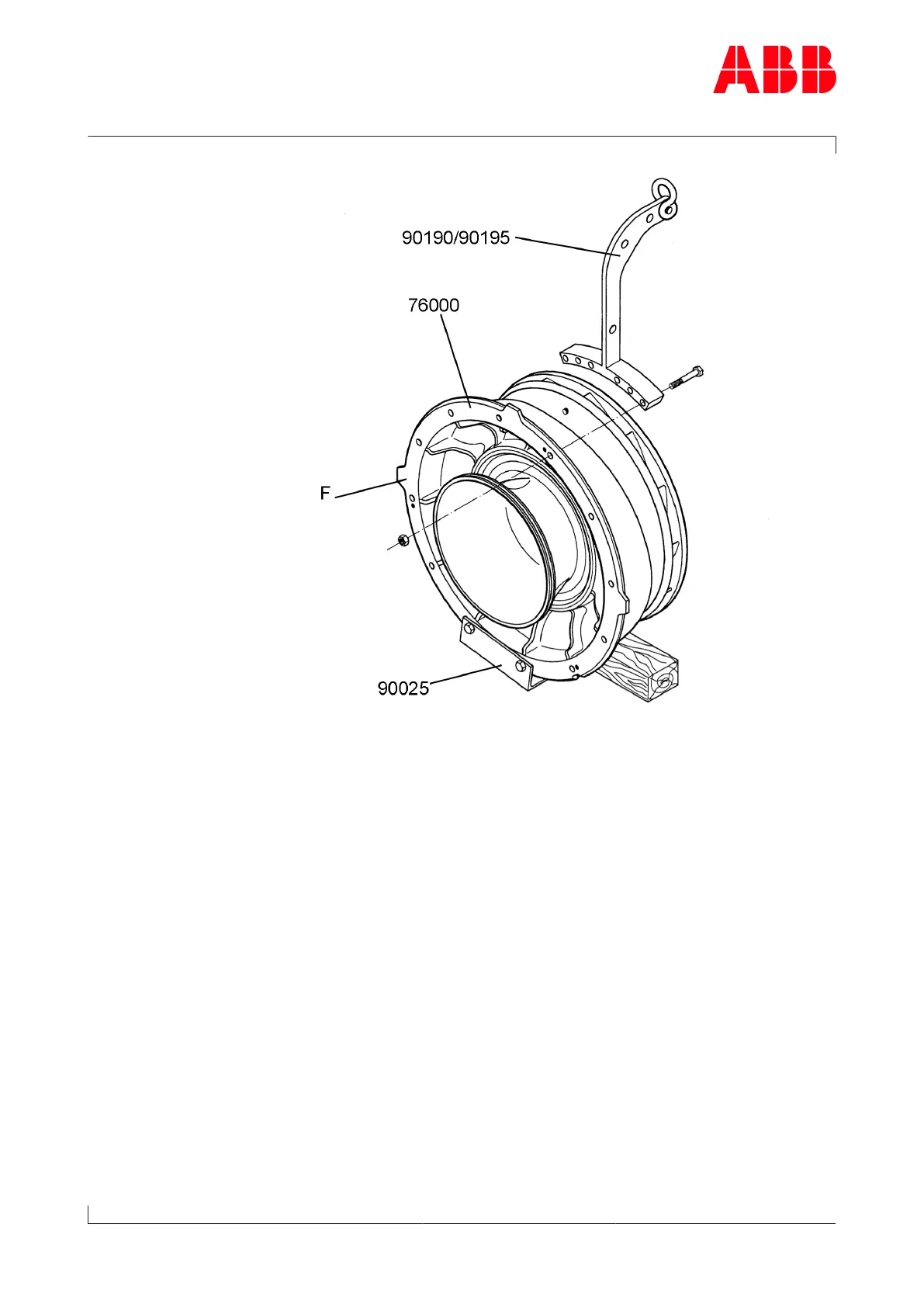

u Secure the lifting device (90190) and the shackle (90195) to the rear of
the flange (F).
u Carefully turn compressor casing internal part complete with wall in-
sert and diffuser about support angle (90025) into vertical position
and set down on underlay and support angle.
