Operation Manual / TPL69-A10 / -A30 ... TPL77-A10 / -A30
5 Maintenance / 5.2 Cleaning the filter silencer
© Copyright 2018 . All rights reserved. HZTL2481_EN Revision C May 2018

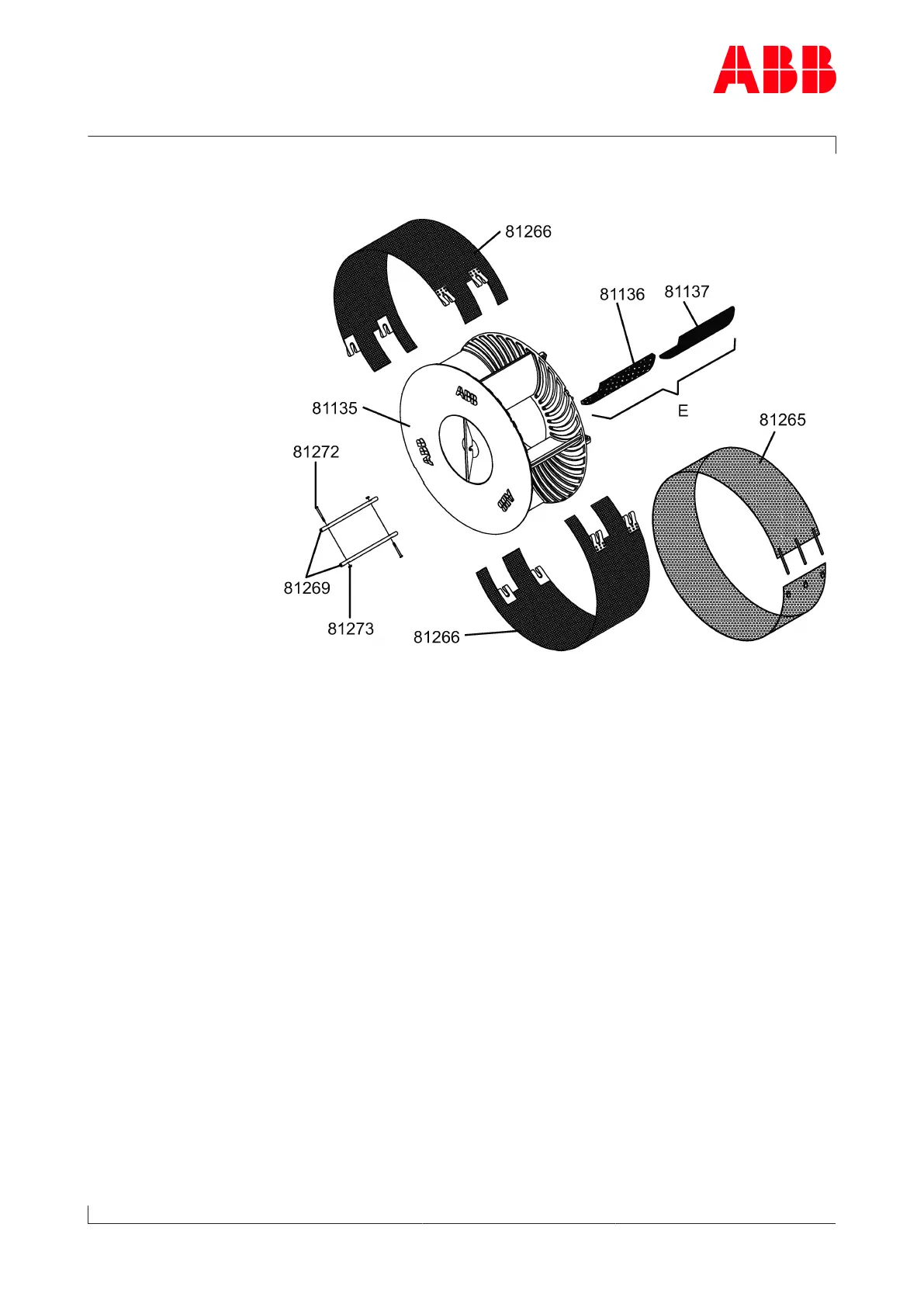

5.2.2 Filter silencer and connecting rod
81265 Filter ring (if provided) 81136 Absorption segment
81269 Connecting rods 81137 Sheet-metal covering
81266 Cover grid 81135 Filter silencer body
81272 Screwdriver 81273 Lock nut
E Insert unit = absorption segment + sheetmetal covering
Page 48 / 136
