Operation Manual / TPL69-A10 / -A30 ... TPL77-A10 / -A30
8 Disassembly and assembly / 8.5 Removing cartridge group
© Copyright 2018 . All rights reserved. HZTL2481_EN Revision C May 2018

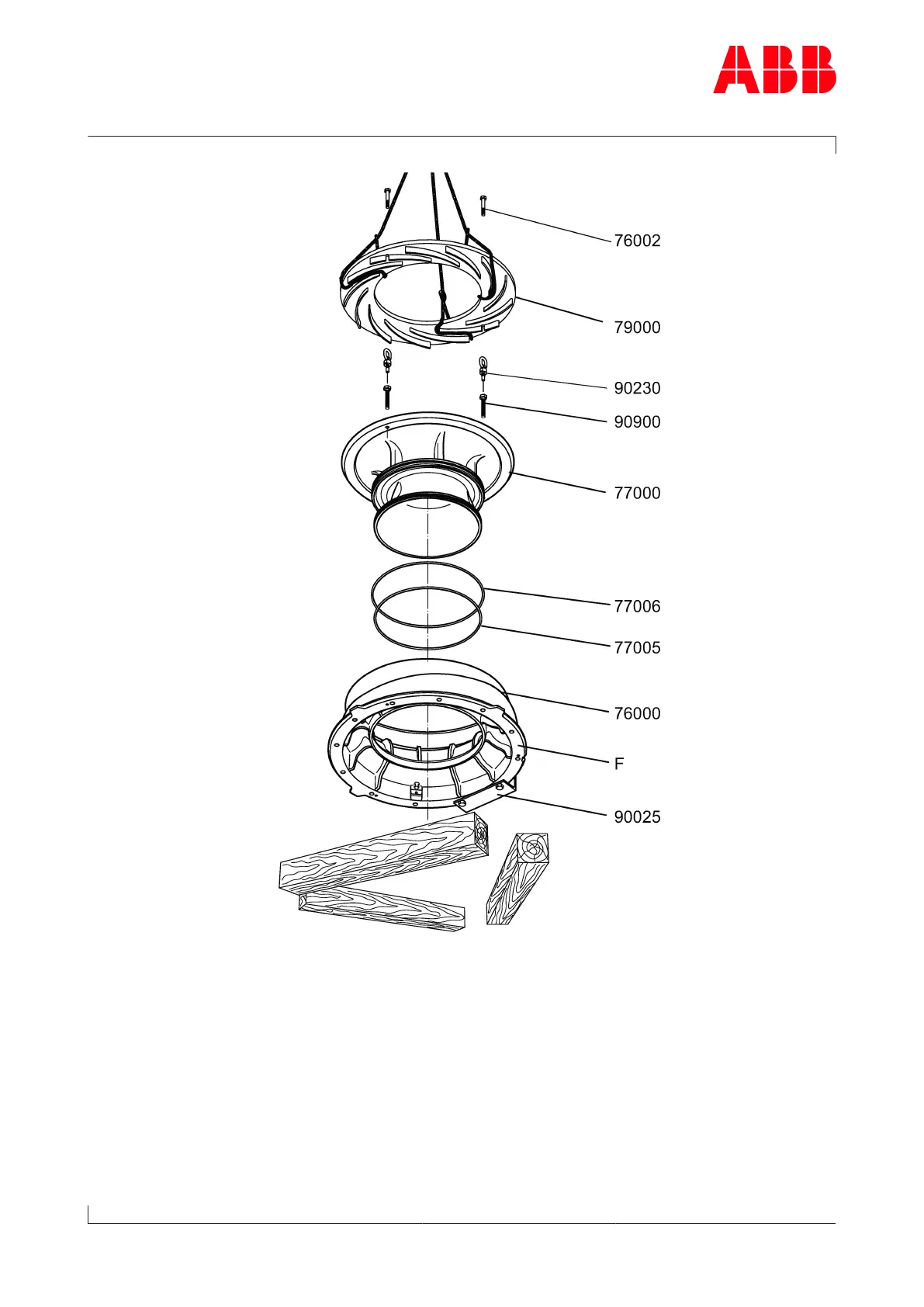

u Remove screws (76002).
u Loop lifting gear around diffuser (79000) and remove diffuser.
u Carefully press off the wall insert (77000) using the press-off screws
(90900) and remove it using the swivel lifting eye (90230).
u Remove O-rings (77005 and 77006).
Page 92 / 136
