Operation Manual / TPL69-A10 / -A30 ... TPL77-A10 / -A30
8 Disassembly and assembly / 8.5 Removing cartridge group
© Copyright 2018 . All rights reserved. HZTL2481_EN Revision C May 2018

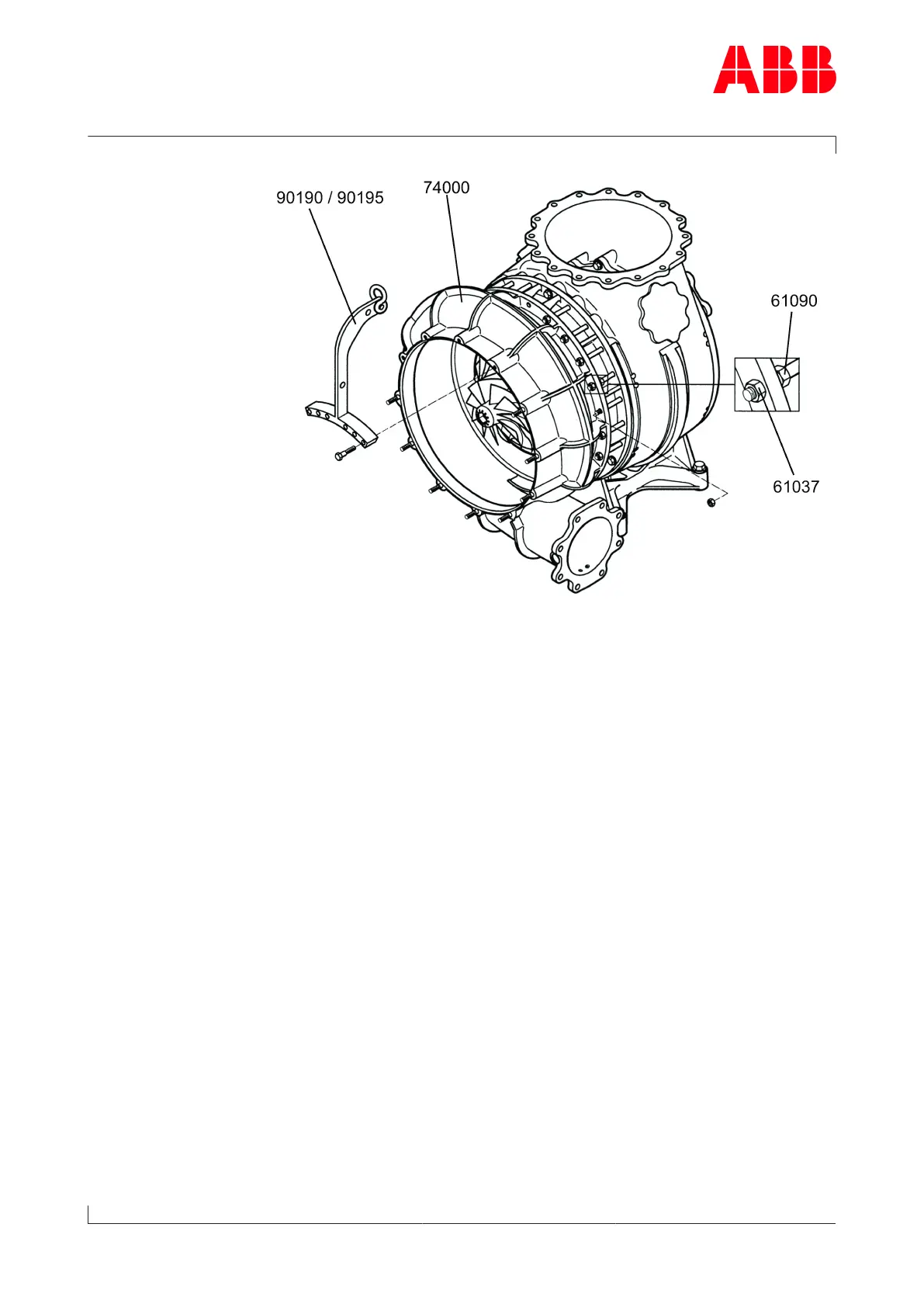

u Fasten the lifting device (90190) with shackle (90195) to the com-
pressor casing external part (74000) and secure it to the crane.
u Loosen nuts (61037).
u Uniformly press off compressor casing external part (74000) using
three press-off nuts (61090), remove it and set down to one side.
