ABB TPU Series User Manual

33
45
300
60°
207213
28
26
38
M8
Pg16
14
308
314
4
55
324
60°
45
70
R15
M10
192
420
15 360 45
150 178 250 150 107
4x
14

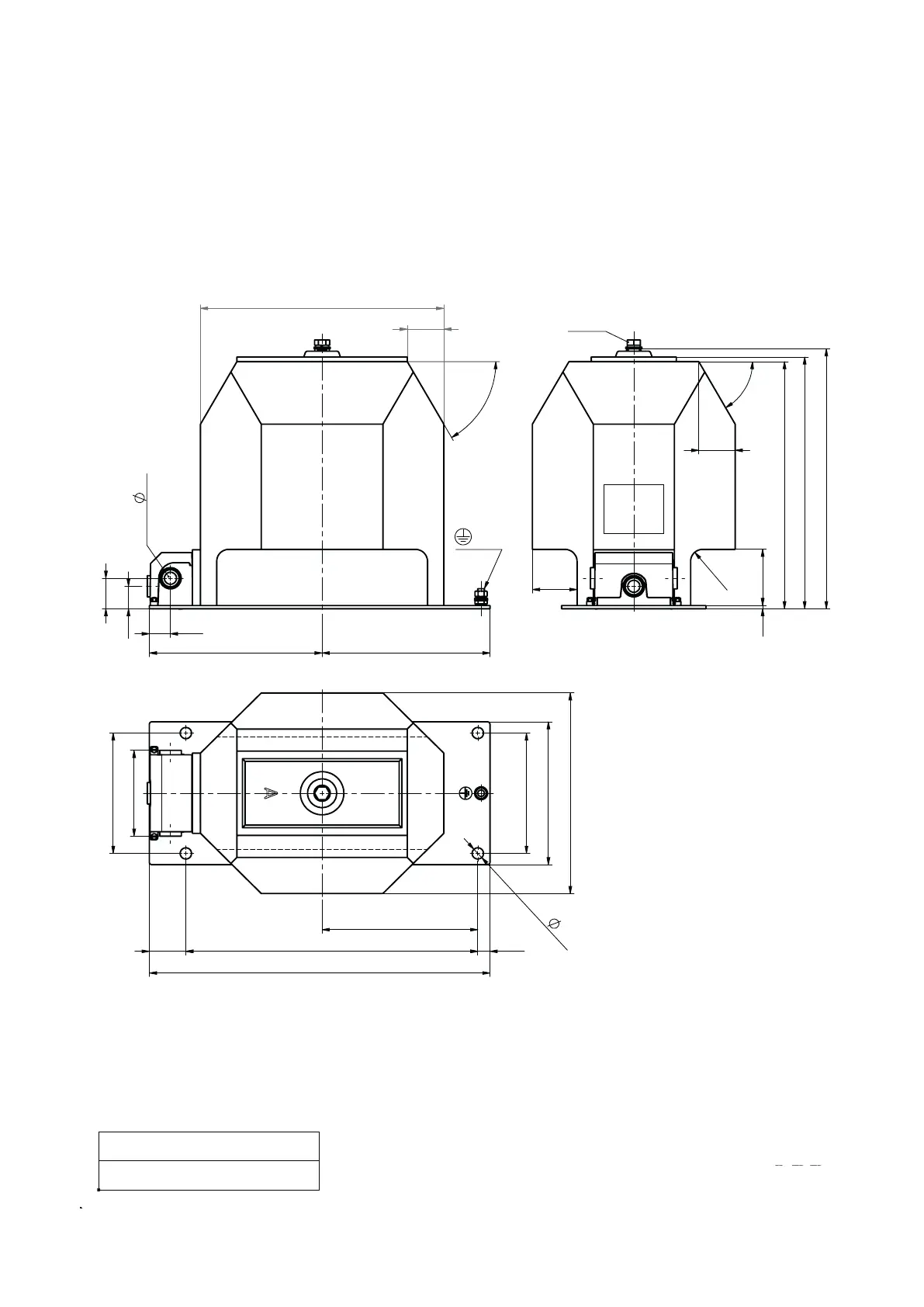

Drawing n.
1VL4200515R0101
TJC 7.1
WEIGHT: 48kg
CREEPAGE DISTANCE: 398mm


Creepage distance: 398 mm
—
TJC 7.1
narrow baseplate

ABB TPU Series Specifications

General

Category	Transformer
Series	TPU
Primary Voltage	Up to 36 kV
Cooling Type	ONAN / ONAF
Rated Power	Up to 5 MVA
Frequency	50 Hz / 60 Hz
Temperature Rise	As per applicable standards
Standards	IEC
Impedance	As per applicable standards
