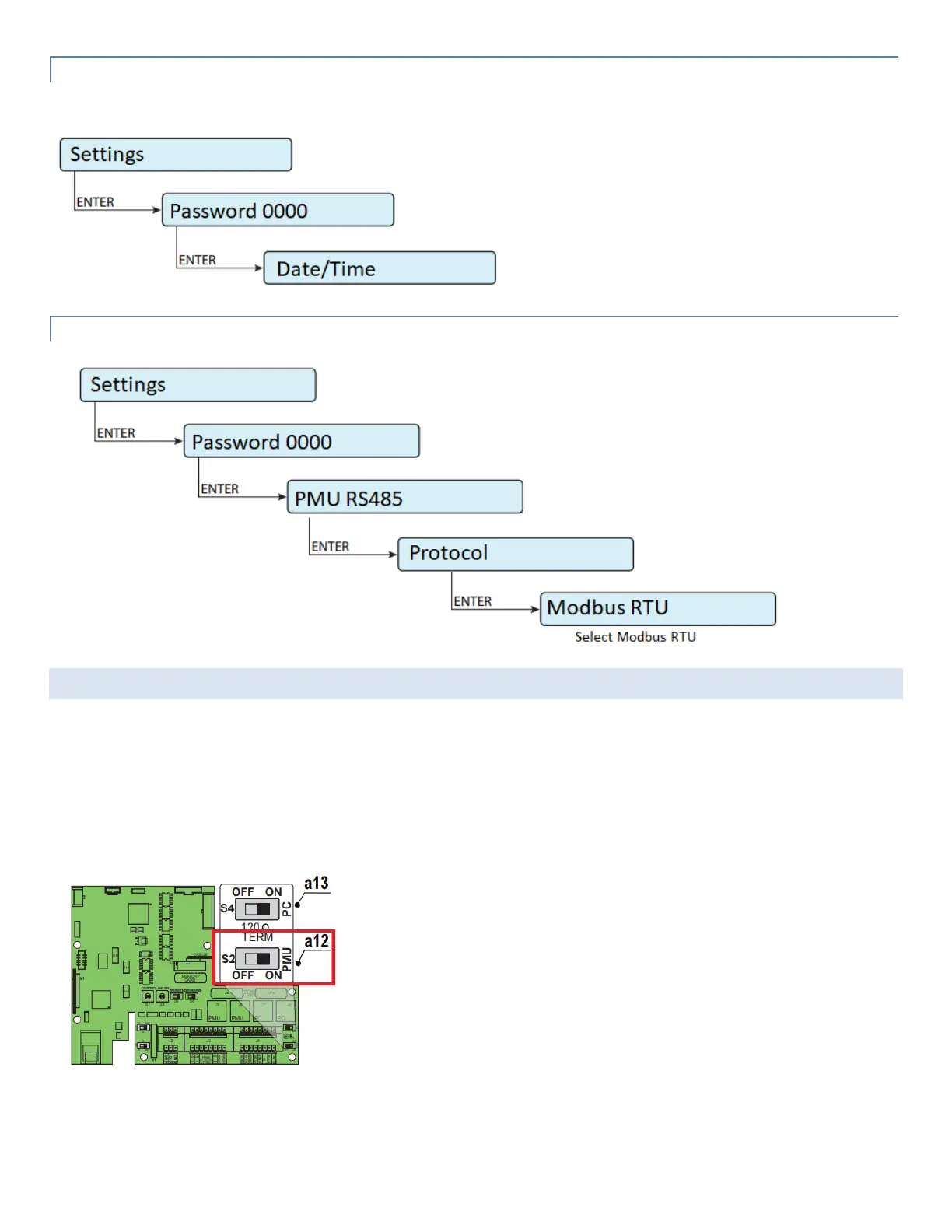

SET DATE & TIME OF I NVERTER
For a precise calculation of the statistics in the inverter itself and in a monitoring system, date and time have to be correct.
SET COMMUNICATION PROTOCOL
Communication Card Settings
Set the RS-485 termination resistance based on where the inverter is located in a daisy chain
Single Inverters
If a single inverter is connected to the monitoring system, activate the termination resistance of the communication line by
switching switch a12 or a13 (to ON position).
