3 Design and function

Pos: 9 /Aufbau und Funktion/ Temperatur/TTR200/ Aufbau und Funktion @ 15\m od_1195565201671_31 01.doc @ 141694

Digital transmitters are communication-ready devices with microprocessor-controlled

electronics. For bidirectional communication, an FSK signal is superimposed on the 4 … 20 mA

output signal via the HART protocol. The transmitters meet the requirements of the IP 20

protection class and are designed for 35 mm rail mounting.

The graphic user interface (DTM) can be used to configure, poll and test the transmitter on a

PC-specific basis. Handheld terminals also support communication.

Pos: 10 /==== Leeres Modul mit einer Absatzmarke, IM, 1-spaltig ==== @ 14\mod_1 194422545687_0.doc @ 136717

Pos: 11 /Überschrif ten/1/M - O/Montage @ 0\mod_1 140519732218_3101.doc @ 3159

4 Installation

Pos: 12 /Montage/Te mperatur/TTR200/Montag e auf einer Hutschiene @ 15\ mod_1195567921843_31 01.doc @ 141743

The transmitter is mounted apart from the sensor on a 35 mm rail acc. to EN 60175.

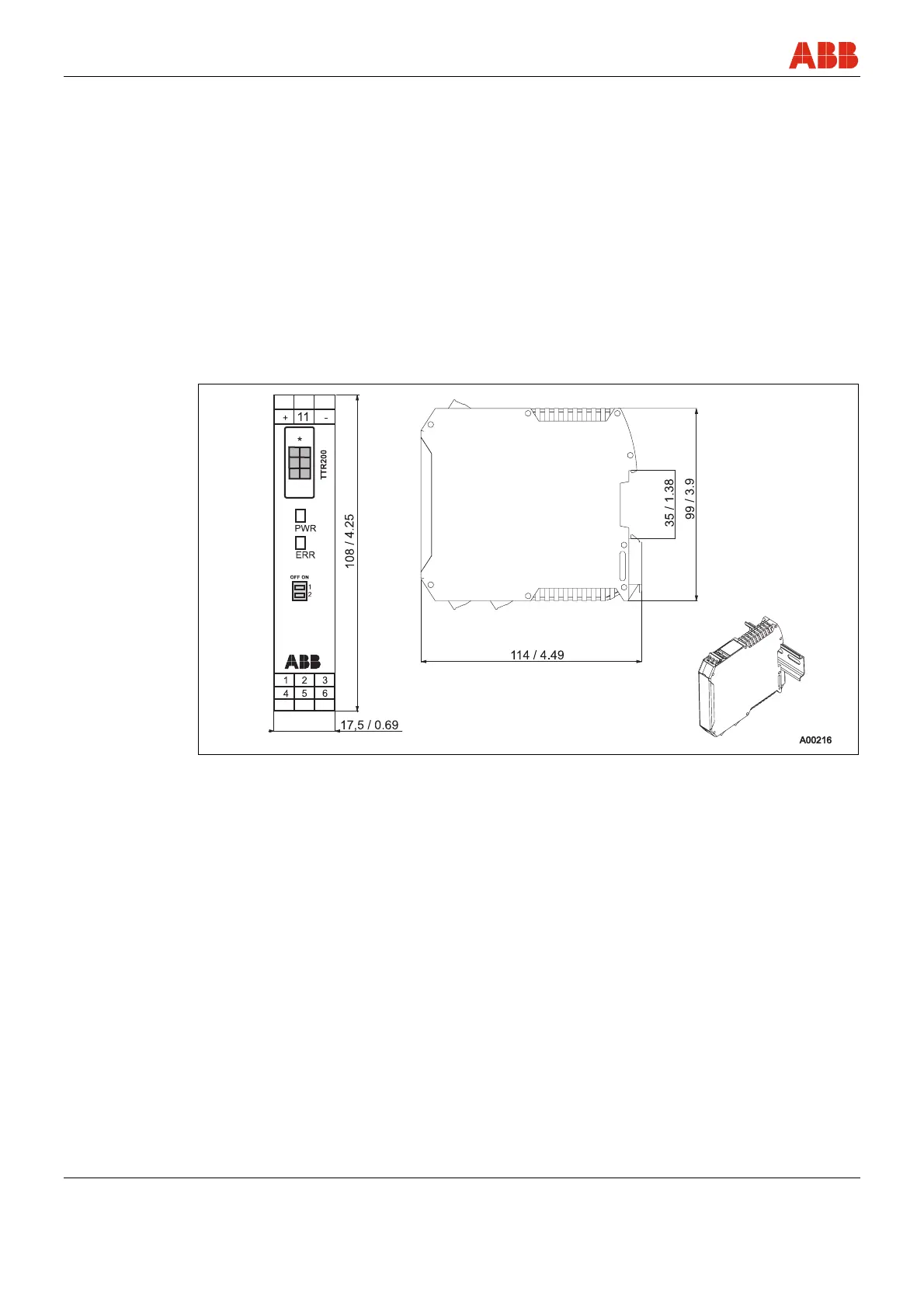

Fig. 2
