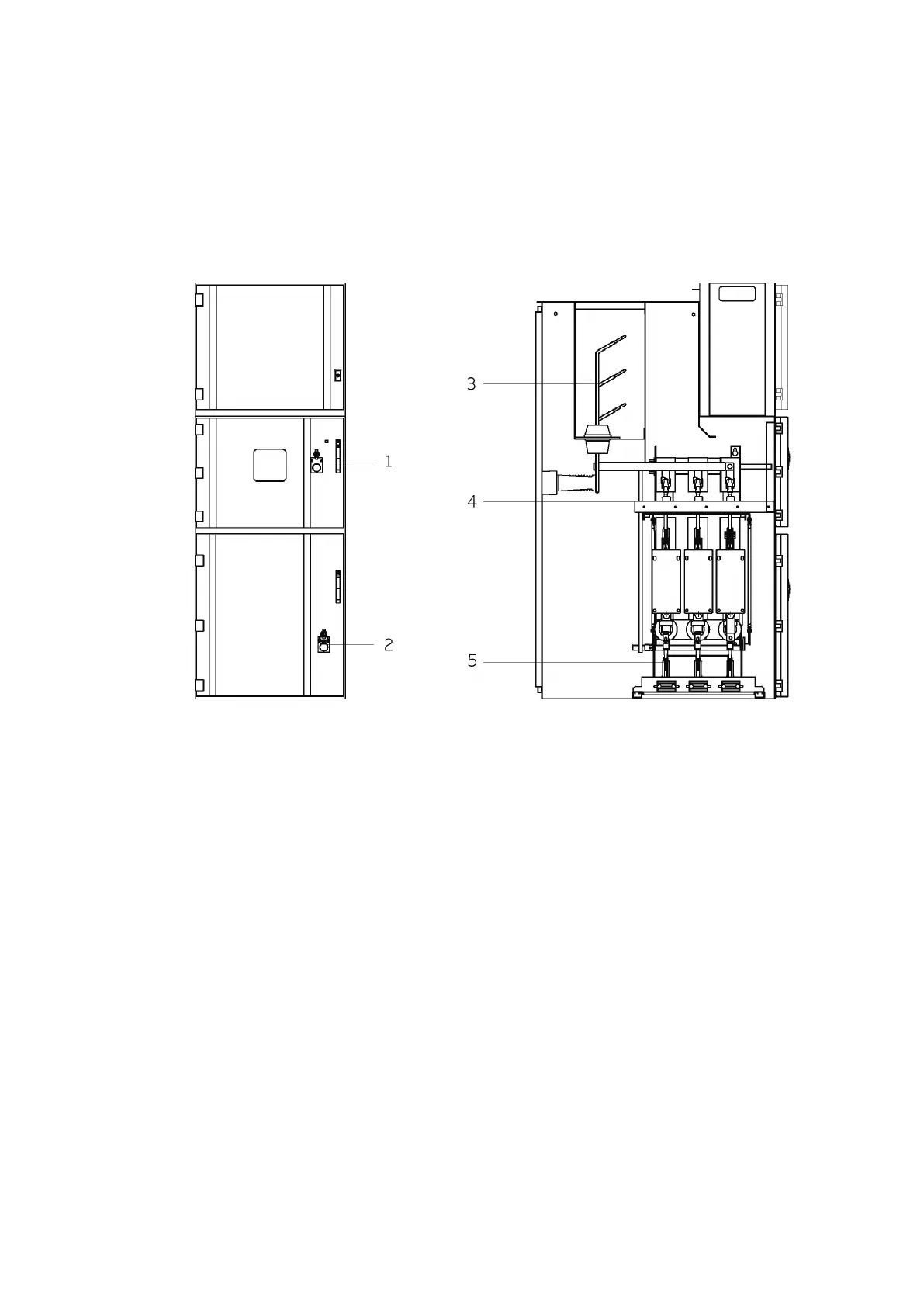

Figure 6: UniGear ZS1 17.5 kV with switch-disconnector with fuses and earthing switch
1 Switch-disconnector operating mechanism
2 Earthing switch operating mechanism
3 Branch conductor
4 Switch-disconnector
5 Earthing switch
—
