ABB V-Contact VSC7/P

10
A
E
C
D
F
B
During handling, take great care not to
stress the insulating parts of the apparatus
and the terminals of the contactor.
Any operation carried out on the contactor
must be done without the presence of
voltage and with the main protection device
open: danger of electrocution and/or severe
burns.
Make sure that operations are carried out
with the main and auxiliary power off.
Onreceipt,immediatelycheckintegrityofthepackingandthe
colourofthe“SHOCKWATCH”indicator(Fig.1)placedonit.
Ifthe“SHOCKWATCH”impactindicatorisWHITE,itmeans
that the packing has not received any notable shocks during
transport.Openthepacking,removethecontactoras
indicatedbelow,andcheckthestateoftheapparatusand
itscorrespondencewiththenameplatedata(seefig.2)with
what is specified in the accompanying shipping note and in
the order confirmation sent by ABB.
Ifthe“SHOCKWATCH”impactindicatorisRED,followthe
instructions indicated on the plate.
Opening the packing does not damage its components and it
can therefore be re-instated using the original material.
Thecontactorisshippedinspecialpacking,intheopen
position.
Each piece of apparatus is protected by a plastic cover
to prevent any infiltration of water during the loading and
unloading stages and to keep the dust off during storage.
Toremovethecontactorfromthepacking,proceedas
follows:
– open the plastic bag
– removethecontactor,avoidinganystresstothefunctional
insulating parts and the terminals of the apparatus.
– use the special lifting plates for the withdrawable version
– check the rating plate characteristics to make sure that the
performances are suitable for the destined application and
that they are those indicated in the order confirmation.
Should any damage or irregularity be noted in the supply
onunpacking,notifyABB(directlyorthroughtheagentor
supplier) as soon as possible and in any case within five days
of receipt.
The apparatus is only supplied with the accessories specified
at the time of ordering and validated in the order confirmation
sent by ABB.
The accompanying documents inserted in the shipping
packing are:
– instructionmanual(thisdocument)
– test certification
– identification label
– fiscal copy of the shipping advice note
– electric wiring diagram.

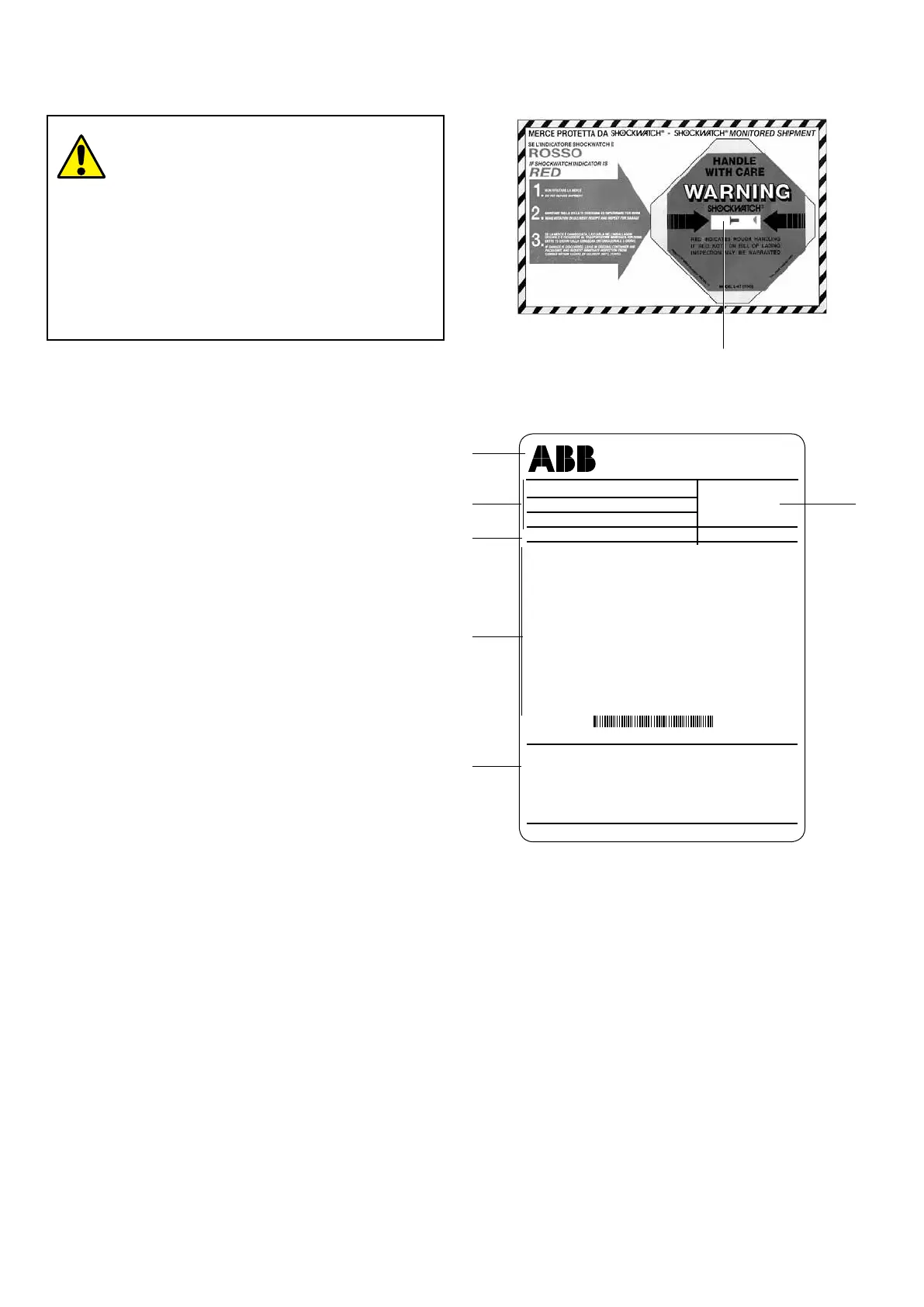

Shock indicator
Fig. 1
Ur VOLTAGE ... kV
Up LIGHTING IMPULSE WITHSTAND VOLTAGE ... kV
Ud POWER FREQUENCY WITHSTAND VOLTAGE ... kV
fr FREQUENCY ... Hz
Ie RATED OPERATING CURRENT ... A
M MASS ... kg
ALTITUDE CLASS < 1000 m
ELECTRICAL DIAGRAM 1VCD4 . . . . . . . . . . (. . . . .)
FIG. 01 . . . . . .
ALXXXXXXXXXXXXX
VACUUM CONTACTOR
V-Contact VSC/P IEC 62271-106
SN 1VC1 AL . . . . . . . . . . . . . . . . PR. YEAR ......
A Trademark
B Type of apparatus
C Serial number
D Characteristics of the apparatus
E Characteristics of the control auxiliaries
F Reference standards
Ua AUXILIARY VOLTAGE . . . . . . . . . . . .
Fig. 2
Made by ABB, Italy
2. Checking on receipt
Other documents which are sent prior to shipment of the
apparatus are:
– order confirmation
– original shipping advice note
– any drawings or documents referring to special
configurations/conditions.
