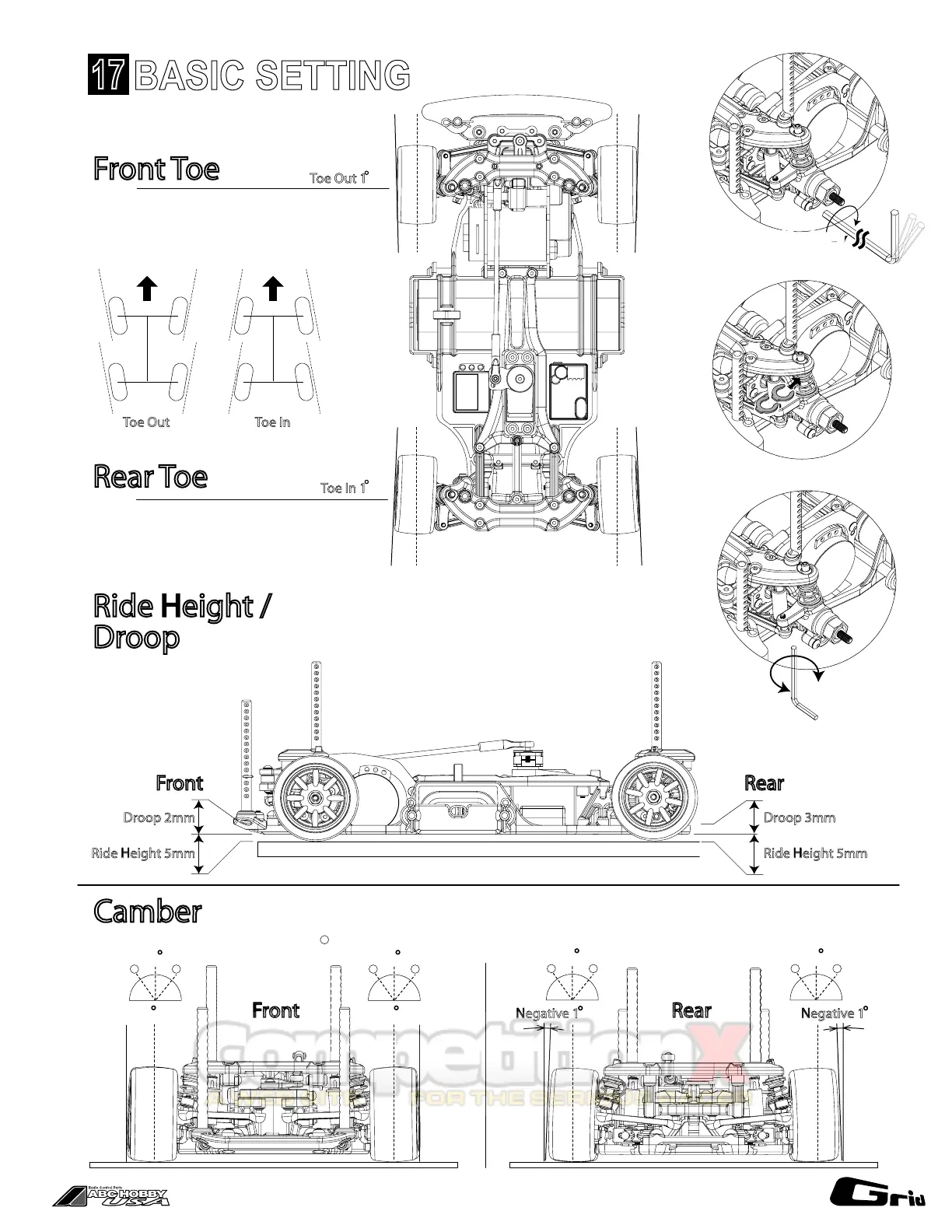

Front Toe
Toe Out 1
Rear Toe
Toe In 1
Toe Out Toe In
Ride Height /
Droop
Camber
Droop 2mm
Ride Height 5mm
Droop 3mm
Ride Height 5mm
Front
Front
Rear
Rear
Negative 1Negative 1
Negative Camber Positive CamberPositive Camber Negative Camber
00
Negative Camber Positive CamberPositive Camber Negative Camber
00
0 0
Camber
Ride Height
Droop
Forward Forward
Toe In :
Movement at the steering operation becomes calm.
Toe Out :
Movement at the steering operation becomes quick.
Toe In :
Increase >> Stability improves.
Decrease >> Rear slide becomes early.
Toe Out :
You must not make the rear toe-out.
Adjust the length of the steering
ball of the lower knuckle, then
Change a camber.
Adjust the length of the steering
ball of the lower knuckle, then
Change a camber.
Attache washer for change ride-height
Turn the 3x8mm screw, them change droop.
Camber : Adjust a traction in the roll.
Increase Negative Camber >> Traction feeling improves. (The excessive negative loses traction, and a tire is worn.)
Positive Camber >> Don`t make this setting by On-road car.
Ride Height :
A horizontal state is a neutral characteristic.
Nose Down >> Movement at the steering operation becomes quick.
Tail Down >> Rear slide becomes early.
Droop :
Adjust a traction in the roll.
Decrease Front Droop >> Movement at the steering operation
becomes quick.
Decrease Rear Droop >> Rear slide becomes early.
17
BASIC SETTING
