Choose the Saver
Serration much
with your servo.
Saver Serration
Use the screw from your servo.
Saver Serration
Servo Horn
Servo Horn
Saver Spring
(Gold)
X 2
Saver Spring
(Silver)
4.8 mm Ball Stud
3 mm Nut
Saver Cap
Saver
Spring
(Silver)
Saver
Spring
(Gold)
90 Degrees
3 mm Nut
4.8 mm Ball Stud
Transmitter
Antenna Wire
Receiver
Switch
Steering Servo
Speed Controller
Connect
to Motor
Connector
Battery
Steering Reverse Switch
All electronics stuffs are not included in this kit.
The position of the
reverse switch
varies according to
a transmitter.
**When the power is ON, the servo horn should
be in the neutral position as shown in the picture.
Set the reverse
switch of the
transmitter so that servo
Horn moves in the direction
of the arrow when you operated
a steering to the right.
2
3

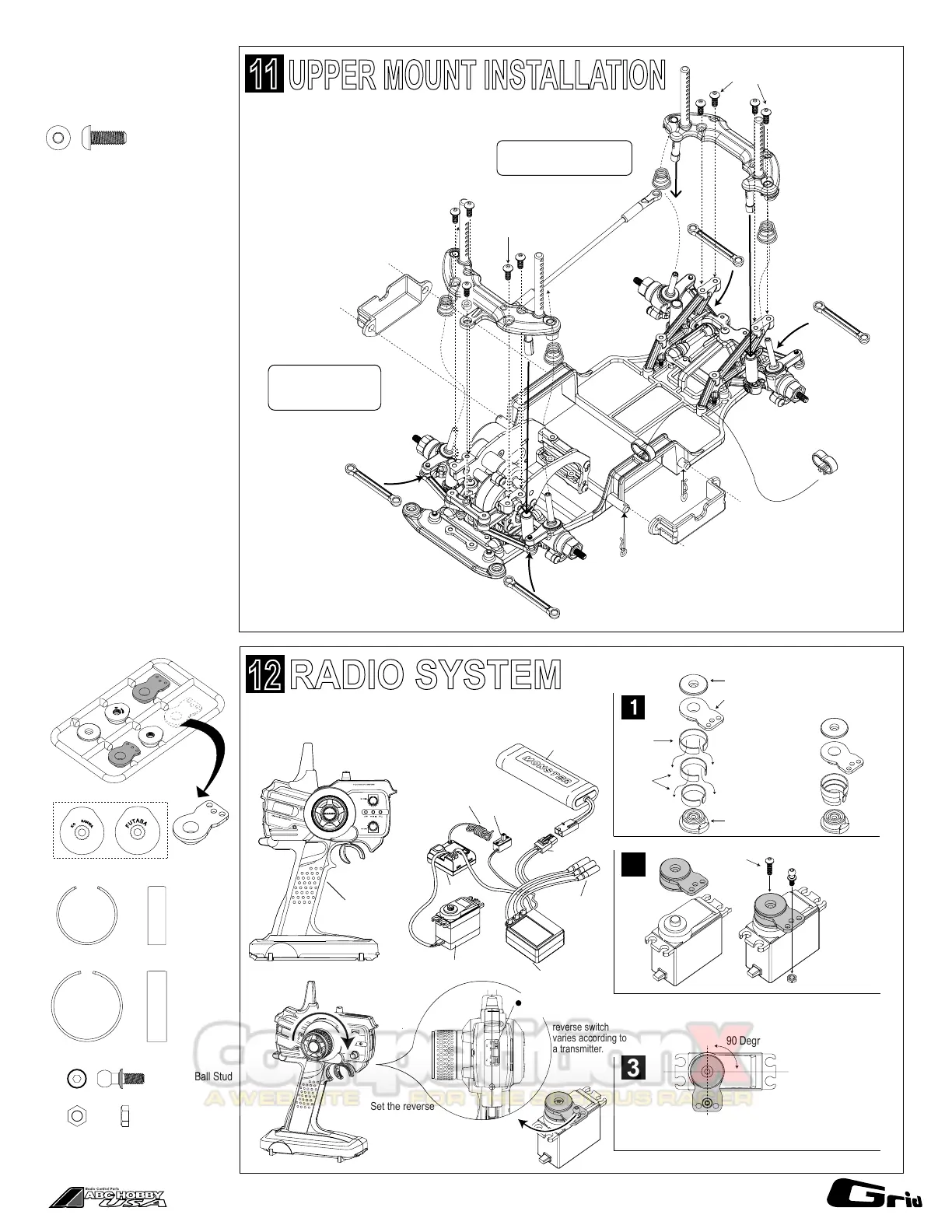

RADIO SYSTEM
3 x 8 mm
Button Screw
2523
12
UPPER MOUNT INSTALLATION
Sandwich all springs between
knuckle and kingpin balls.
Insert the dumper piston
with grease applied on
each dumper sleeve.
3 x 8 mm Button Screw
3 x 8 mm
Button Screw
Battery Cover
Tie Rod
Tie Rod
Tie Rod
Battery Cover
Cable Cramp
Click !
Click !
Click !
Click !
11
To Next Page
