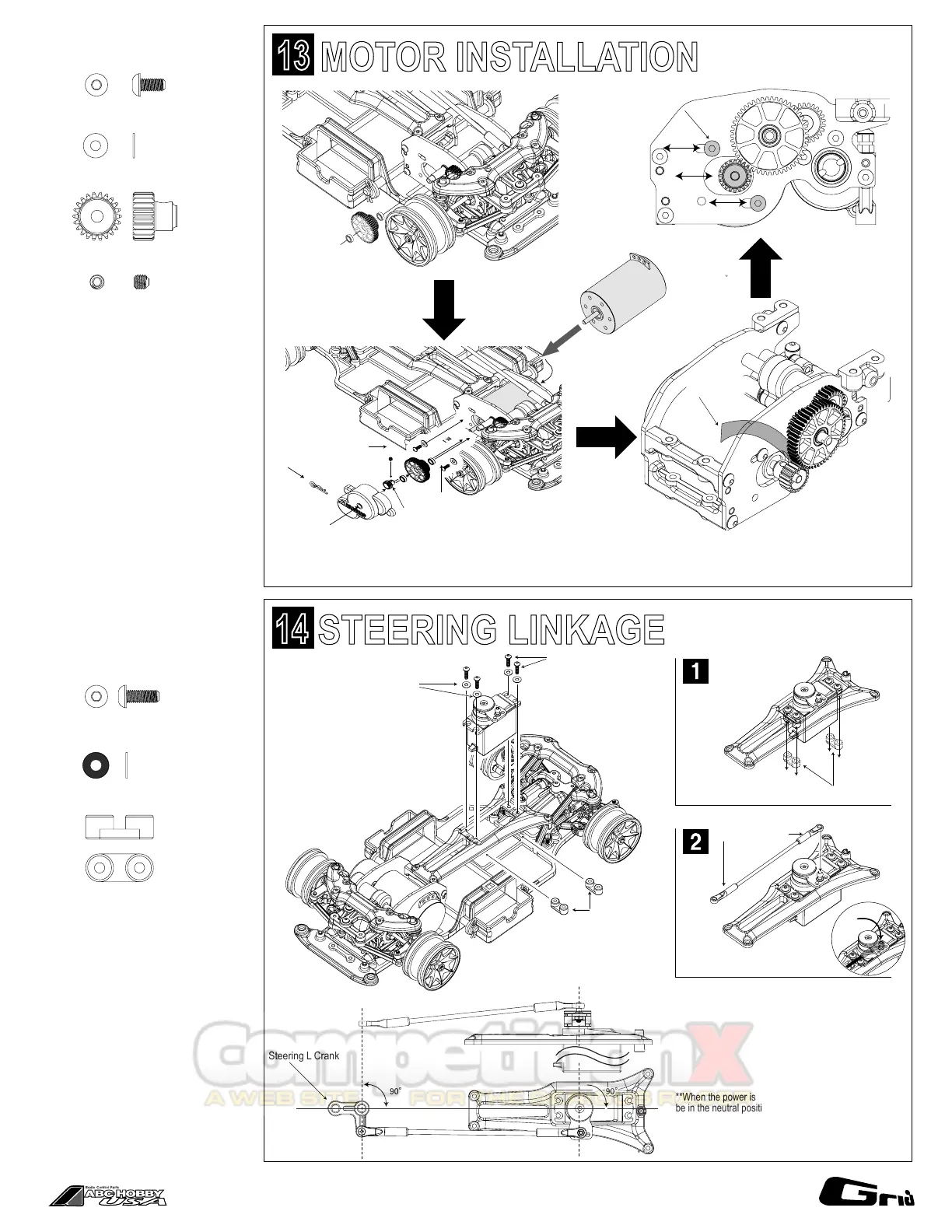

540 Size

Motor

Remove Spur Gear

and bearings.

Attach a motor with 3X6mm Button Screw.

Attach a counter gear, after put on a pinion gear.

After then, attach gear cover with body clip.

To get a perfect gear mesh, place a piece of paper

between the gears and tighten the motor mount

screws. Adjust motor position for smooth gear mesh.

Copy Paper

3 x 6 mm

Button Screw

3 x 6 mm Washer / Silver

22T Pinion Gear

(48 Pitch)

3 x 3 Set Screw

3 x 6 mm

Button Screw

3 x 6 mm Button Screw

22T Pinion Gear

(48 Pitch)

3 x 3 Set Screw

3 x 8 mm

Button Screw

3 x 7 mm Washer / Black

3 x 8 mm Button Screw

Servo Holder

Steering L Crank

Steering Rod End

Click !

**When the power is ON, the servo horn should

be in the neutral position as shown in the picture.

STEERING LINKAGE

MOTOR INSTALLATION
