Installing the Motherboard 2-7
User’s Manual

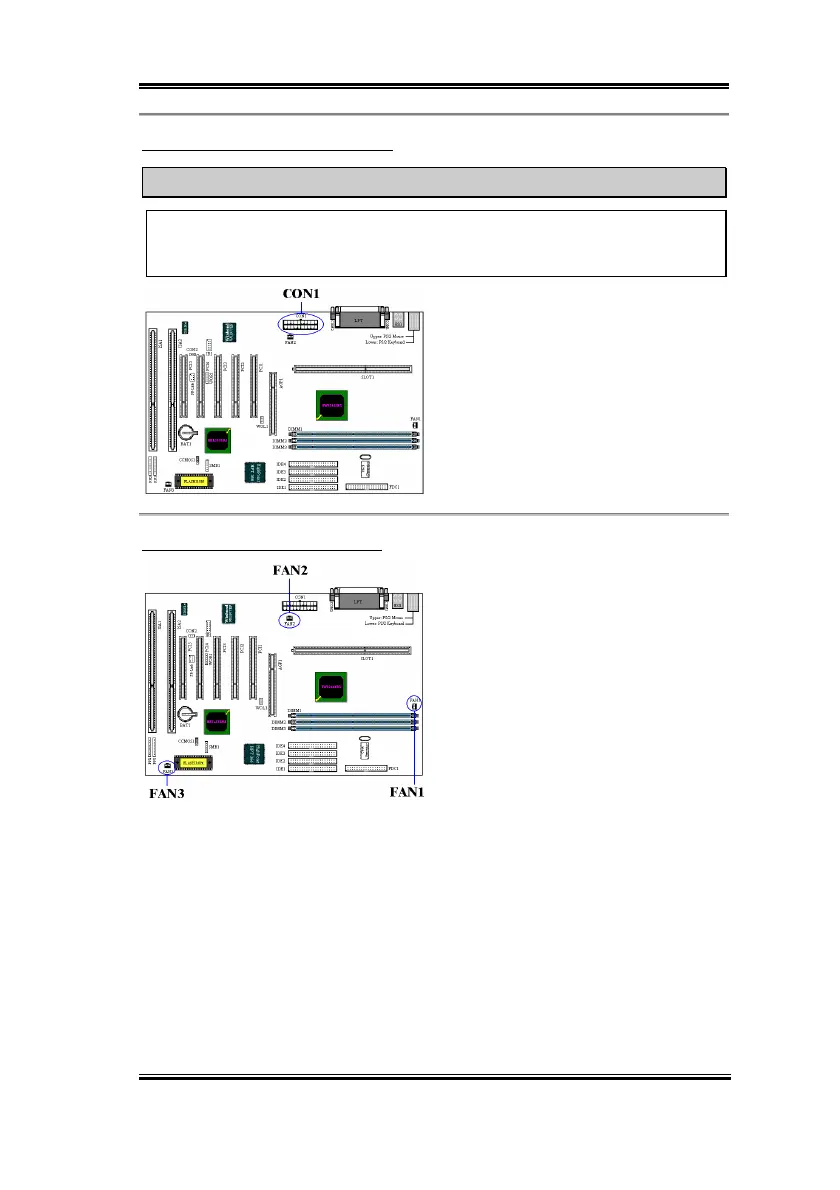

CON1: ATX Power Input Connector
Caution
If the power supply connectors are not properly attached to the CON1 power supply, the
power supply or add-on cards may be damaged.
Attach the connector from the power supply
to the CON1 connector here. Remember you
have to push the connector from the ATX
power supply firmly to the end with the
CON1 connector, insuring that you have a
good connection.
Note: Watch the pin position and the
orientation
FAN1, FAN2 & FAN3: FAN header
Attach the connector from the individual
CPU fan to the header named FAN2, and
attach the connector from the chassis fan to
FAN1 or & FAN3 header.
You must attach the CPU fan to the
processor, or your processor will work
abnormally or may be damaged by
overheating. Also, if you want the computer
case’s internal temperature to be kept steady
and not too high, you had better connect the
chassis fan to reach this goal.
Note: Watch the pin position and the orientation
