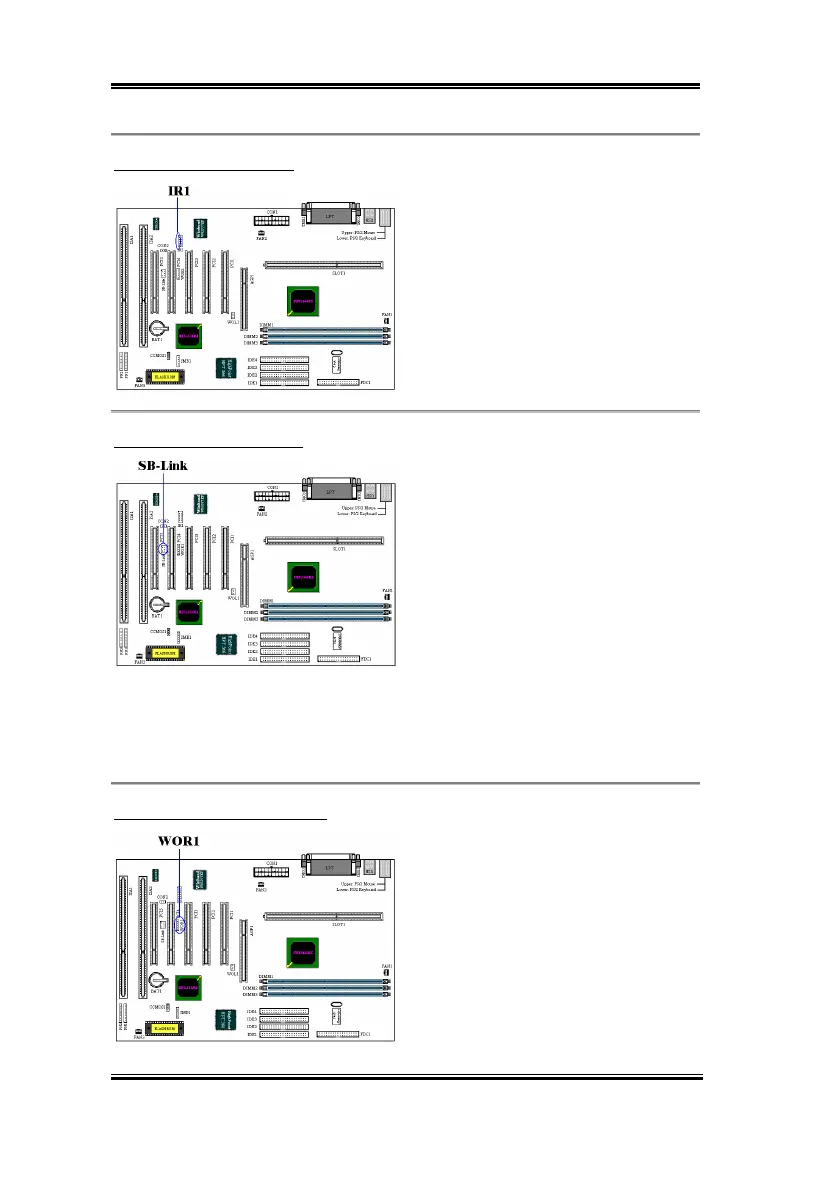

IR1: IR Header (Infrared)
There is a specific orientation for pins 1
through 5, attach the connector from the IR
KIT or IR device to the IR1 header (left row
only) This motherboard supports standard
IR transfer rates.
Note: Watch the pin position and the
orientation
SB-Link: SB-Link
™
Header
If your PCI audio adapter supports this
feature, then you can connect the specific
cable from the audio adapter to this header.
SB-LINK
™
combines Intel's PC-PCI and
"Serialized IRQ" protocols. These
technologies can be found in Intel's TX, LX,
BX and newer core logic chipsets. This
technology provides the DMA and IRQ
signals present in ISA Bus today, but not
available on the PCI Bus. The SB-LINK
™
serves as a bridge between the motherboard and PCI sound card to deliver Sound card for
real-mode DOS games. Check to see if your card supports this.
Note: Watch the pin position and the orientation
WOR1: Wake On Ring Header
If you have an internal modem adapter that
supports this feature, then you can connect
the specific cable from the internal modem
adapter to this header. This feature lets you
wake up your computer via remote control
through the modem.
Note: Watch the pin position and the
orientation
