Abit KD7-B - Page 43

Hardware Setup 2-19

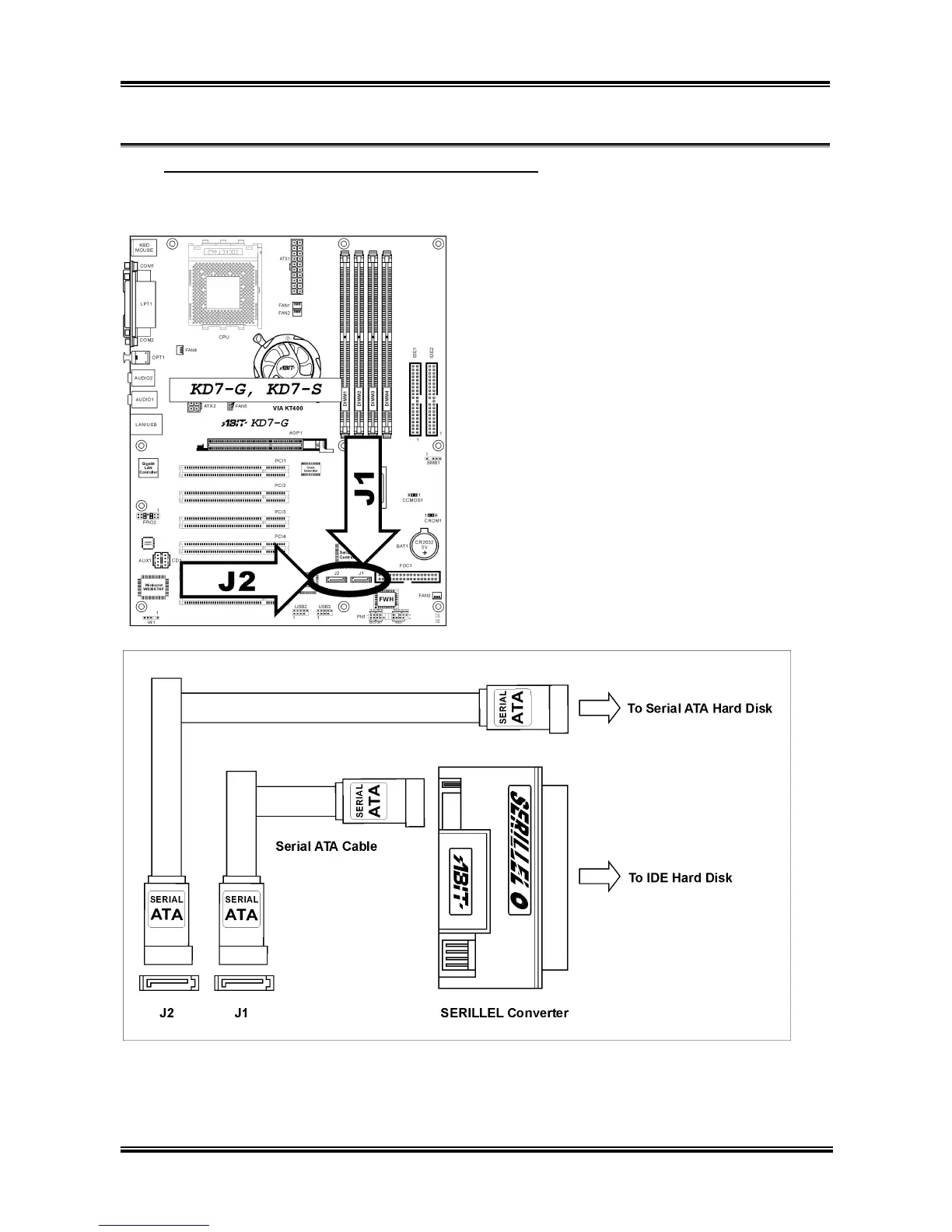

(15). J1/J2: Serial ATA Connector (For KD7-G & KD7-S)
These two connectors are provided to attach one serial ATA device at each channel through Serial ATA
cable. It is also possible to connect legacy IDE hard disk through an optional SERILLEL Converter.
User’s Manual
