2-20 Chapter 2

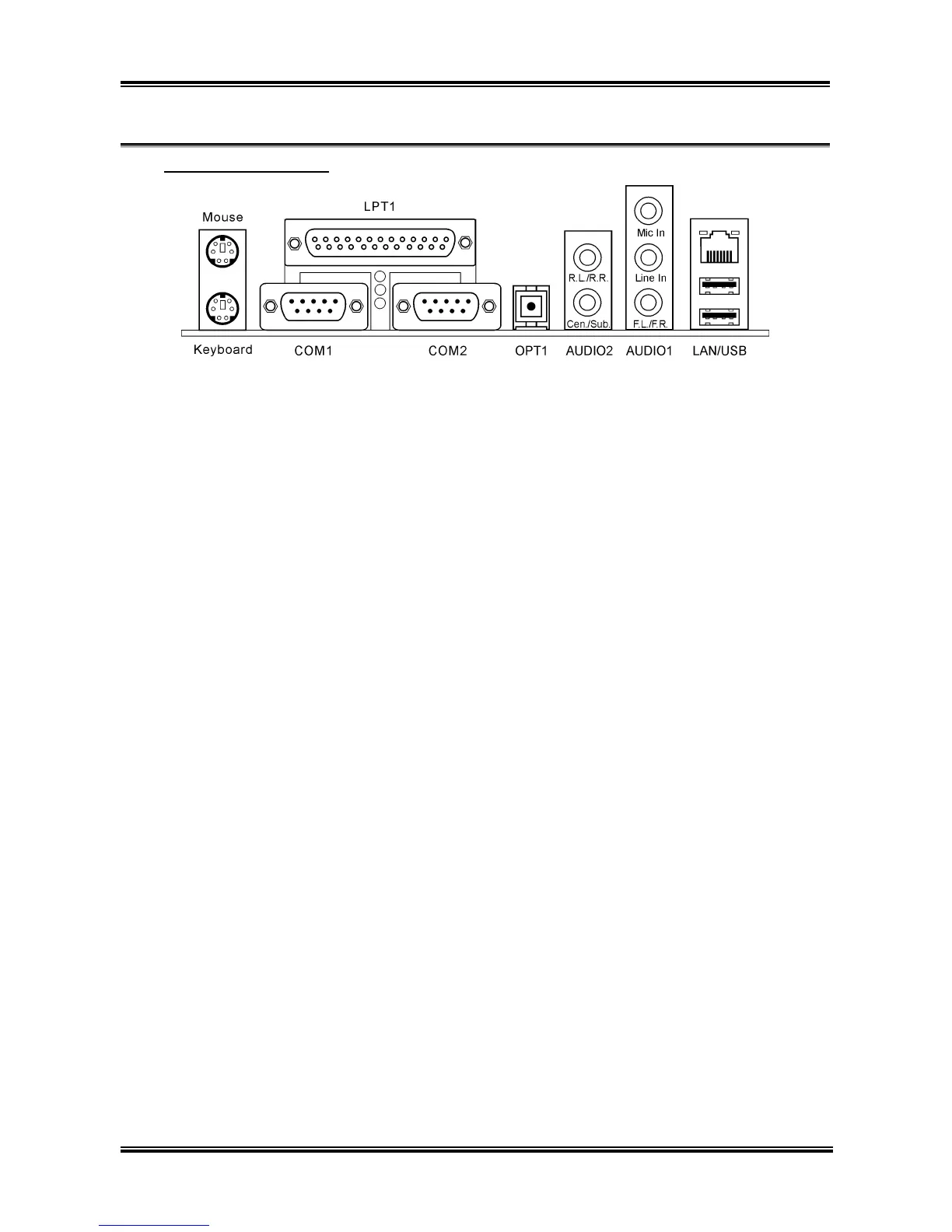

(16). Back Panel Connectors
• Mouse
Connects to PS/2 mouse.
• Keyboard
Connects to PS/2 keyboard.
• LPT1
Connects to printer or other devices that support this communication protocol.
• COM1/COM2
This motherboard provides two COM ports to connect external modem, mouse or other devices that
support this communication protocol.
• OPT1
This connector provides an S/PDIF out connection through optical fiber to digital multimedia
devices.
• AUDIO2
R.L./R.R. (Rear Left / Rear Right): Connects to the rear left and rear right channel in the 5.1
channel audio system.
Cen./Sub. (Center / Subwoofer): Connects to the center and subwoofer channel in the 5.1 channel
audio system.
• AUDIO1
Mic In: Connects to the plug from external microphone.
Line In: Connects to the line out from external audio sources.
F.L./F.R. (Front Left / Front Right): Connects to the front left and front right channel in the
5.1-channel or regular 2-channel audio system.
• LAN
Connects to Local Area Network.
• USB
Connects to USB devices such as scanner, digital speakers, monitor, mouse, keyboard, hub, digital
camera, joystick etc.
KD7 Series
