EN 10 Maintenance

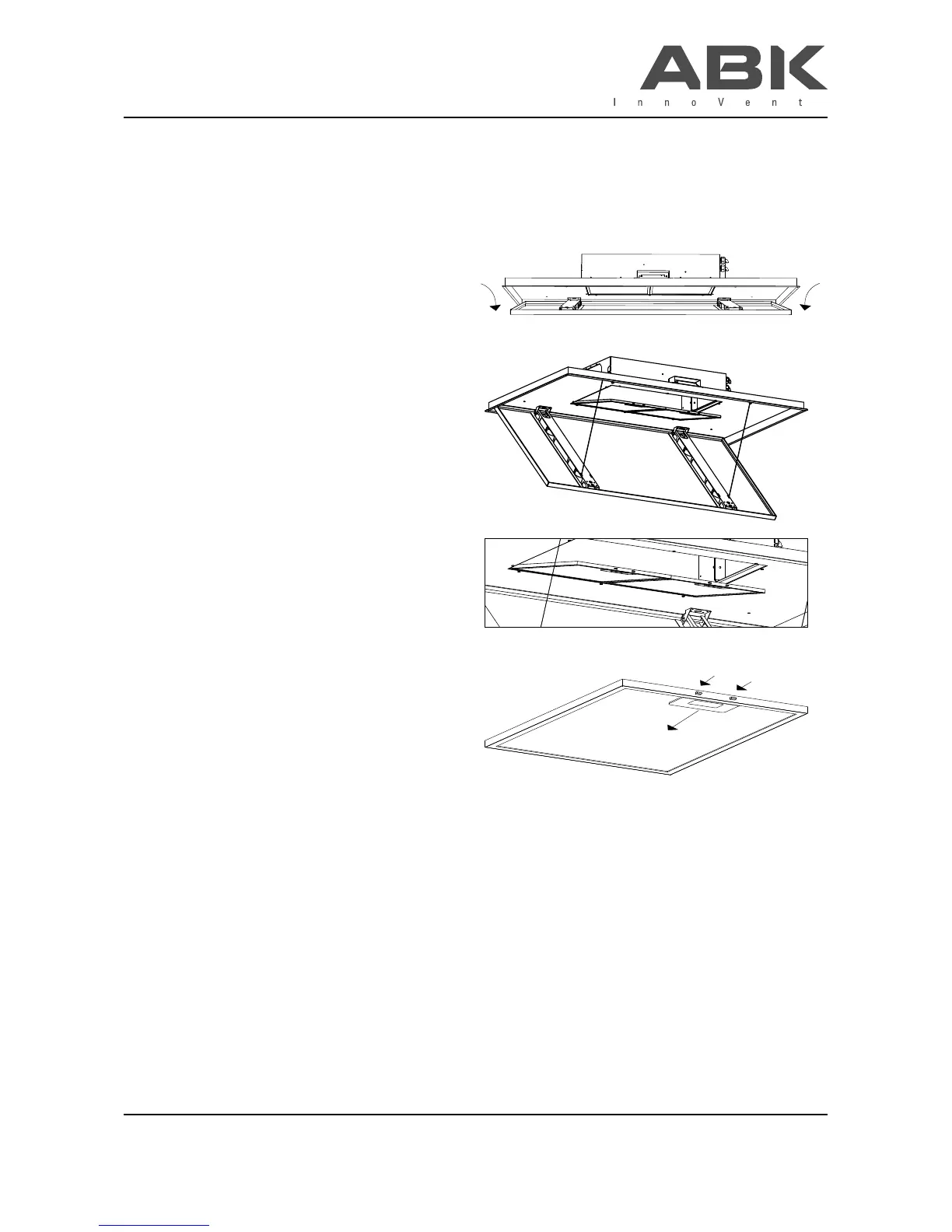

5.1 Opening the perimeter 5.2.1 Taking out the filters
extraction panel magnetic filter
Before you can take out the filters, you The grease filters may only be removed,
must open the perimeter extraction after the extractor has been switched off
panel(s).After that you can take out the completely for at least 2 minutes, because
grease filters. of the running out of the motor.
The panel can be pulled loose on the front The filter can be tilted out of the extractor
side. Place you fingers behind the panel with the handle bar. Prevent the filter from
and push it down with your thumbs on the falling and causing damages.
out most flange or edge. Attention!
Because of the applied lock, the panel will If the grease filter with magnetic tape is
only open after using a substantial equipped with an optional charcoal filter,
pressure. the combination is locked with a
removable safety chain.
The filters may be equipped with an extra
air guiding steel plate for a more efficient
extraction. For a proper functioning of the
extractor, these plates have to be replaced
in the same position.
Cleaning the filters; see Chapter 5.3
Cleaning the filters. Clean the contact
surface of the magnetic tape before
replacing the filters.
Fit the safety chains. and replace the
filters.
Chapter 5
EN 11 Maintenance
5.2 Taking out the filters
click filter
The grease filters may only be removed,
after the extractor has been switched off
completely for at least 2 minutes, because
of the running out of the motor.
The filter can be taken out by the handle
bar. Prevent the filter from falling and
causing damages.
If the magnetic filter is equipped with an
optional charcoal filter, this combination is
locked by a removable chain. This only
applies for ABK extractors with
390x270mm filters which you can read in
the description in the brochure.
Filters can be fitted with a restriction plate
for a more efficient extraction. Make sure
you replace the filters in the same position
in order to get a proper functioning of the
extractor.
Clean the filters, see 5.3 Cleaning the
filters.Before replacing the filters, clean
the contact surface of the magnetic tape.
Fit the lock chains.
Replace the filters.
